NSN 5930-01-162-3677 C3686604, C368664, C36866-4
Product Details | THERMOSTATIC SWITCH
5930-01-162-3677 A switch that is actuated by changes in ambient temperature. Excludes CIRCUIT BREAKER; CONTROL, TEMPERATURE (as modified); FUSE (as modified); PROTECTOR, THERMAL-OVERLOAD, ELECTRICAL MOTOR; RELAY, THERMAL; and THERMOSTAT, FLOW CONTROL. See also CONTROL, TEMPERATURE (as modified) and REGULATOR, TEMPERATURE (as modified).
Part Alternates: C3686604, C368664, C36866-4, 20640L29, 37T21, 5930-01-162-3677, 01-162-3677, 5930011623677, 011623677
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 SEP 1983 | 01-162-3677 | 00451 ( SWITCH, THERMOSTATIC ) |

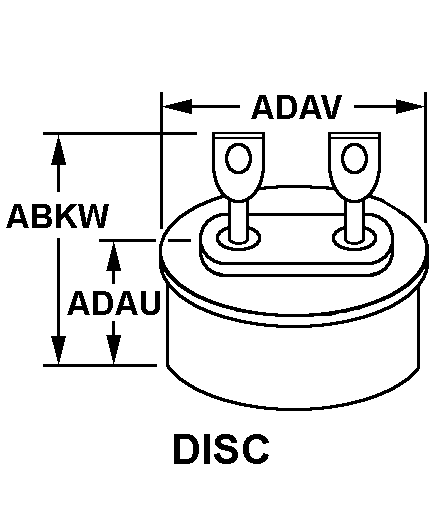

Drawings & Photos | NSN 5930-01-162-3677
Demand History | NSN 5930-01-162-3677
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-162-3677 | 2015-11-314 | 1 | DIBBS |
| 5930-01-162-3677 | 2015-10-300 | 1 | DIBBS |
Cross Reference | NSN 5930-01-162-3677
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20640L29 | 14859 | TEXAS INSTRUMENTS INC CONTROL PRODUCTS DIV |
| 20640L29 | 82647 | SENSATA TECHNOLOGIES, INC DIV SENSATA ATTLEBORO |
| 37T21 | 81439 | THERM-O-DISC INCORPORATED |
| C36866-4 | 96325 | AMANA REFRIGERATION INC SUB OF RAYTHEON CO |
| C3686604 | 96325 | AMANA REFRIGERATION INC SUB OF RAYTHEON CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-162-3677
Related Products | NSN 5930-01-162-3677
Technical Data | NSN 5930-01-162-3677
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 59 DISC |
| OVERALL HEIGHT | 1.156 INCHES NOMINAL |
| BODY HEIGHT | 0.677 INCHES NOMINAL |
| OVERALL DIAMETER | 1.061 INCHES NOMINAL |
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY CLOSED, MOMENTARY ACTION |
| CONTACT ACTION STIMULUS | INCREASE |
| CONTACT ADJUSTABILITY | ACTUATION POINT NOT ADJUSTABLE AND DEACTUATION POINT NOT ADJUSTABLE |
| CONTACT STIMULUS RATING | 62.00 ACTUATION POINT NOMINAL DEGREES FAHRENHEIT AND 22.00 DEACTUATION POINT NOMINAL DEGREES FAHRENHEIT |
| CONTACT VOLTAGE RATING IN VOLTS | 120.0 AC AT SEA LEVEL FIRST VOLTAGE 240.0 AC AT SEA LEVEL SECOND VOLTAGE |
| CONTACT LOAD CURRENT RATING | 10.0 AMPERES RESISTIVE LOAD AND 5.8 AMPERES INDUCTIVE LOAD FIRST VOLTAGE 5.0 AMPERES RESISTIVE LOAD AND 2.9 AMPERES INDUCTIVE LOAD SECOND VOLTAGE |
| OPERATING TEMP RATING | -10.0 DEG FAHRENHEIT MINIMUM AND 220.0 DEG FAHRENHEIT MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GAS OR LIQUID |
| TEMP SENSING ELEMENT TYPE | INTERNAL SENSOR |
| TERMINAL TYPE | WIRE LEAD |
| MOUNTING METHOD | BRACKET AND SLOT |
| MOUNTING SLOT WIDTH | 0.125 INCHES NOMINAL |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.375 INCHES NOMINAL |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| SPECIAL FEATURES | WIRE LEAD TERMINALS 8.000 IN. LG |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | HUMIDITY RESISTANT AND VIBRATION RESISTANT |
