NSN 5930-01-112-8494 05116776, 05-116776, 2606XLP5116776
Product Details | ROTARY SWITCH SECTION
5930-01-112-8494 An item consisting of electrical contacts mounted on an insulated plate which together form a section of a switch or relay. It includes both rotor and stator but does not include drive or actuating mechanism.
Part Alternates: 05116776, 05-116776, 2606XLP5116776, 260-6XLP-5-116776, 42433411, 4-2433-411, 5116776, 5-116776, 5930-01-112-8494, 01-112-8494, 5930011128494, 011128494
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAY 1981 | 01-112-8494 | 15315 ( SWITCH SECTION, ROTARY ) |

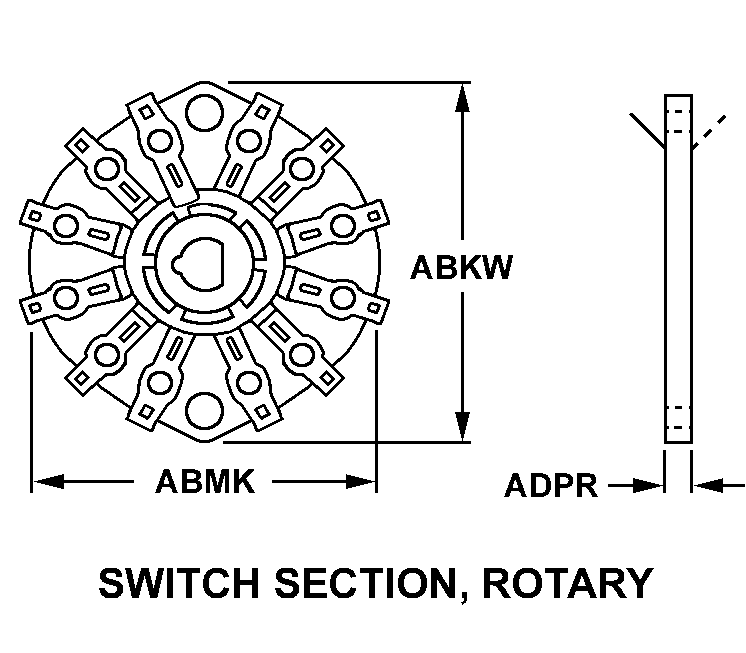

Drawings & Photos | NSN 5930-01-112-8494
Cross Reference | NSN 5930-01-112-8494
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 05-116776 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| 260-6XLP-5-116776 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
| 4-2433-411 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| 5-116776 | 55026 | SIMPSON ELECTRIC COMPANY DBA (SUB OF LAC DU FLAMBEAU BAND OF |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-112-8494
Related Products | NSN 5930-01-112-8494
Technical Data | NSN 5930-01-112-8494
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 22 SWITCH SECTION, ROTARY |
| OVERALL HEIGHT | 1.531 INCHES NOMINAL |
| OVERALL WIDTH | 1.375 INCHES NOMINAL |
| BODY THICKNESS | 0.062 INCHES NOMINAL |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP NONSYMMETRICAL |
| CONTACT SWITCHING ACTION | BREAKS BEFORE MAKES SINGLE SECTION FRONT BREAKS BEFORE MAKES SINGLE SECTION REAR |
| CONTACT VOLTAGE RATING IN VOLTS | 125.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 500.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 1.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| TERMINAL TYPE | PRINTED CIRCUIT |
| MOUNTING METHOD | STRUT AND UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.115 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 1.250 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III OPERATING TEMP RANGE | -65.0 TO 150.0 DEG FAHRENHEIT |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | CONTACTS AND ROTOR BLADE SURFACES SILVER |
| III END ITEM IDENTIFICATION | MULTI-HULL |
Restrictions/Controls & Freight Information | NSN 5930-01-112-8494
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
