NSN 5930-01-112-8500 12294649-5, 01-112-8500, 122946495
Product Details | SENSITIVE SWITCH
5930-01-112-8500 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: 12294649-5, 5930-01-112-8500, 01-112-8500, 5930011128500, 122946495, 011128500
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 MAY 1981 | 01-112-8500 | 00399 ( SWITCH, SENSITIVE ) |

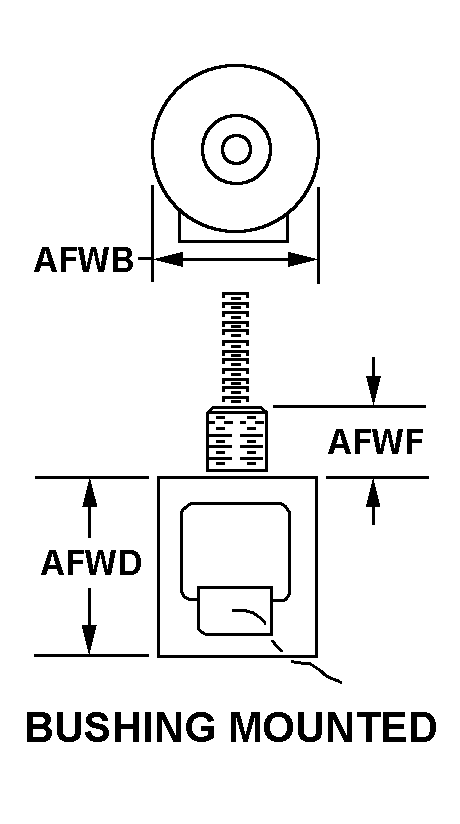

Drawings & Photos | NSN 5930-01-112-8500
Demand History | NSN 5930-01-112-8500
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-112-8500 | 2016-07-187 | 3 | DIBBS |
| 5930-01-112-8500 | 2016-06-168 | 3 | DIBBS |
Cross Reference | NSN 5930-01-112-8500
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12294649-5 | 0SXW4 | TRACAR INDUSTRIES CORPORATION |
| 12294649-5 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12294649-5 | 1JMD3 | CAMARILLO DEFENSE LLC |
| 12294649-5 | 55097 | SHILOH INDUSTRIES, INC. |
| 12294649-5 | 67MH2 | T-1 SALES AND ENGINEERING CORPORATION |
| 12294649-5 | 80212 | BAE SYSTEMS LAND & ARMAMENTS L.P. |
