Product Details | INTERLOCK SWITCH
5930-01-025-7190 An item which completes or interrupts the connections in one or more electrical circuits. Its electrical elements consist of separate parts designed to be mounted respectively on a frame and a door, drawer, or cover, It acts as a safety device to open a circuit when the door or drawer is opened or the cover removed. It does not include devices of which a complete switch with an actuator is one of the parts; for such devices, use SWITCH (as modified). Excludes SWITCH, MERCURY; and SWITCH, REED.
Part Alternates: SS12ET1020Y3, SS12ET10-20Y3, 5930-01-025-7190, 01-025-7190, 5930010257190, 010257190
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 AUG 1976 | 01-025-7190 | 00403 ( SWITCH, INTERLOCK ) |
Drawings & Photos | NSN 5930-01-025-7190
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-01-025-7190
Related Products | NSN 5930-01-025-7190
Technical Data | NSN 5930-01-025-7190
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 DC AND 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 250.000 MILLIAMPERES RESISTIVE DC AND 15.000 AMPERES RESISTIVE AC |

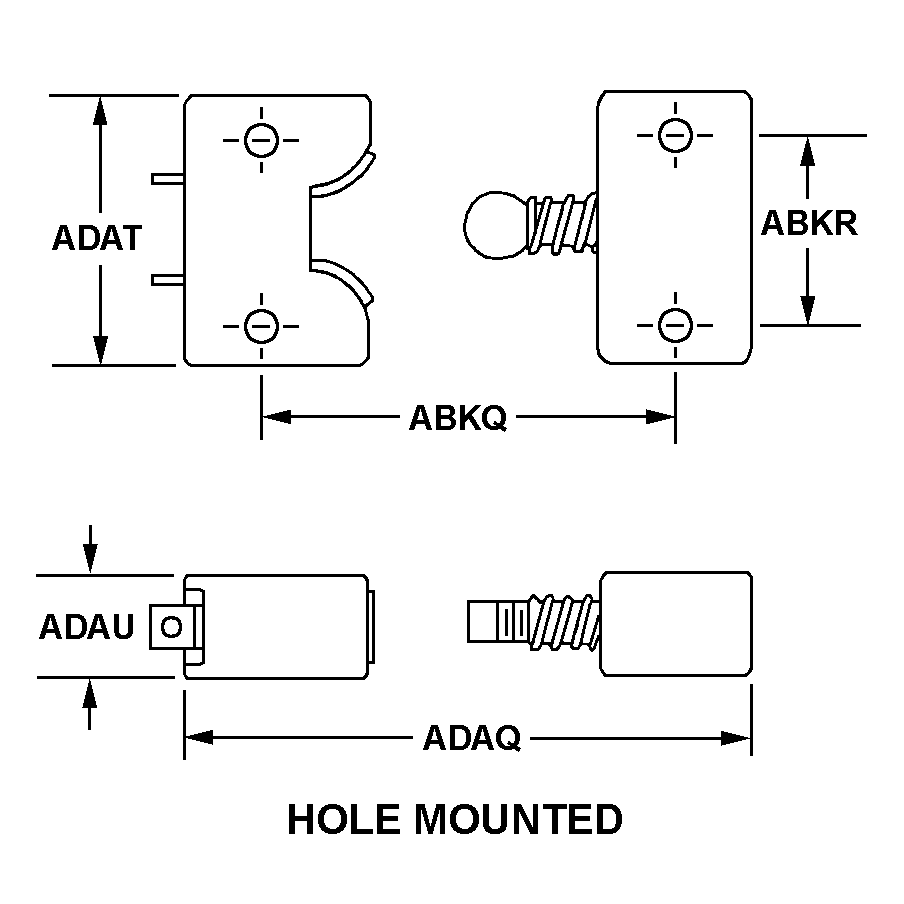

| BODY STYLE | 1E HOLE MOUNTED |
