NSN 5930-00-850-5202 335C689H01, 4AC24, 00-850-5202
Product Details | INTERLOCK SWITCH
5930-00-850-5202 An item which completes or interrupts the connections in one or more electrical circuits. Its electrical elements consist of separate parts designed to be mounted respectively on a frame and a door, drawer, or cover, It acts as a safety device to open a circuit when the door or drawer is opened or the cover removed. It does not include devices of which a complete switch with an actuator is one of the parts; for such devices, use SWITCH (as modified). Excludes SWITCH, MERCURY; and SWITCH, REED.
Part Alternates: 335C689H01, 4AC24, 5930-00-850-5202, 00-850-5202, 5930008505202, 008505202
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-850-5202 | 00403 ( SWITCH, INTERLOCK ) |

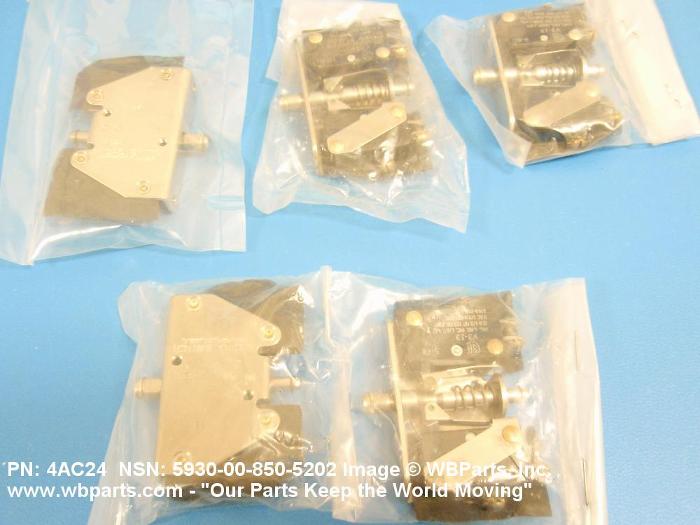

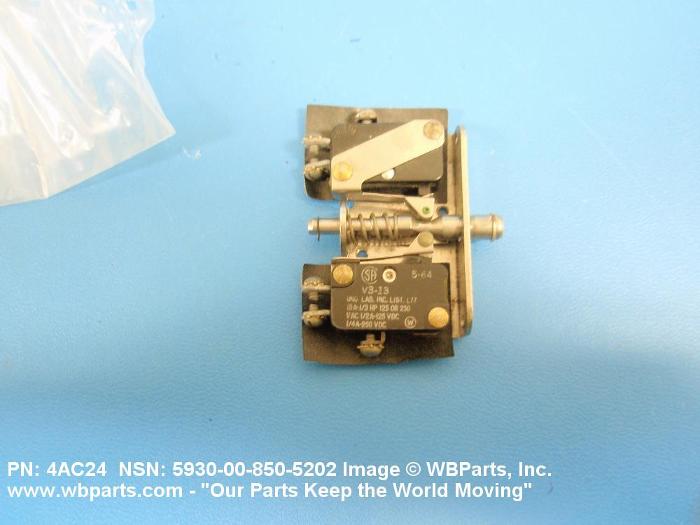

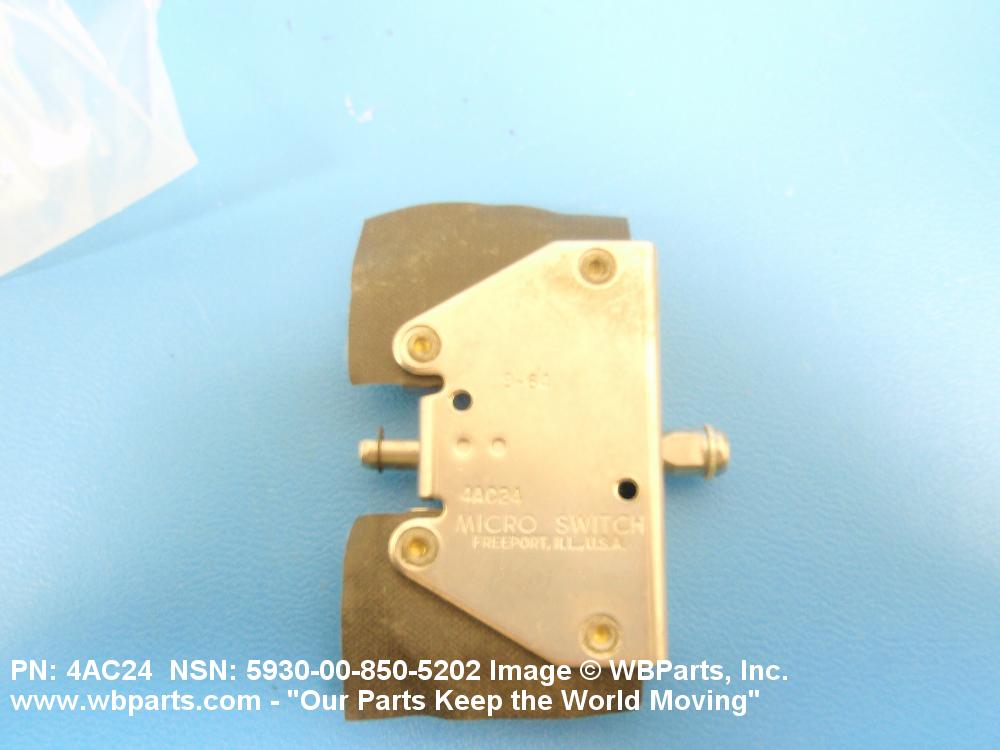

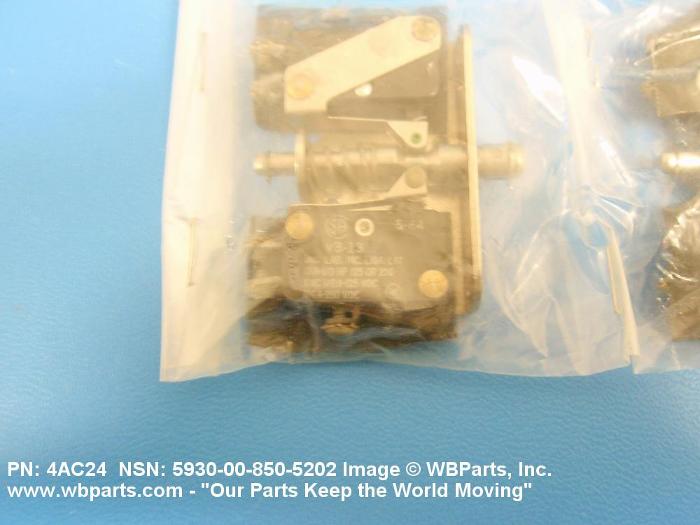

Drawings & Photos | NSN 5930-00-850-5202
Demand History | NSN 5930-00-850-5202
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-850-5202 | 2022-10-290 | 2 | United States |
| 5930-00-850-5202 | 2022-10-283 | 5 | PK |
| 335C689H01 | 2012-04-117 | 25 | United States |
| 335C689H01 | 2008-12-365 | 5 | United States |
| 5930-00-850-5202 | 2008-10-281 | 5 | US |
| 335C689H01 | 2006-07-210 | 5 | Pakistan |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-00-850-5202
Technical Data | NSN 5930-00-850-5202
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 2 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 60.000 AMPERES RESISTIVE DC AND 60.000 AMPERES RESISTIVE AC |
| TERMINAL TYPE AND QUANTITY | 6 SCREW |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
Restrictions/Controls & Freight Information | NSN 5930-00-850-5202
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
