NSN 5930-00-999-4753 BL5577, JKN00162151, 04050452039697
Product Details | SENSITIVE SWITCH
5930-00-999-4753 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Part Alternates: BL5577, JKN00162151, 04050452039697 , 41SM1T, 41SM1-T, 5267520001, 5267520-001, 5930-00-999-4753, 00-999-4753, 5930009994753, 009994753
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 FEB 1966 | 00-999-4753 | 00399 ( SWITCH, SENSITIVE ) |

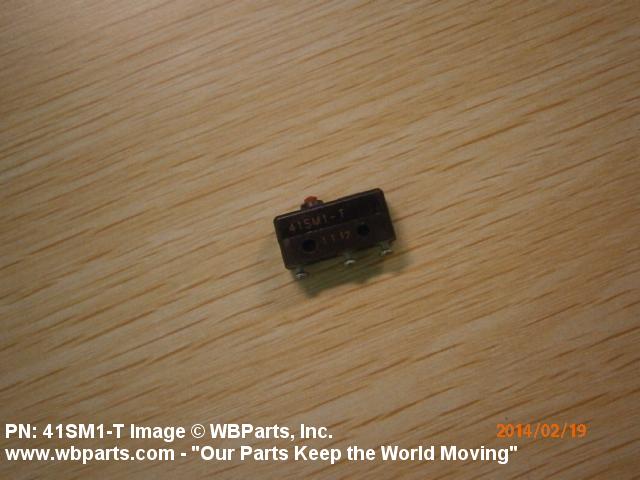

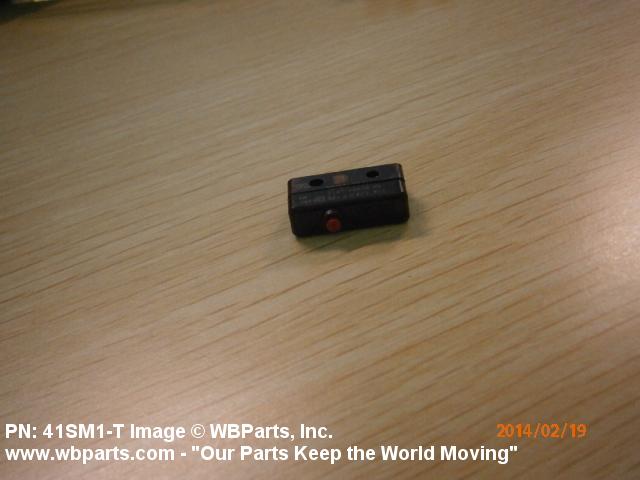

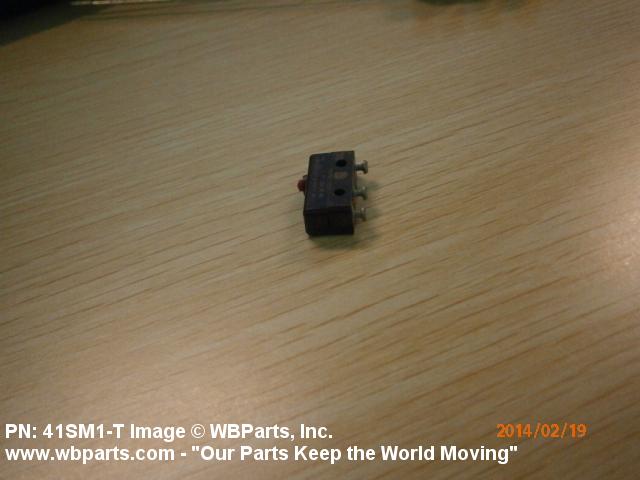

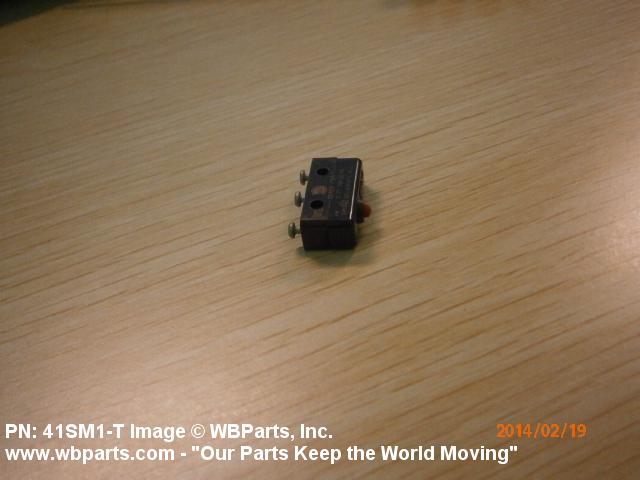

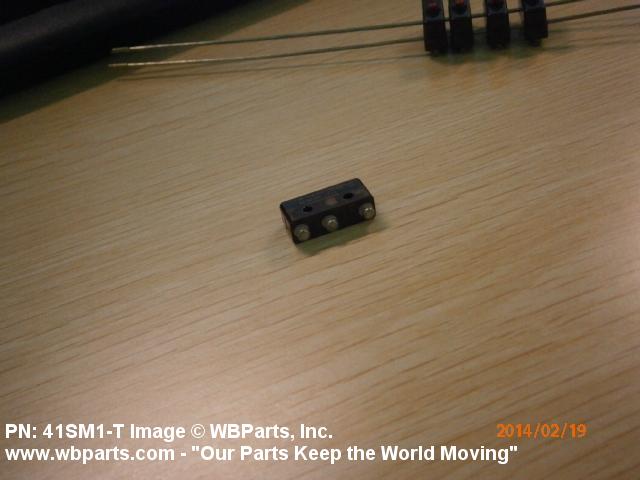

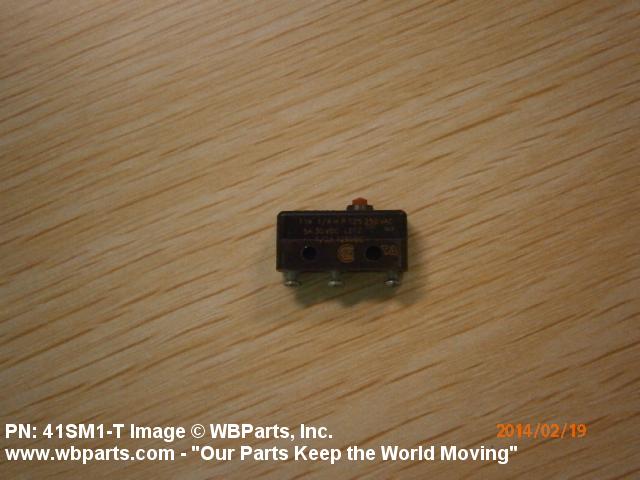

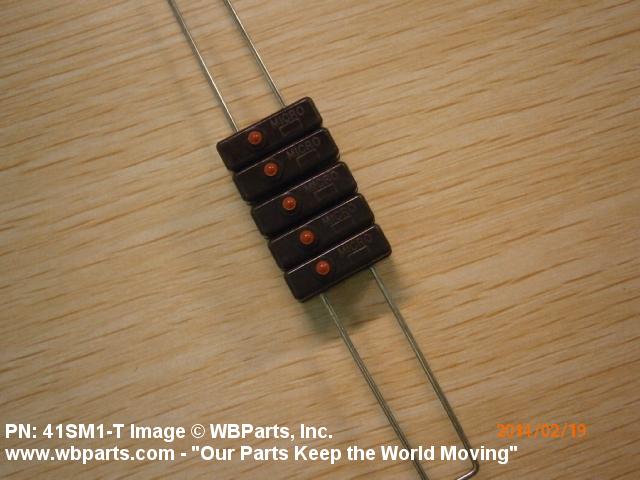

Drawings & Photos | NSN 5930-00-999-4753
Demand History | NSN 5930-00-999-4753
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 41SM1-T | 2024-05-123 | 191 | DIBBS |
| BL-5577 | 2024-05-123 | 191 | DIBBS |
| 5930-00-999-4753 | 2023-01-23 | 350 | AE |
| 5930-00-999-4753 | 2023-01-23 | 350 | AE |
| 41SM1-T | 2022-06-153 | 155 | DIBBS |
| BL-5577 | 2022-06-153 | 155 | DIBBS |
| 41SM1-T | 2021-08-224 | 113 | DIBBS |
| BL-5577 | 2021-08-224 | 113 | DIBBS |
| 5930-00-999-4753 | 2019-05-135 | 2 | Malaysia |
| BL5577 | 2017-10-298 | 15 | Malaysia |
| 5930-00-999-4753 | 2017-10-282 | 15 | Malaysia |
| 5930-00-999-4753 | 2017-10-279 | 15 | Malaysia |
| 5930-00-999-4753 | 2017-09-271 | 15 | Malaysia |
| 5930-00-999-4753 | 2017-07-206 | 1 | Malaysia |
| 5930-00-999-4753 | 2017-07-205 | 3 | Malaysia |
| 5930-00-999-4753 | 2017-07-197 | 212 | DIBBS |
| BL5577 | 2017-04-101 | 7 | Malaysia |
| 5930-00-999-4753 | 2017-04-93 | 7 | MY |
| 5930-00-999-4753 | 2017-03-88 | 7 | Malaysia |
| 5930-00-999-4753 | 2017-01-30 | 7 | Malaysia |
| 5930-00-999-4753 | 2017-01-25 | 7 | Malaysia |
| 5930-00-999-4753 | 2016-12-340 | 263 | DIBBS |
| BL5577 | 2016-10-302 | 7 | Malaysia |
| 5930-00-999-4753 | 2016-08-215 | 3 | Malaysia |
| 5930-00-999-4753 | 2016-08-214 | 3 | Malaysia |
| 5930-00-999-4753 | 2015-05-141 | 2 | Malaysia |
| 5930-00-999-4753 | 2014-10-280 | 10 | IN |
| BL5577 | 2014-01-10 | 10 | Malaysia |
| 5930-00-999-4753 | 2009-05-127 | 1 | US |
Cross Reference | NSN 5930-00-999-4753
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 04050452039697 | C4680 | JK DEFENCE & SECURITY PRODUCTS GMBH DBA JK TECHNISCHE HYGIENE |
| 41SM1-T | 0YDA6 | ARROW ELECTRONICS, INC. DBA ARROW ZEUS ELECTRONICS |
| 41SM1-T | 1KD15 | MPC-G, LLC MICHAEL S. ADKINS GTG PC HOLDINGS, LLC, MPC CORPORATION |
| 41SM1-T | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 41SM1-T | F3767 | SEF INDUSTRIE |
| 41SM1-T | R1120 | SATAIR A/S |
| 5267520-001 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| BL5577 | 08484 | BREEZE-EASTERN CORPORATION |
| JKN00162151 | C4680 | JK DEFENCE & SECURITY PRODUCTS GMBH DBA JK TECHNISCHE HYGIENE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-999-4753
Related Products | NSN 5930-00-999-4753
Technical Data | NSN 5930-00-999-4753
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, DOUBLE THROW, ONE POSITION MOMENTARY SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 10.000 AMPERES RESISTIVE AC |
| BODY STYLE | 23M HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.375 INCHES NOMINAL |

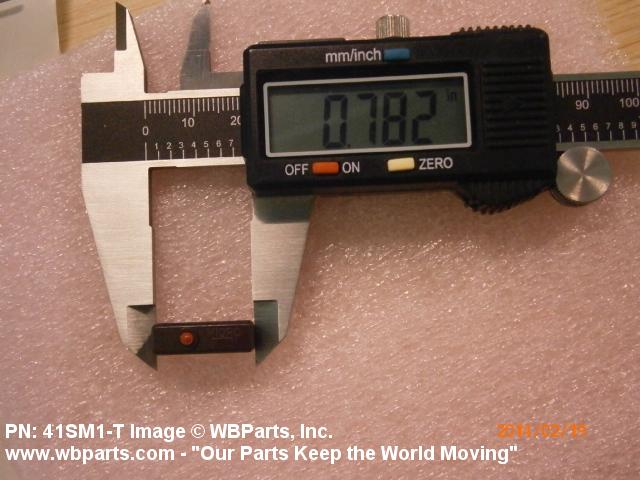

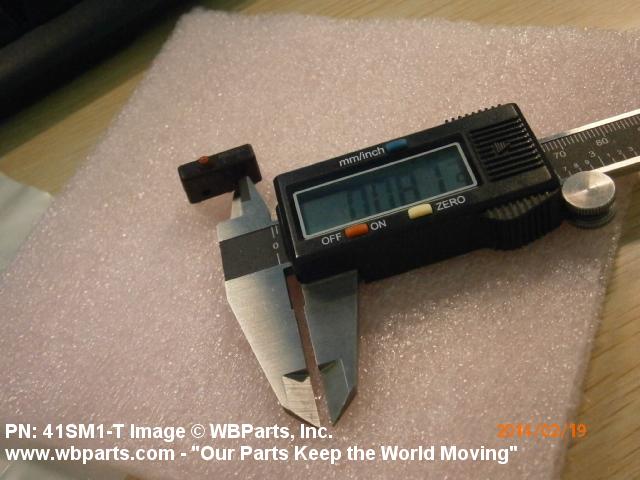

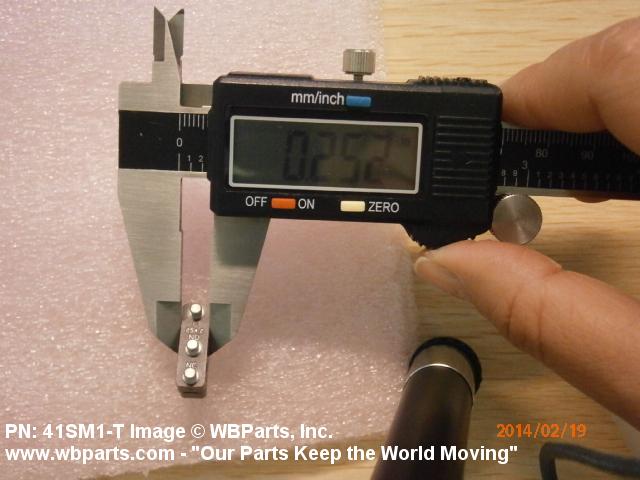

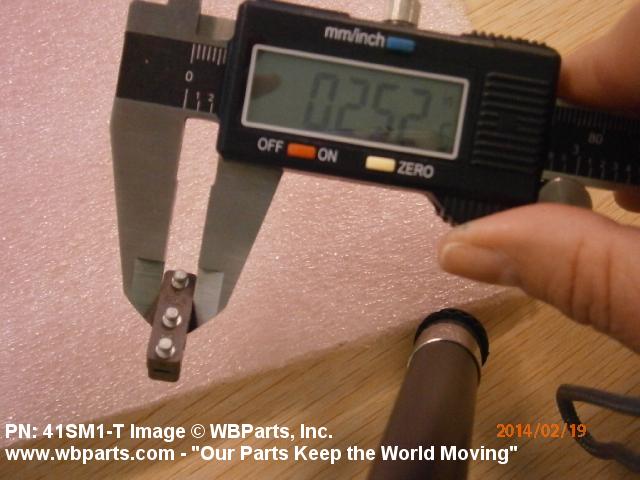

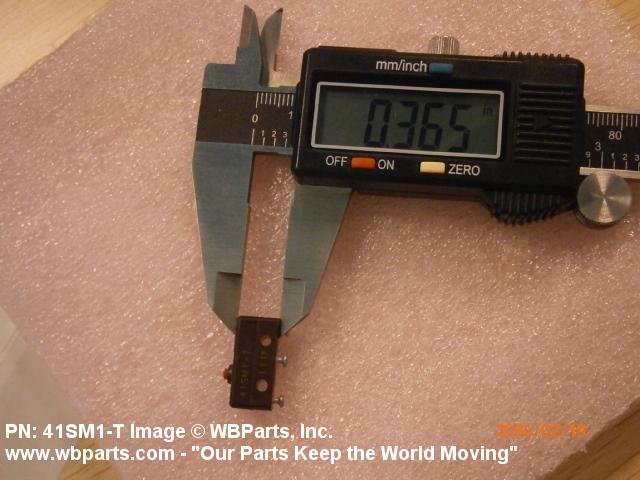

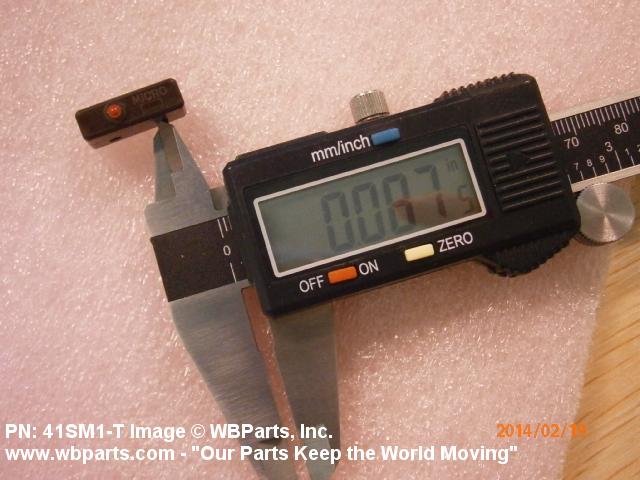

| BODY LENGTH | 0.771 INCHES MINIMUM AND 0.791 INCHES MAXIMUM |
| BODY WIDTH | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| BODY HEIGHT | 0.346 INCHES MINIMUM AND 0.366 INCHES MAXIMUM |
| ACTUATOR STYLE | 2 ROUND |

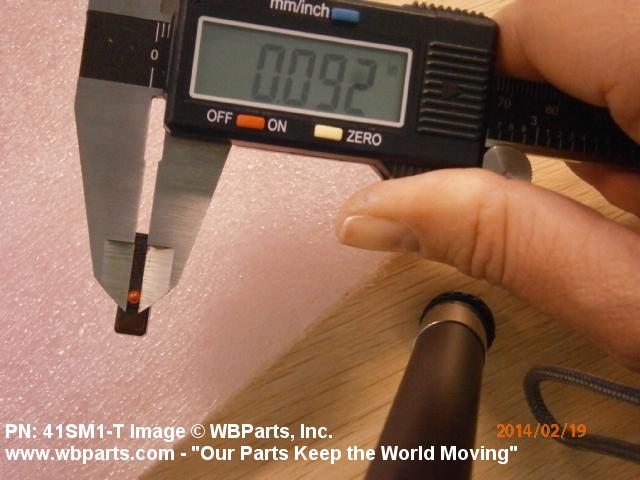

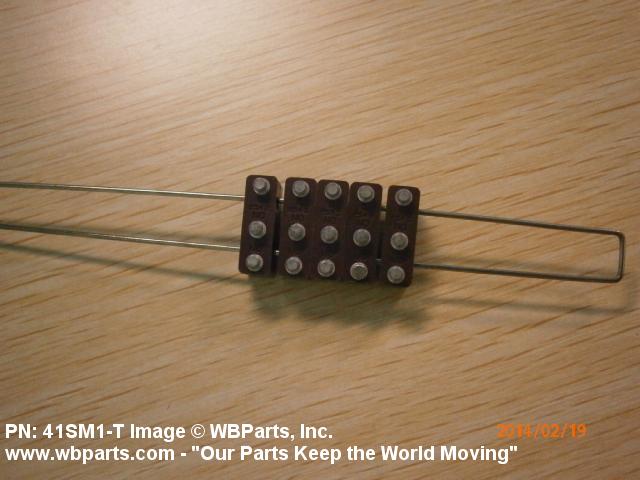

| ACTUATOR DIAMETER | 0.092 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.090 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.366 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TURRET |
| SWITCH ACTUATING FORCE | 5.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 1.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | 0.030 PRETRAVEL INCHES MAXIMUM AND 0.005 OVERTRAVEL INCHES MINIMUM AND 0.004 DIFFERENTIAL INCHES MAXIMUM |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.087 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
