NSN 5930-00-999-4881 631131, 6311-31, 00-999-4881
Product Details | ROTARY SWITCH
5930-00-999-4881 A switch actuated by a definite angular rotation of the switch shaft about its axis. For items having rated actuation travel and pressure characteristics, see SWITCH, SENSITIVE. Excludes RELAY, ROTARY; SWITCH, STEPPING; and SWITCH, TELEPHONE (as modified).
Part Alternates: 631131, 6311-31, 5930-00-999-4881, 00-999-4881, 5930009994881, 009994881
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1966 | 00-999-4881 | 02134 ( SWITCH, ROTARY ) |

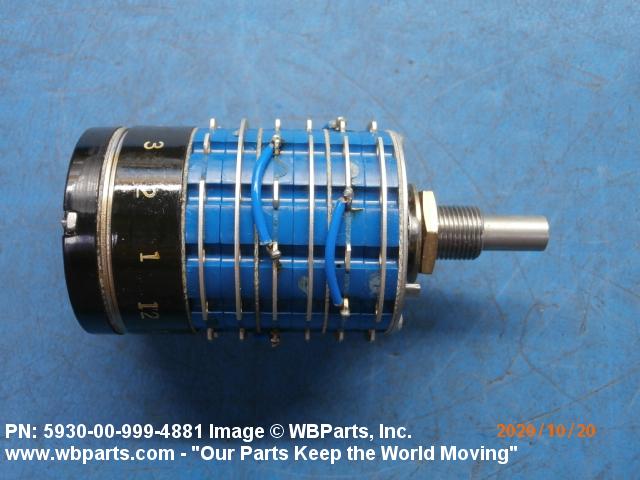

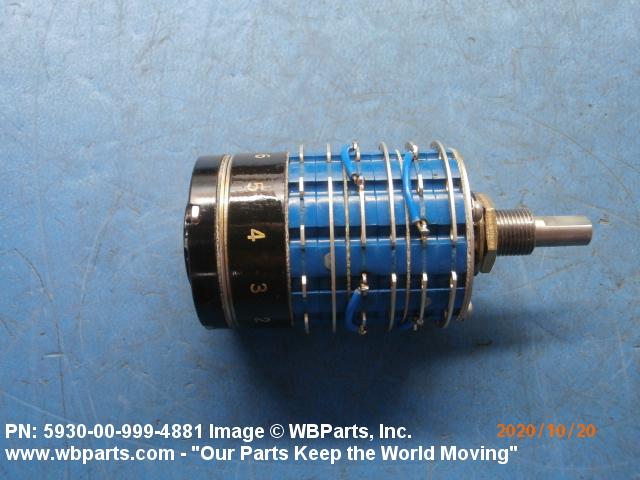

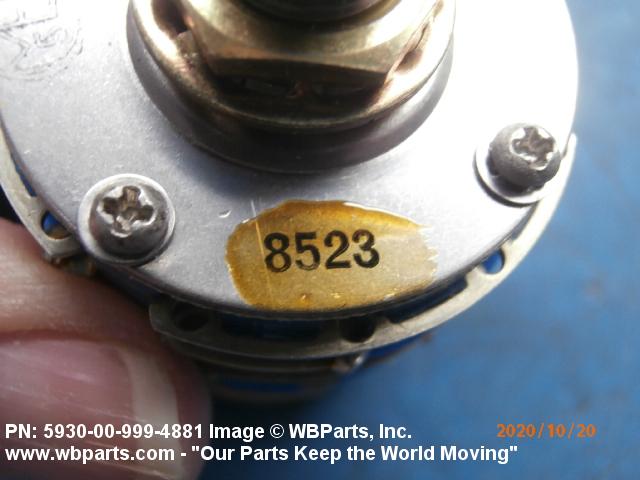

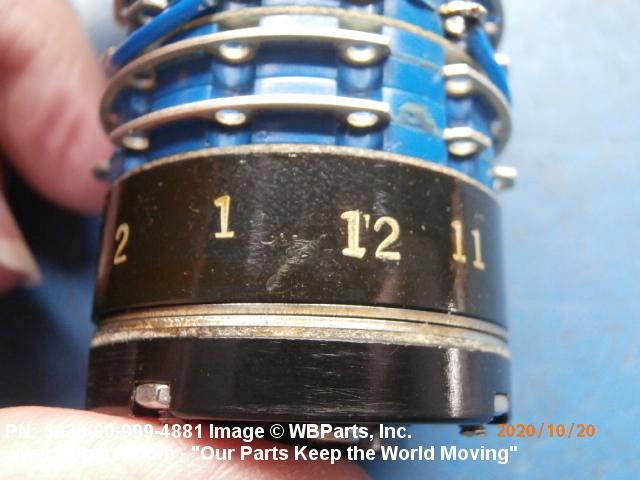

Drawings & Photos | NSN 5930-00-999-4881
Demand History | NSN 5930-00-999-4881
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6311-31 | 2020-09-271 | 10 | DIBBS |
| 5930-00-999-4881 | 2020-08-225 | 1 | Germany |
| 6311-31 | 2020-02-34 | 1 | DIBBS |
| 5930-00-999-4881 | 2014-07-212 | 1 | DIBBS |
| 5930-00-999-4881 | 2013-09-266 | 1 | DIBBS |
| 5930-00-999-4881 | 2012-02-55 | 1 | DIBBS |
| 5930-00-999-4881 | 2010-11-329 | 10 | DIBBS |
| 5930-00-999-4881 | 2010-03-82 | 1 | DIBBS |
| 5930-00-999-4881 | 2009-12-352 | 2 | DIBBS |
| 5930-00-999-4881 | 2009-11-313 | 1 | DIBBS |
| 5930-00-999-4881 | 2009-08-243 | 1 | DIBBS |
| 5930-00-999-4881 | 2009-03-68 | 5 | DIBBS |
| 5930-00-999-4881 | 2008-12-340 | 2 | DIBBS |
| 5930-00-999-4881 | 2008-09-262 | 4 | DIBBS |
| 5930-00-999-4881 | 2008-02-52 | 3 | DIBBS |
| 5930-00-999-4881 | 2007-01-24 | 3 | DIBBS |
| 5930-00-999-4881 | 2006-03-83 | 3 | DIBBS |
Cross Reference | NSN 5930-00-999-4881
| Part Number | Cage Code | Manufacturer |
|---|---|---|

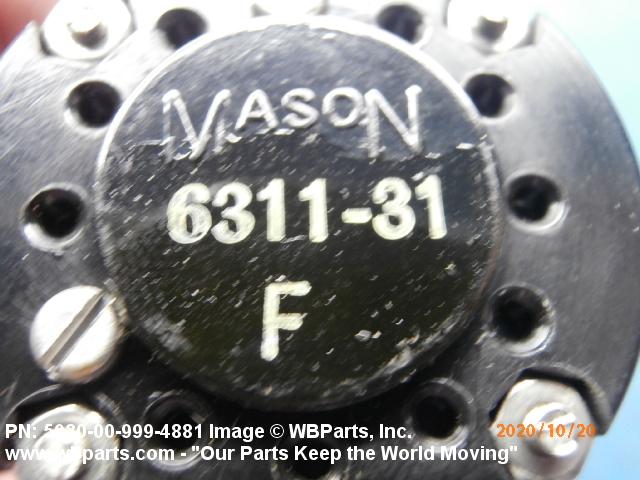

| 6311-31 | 81579 | MASON ELECTRIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-999-4881
Related Products | NSN 5930-00-999-4881
Technical Data | NSN 5930-00-999-4881
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 TAP, CIRCULAR, BUSHING MOUNT |

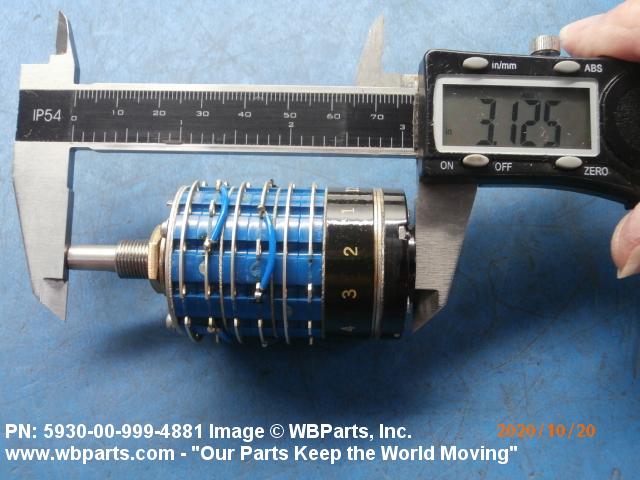

| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| OVERALL DIAMETER | 1.470 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 3 |
| SWITCH CONTACT BASIC DESIGN | NONPILE-UP NONSYMMETRICAL |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 5.0 AMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| SWITCH ACTUATOR MOMENTARY POSITION | COUNTERCLOCKWISE SINGLE ACTUATOR |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 4 SINGLE ACTUATOR |
| SWITCH ACTUATOR POSITIONING INCREMENT | 30.0 DEGREES SINGLE ACTUATOR |
| SWITCH ACTUATOR STOP DEVICE TYPE | ADJUSTABLE STOP SINGLE ACTUATOR |
| SHAFT TYPE | ROUND, FLATTED SINGLE ACTUATOR |
| FIRST FLAT LENGTH | 0.375 INCHES NOMINAL SINGLE ACTUATOR |

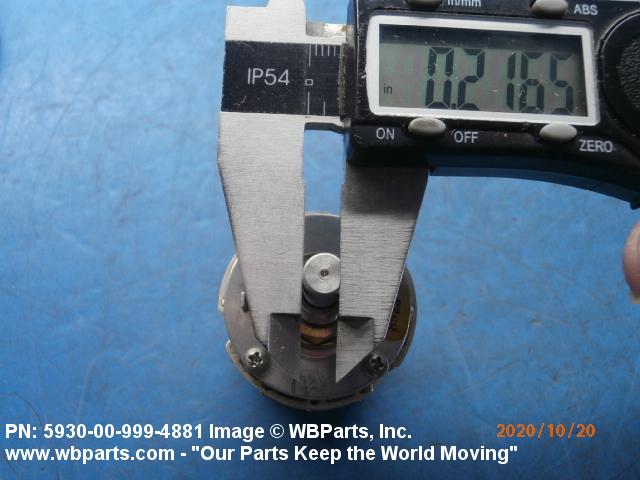

| FLAT HEIGHT | 0.216 INCHES NOMINAL SINGLE ACTUATOR |

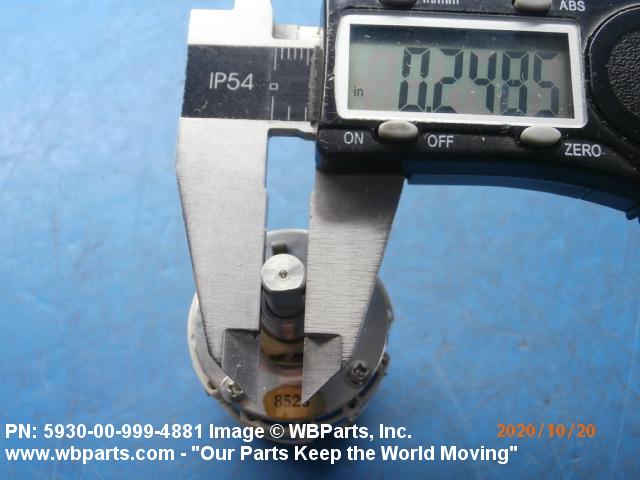

| SHAFT DIAMETER | 0.250 INCHES NOMINAL SINGLE ACTUATOR |

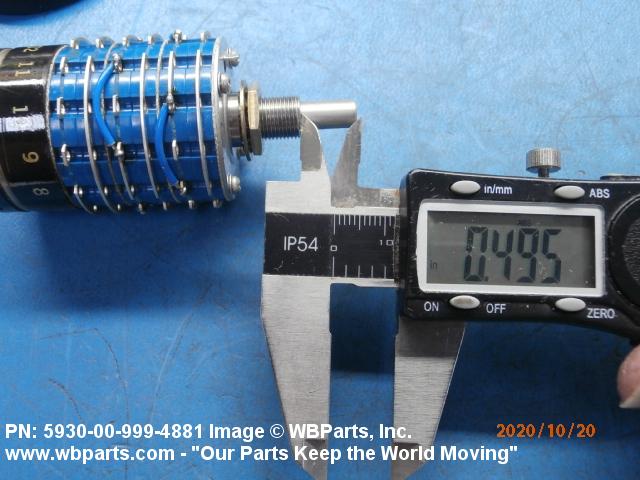

| SHAFT LENGTH | 0.500 INCHES NOMINAL SINGLE ACTUATOR |
| TERMINAL TYPE | TAB, SOLDER LUG |

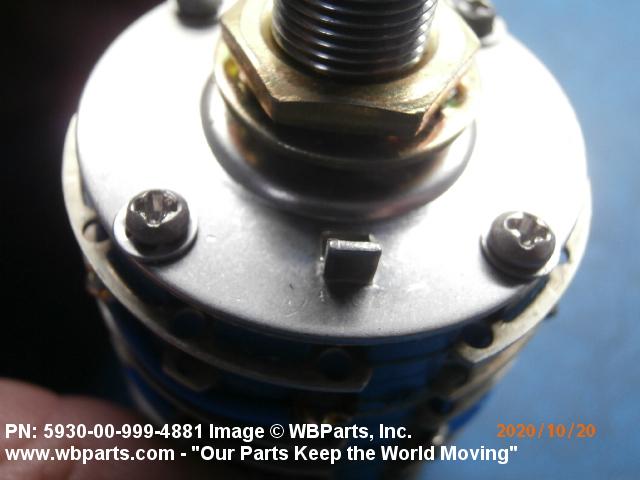

| NONTURN DEVICE TYPE | TAB AT 12:00 O'CLOCK |
| NONTURN DEVICE RADIUS | 0.531 INCHES NOMINAL AT 12:00 O'CLOCK |
| MOUNTING METHOD | THREADED BUSHING SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNEF SINGLE MOUNTING FACILITY |

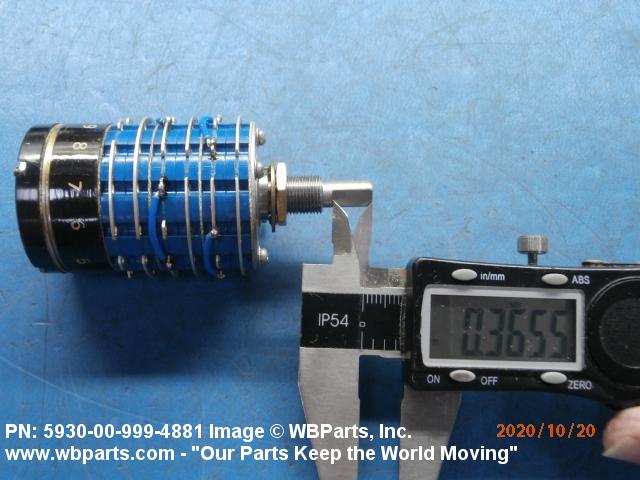

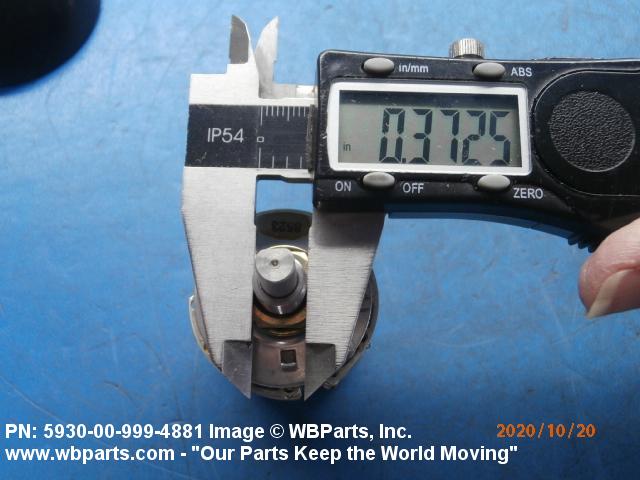

| NOMINAL THREAD SIZE | 0.375 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2A SINGLE MOUNTING FACILITY |
| THREAD LENGTH | 0.500 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | JUMPERS ON TERMINALS |
| III DETENT ROTATIONAL TORQUE RANGE | 5.0 TO 6.5 INCH-POUNDS SINGLE ACTUATOR |
Restrictions/Controls & Freight Information | NSN 5930-00-999-4881
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-999-4881
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
