NSN 5930-00-683-1626 MS2452330, MS24523-30, SC4023
Product Details | TOGGLE SWITCH
5930-00-683-1626 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Part Alternates: MS2452330, MS24523-30, SC4023, MILDTL3950, MIL-DTL-3950, MILS3950, 65246BX, 8500K11SW1BN1000, 21TL16, 21TL1-6, 4620000911, 46200-009-11, 5930-00-683-1626, 00-683-1626, 5930006831626 , 006831626, 644221006
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-683-1626 | 00184 ( SWITCH, TOGGLE ) |

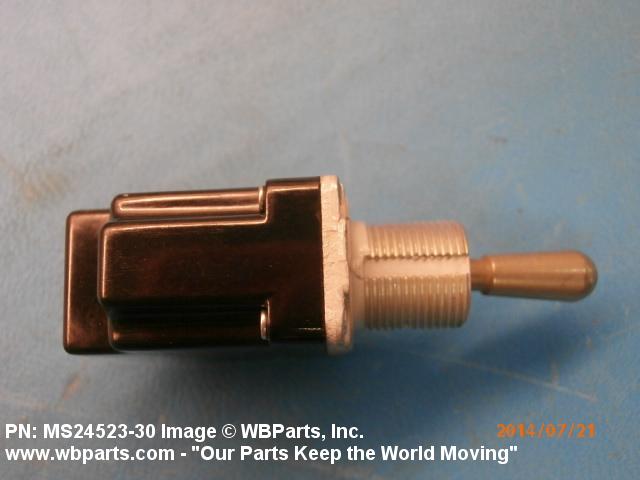

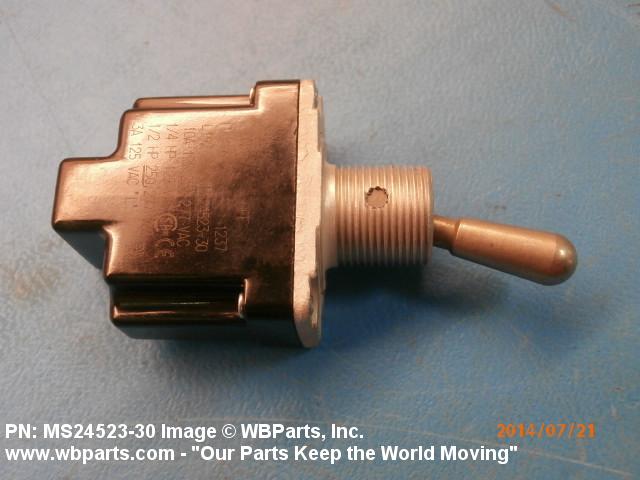

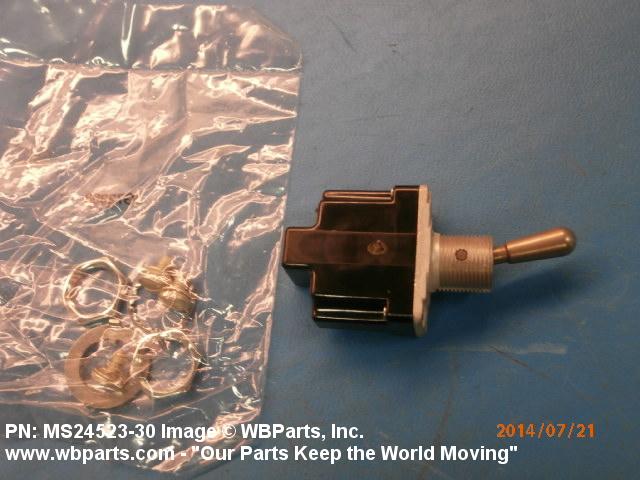

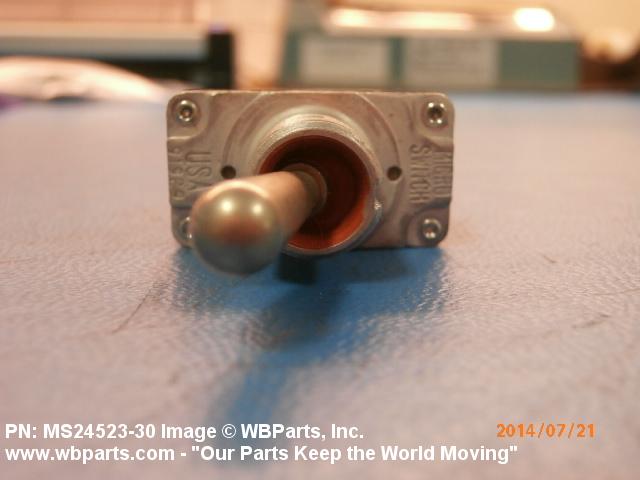

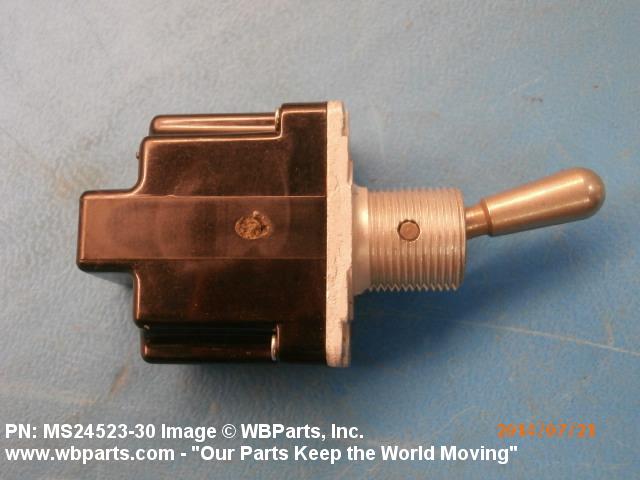

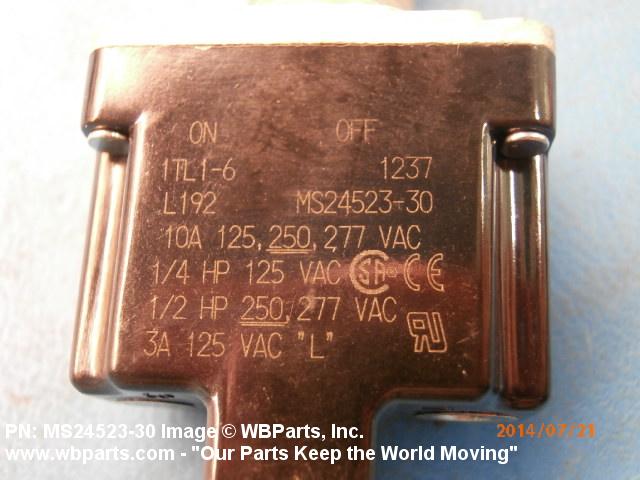

Drawings & Photos | NSN 5930-00-683-1626
Demand History | NSN 5930-00-683-1626
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-00-683-1626 | 2024-08-242 | 325 | DIBBS |
| 5930-00-683-1626 | 2023-07-202 | 2 | US |
| 5930-00-683-1626 | 2022-06-159 | 299 | DIBBS |
| 5930-00-683-1626 | 2019-12-345 | 2 | US |
| MS2452330 | 2019-03-64 | 2 | United States |
| MS2452330 | 2016-03-82 | 2 | United States |
| MS24523-30 | 2014-10-275 | 5 | US |
| MS2452330 | 2014-07-196 | 2 | United States |
| MILS3950 | 2014-02-56 | 4 | Canada |
| 5930-00-683-1626 | 2014-01-22 | 1 | US |
| MILS3950 | 2013-01-11 | 48 | US |
| 5930-00-683-1626 | 2012-09-255 | 6 | US |
| 5930-00-683-1626 | 2012-04-97 | 15 | DIBBS |
| 5930-00-683-1626 | 2012-02-39 | 15 | DIBBS |
| 5930-00-683-1626 | 2010-05-141 | 276 | DIBBS |
| 5930-00-683-1626 | 2009-07-190 | 110 | United States |
| 5930-00-683-1626 | 2008-12-337 | 50 | us |
| MS2452330 | 2008-07-183 | 71 | United States |
| 5930-00-683-1626 | 2007-12-352 | 2678 | DIBBS |
| 5930-00-683-1626 | 2007-10-304 | 1287 | DIBBS |
| 5930-00-683-1626 | 2007-07-207 | 3468 | DIBBS |
| 5930-00-683-1626 | 2007-06-169 | 2400 | DIBBS |
| 5930-00-683-1626 | 2007-06-164 | 3 | US |
Cross Reference | NSN 5930-00-683-1626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21TL1-6 | 91929 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 46200-009-11 | 31245 | TEREX USA, LLC DBA CEDARAPIDS |
| 5930006831626 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 644221006 | 55901 | DARE ELECTRONICS, INC. |
| 65246BX | 45152 | OSHKOSH CORPORATION |
| 8500K11SW1BN1000 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| MIL-DTL-3950 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS3950 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24523-30 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| MS24523-30 | 6M266 | WESCO AIRCRAFT HARDWARE CORP. DBA ELECTRONIC PRODUCTS GROUP |
| MS24523-30 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24523-30 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| SC4023 | 32707 | TELAIR INTERNATIONAL INCORPORATED DBA NORDISK AVIATION PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-683-1626
Related Products | NSN 5930-00-683-1626
Technical Data | NSN 5930-00-683-1626
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 15.000 AMPERES RESISTIVE DC AND 10.000 AMPERES INDUCTIVE DC AND 4.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 7.000 AMPERES INDUCTIVE AC AND 2.000 AMPERES LAMP AC |
| BODY STYLE | 5P BUSHING MOUNT |

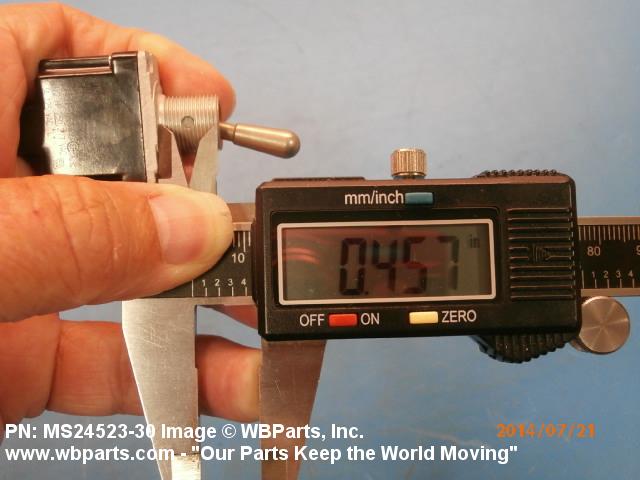

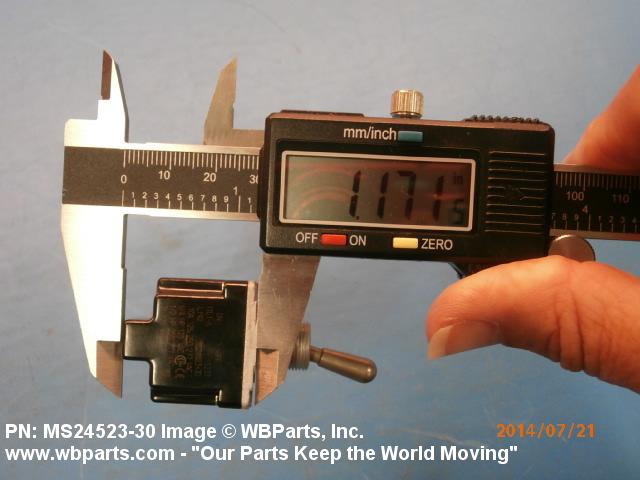

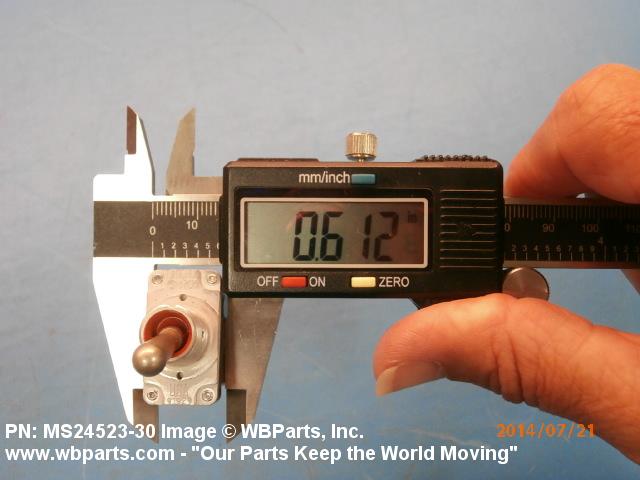

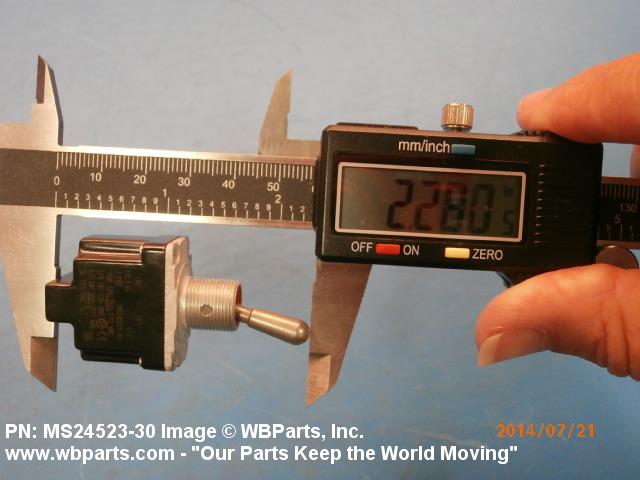

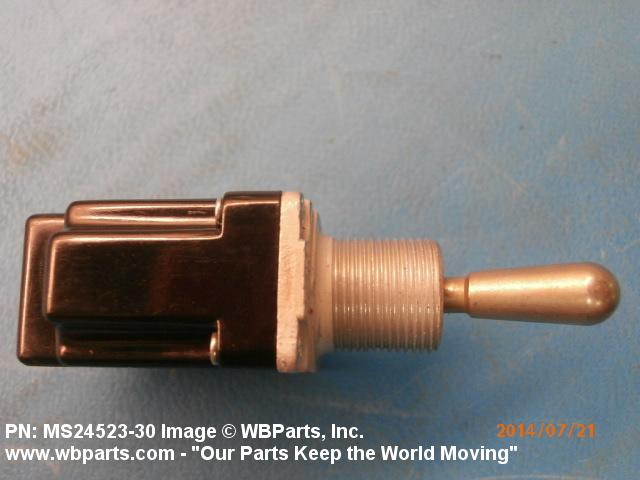

| BUSHING LENGTH | 0.455 INCHES MINIMUM AND 0.485 INCHES MAXIMUM |
| BODY LENGTH | 1.270 INCHES MAXIMUM |
| BODY WIDTH | 0.635 INCHES MAXIMUM |
| BODY HEIGHT | 0.890 INCHES MINIMUM AND 0.930 INCHES MAXIMUM |
| OVERALL LENGTH | 1.270 INCHES MAXIMUM |
| ACTUATOR STYLE | 25 ROUND |

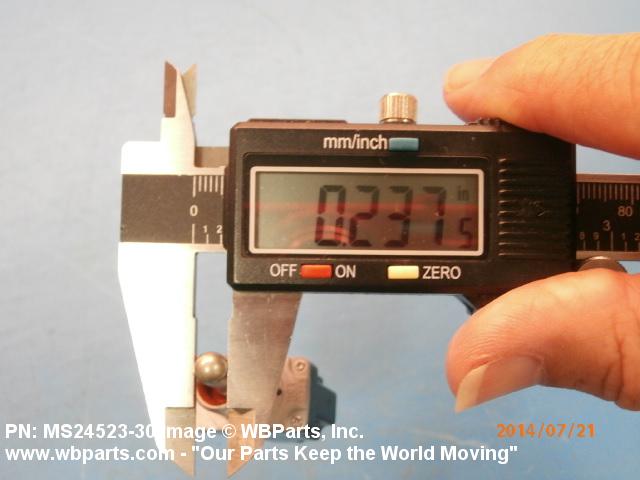

| ACTUATOR DIAMETER | 0.237 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |

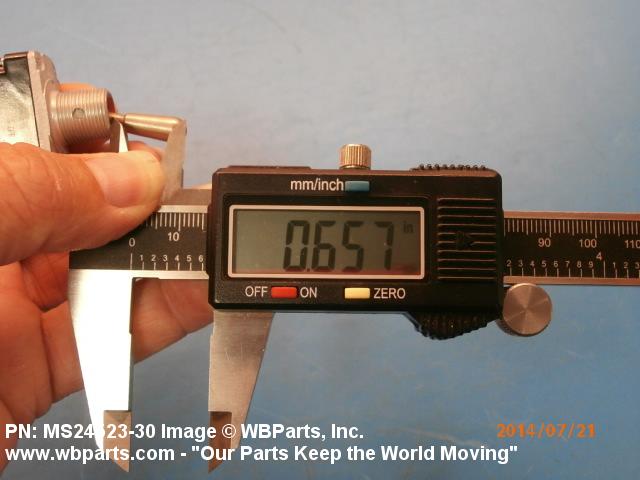

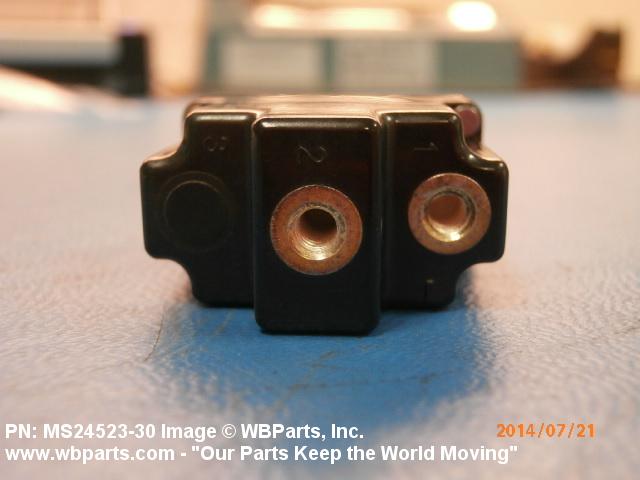

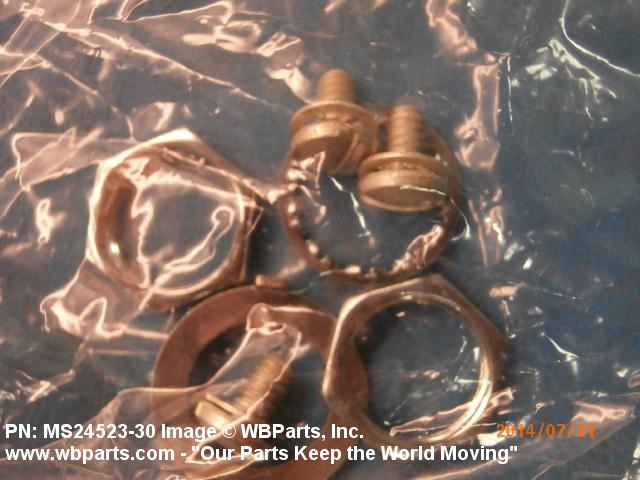

| ACTUATOR HEIGHT | 0.665 INCHES MINIMUM AND 0.695 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MOMENTARY |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | VAPORTIGHT |
| MOUNTING METHOD | THREADED BUSHING |
| THREAD SERIES DESIGNATOR | UNS |

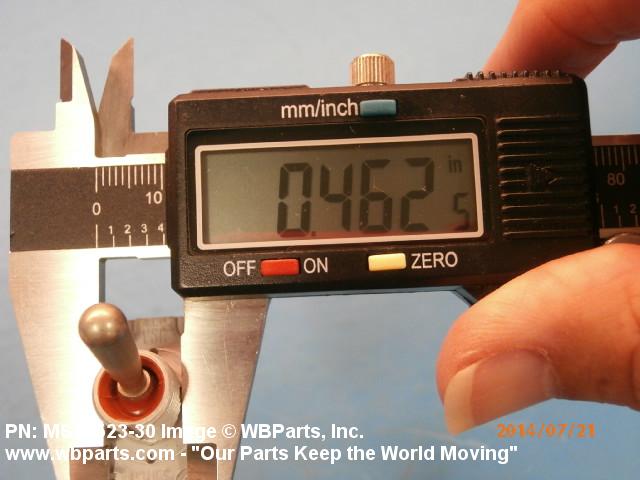

| NOMINAL THREAD SIZE | 0.469 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| FEATURES PROVIDED | ACTUATOR SEAL |
| TEST DATA DOCUMENT | 81349-MILS-3950 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-3950 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS24523-30 |
Restrictions/Controls & Freight Information | NSN 5930-00-683-1626
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
