NSN 5930-00-683-1629 MS2452323, MS24523-23, MS2452323G

Product Details | TOGGLE SWITCH

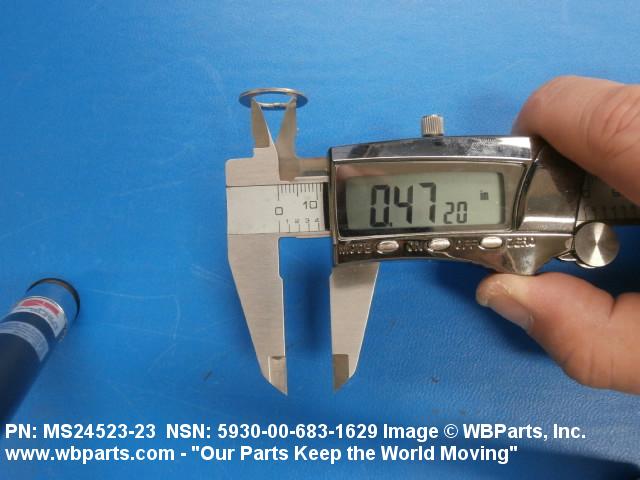

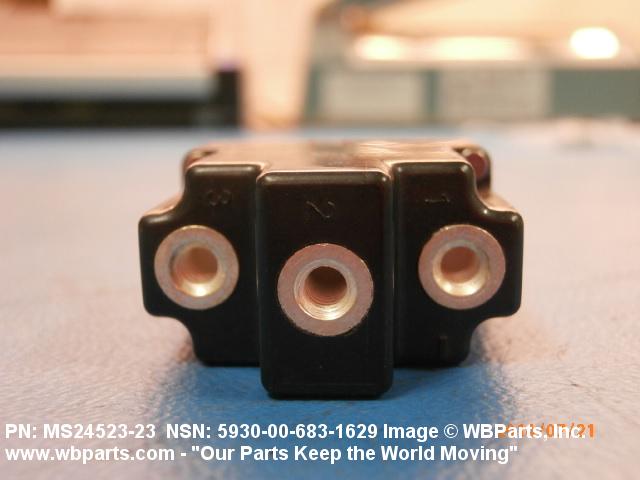

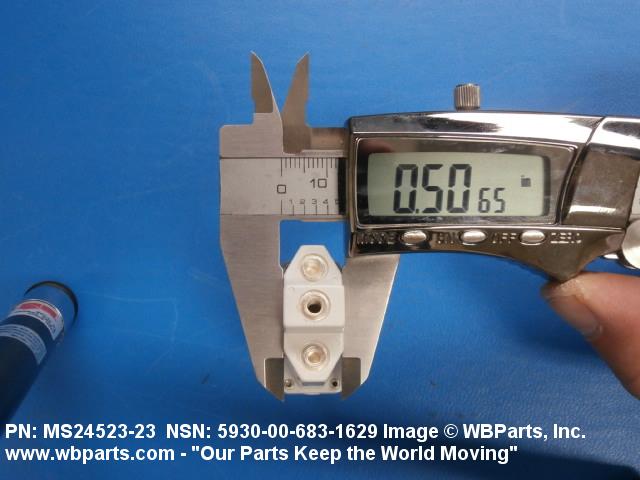

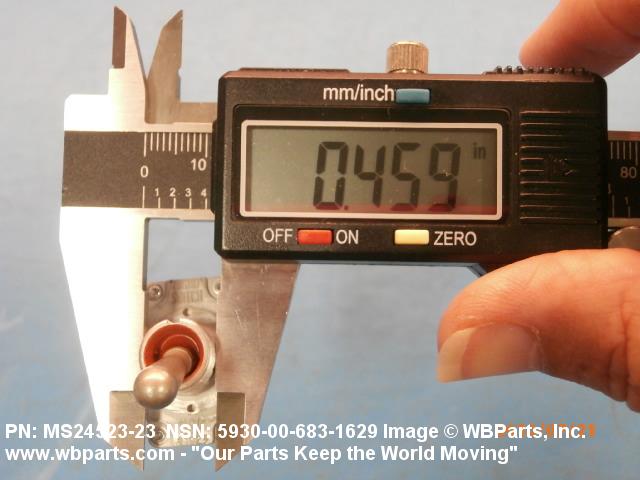

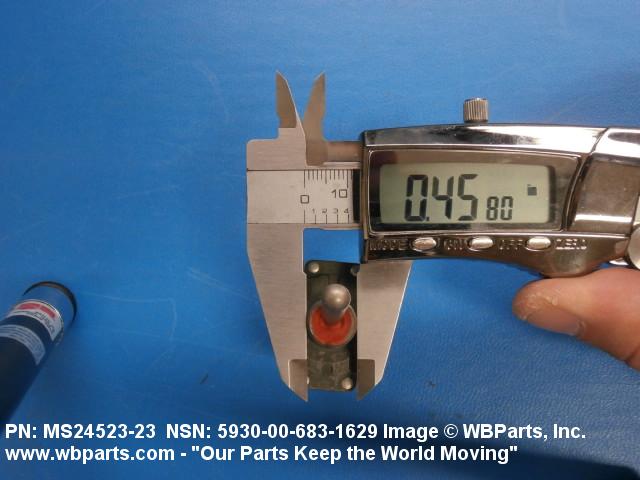

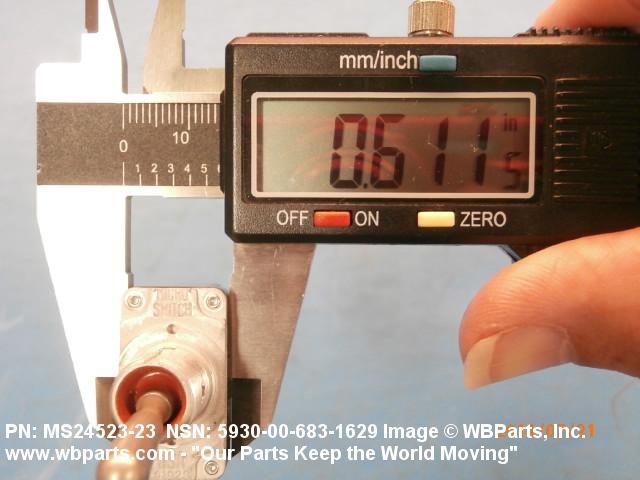

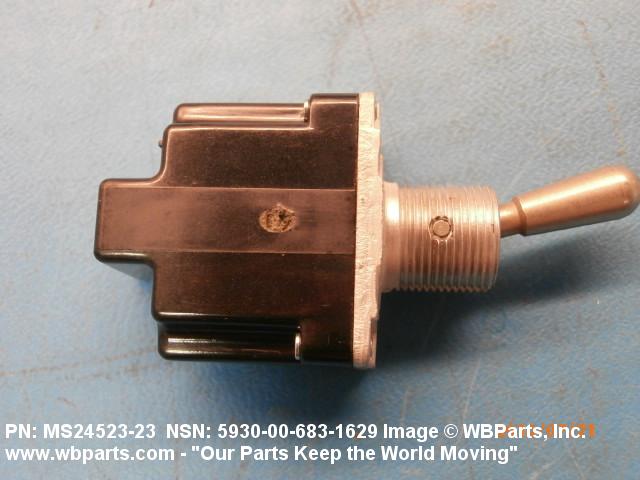

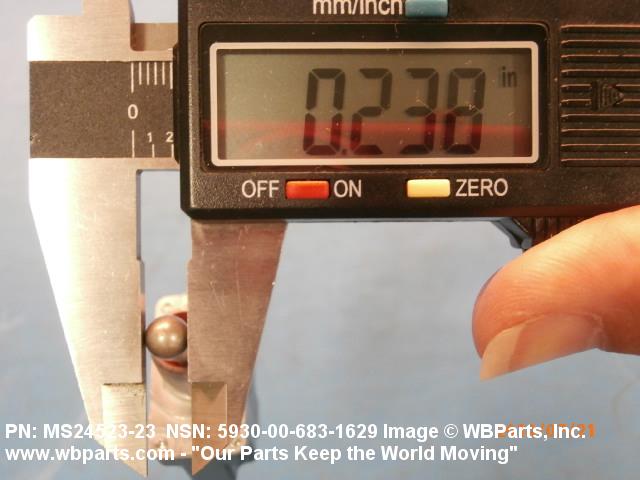

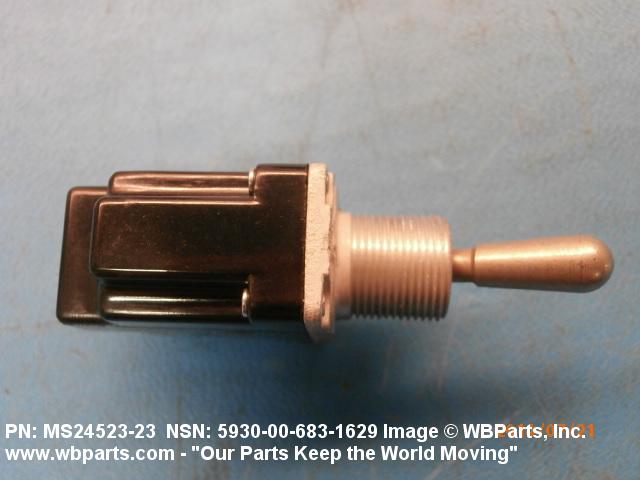

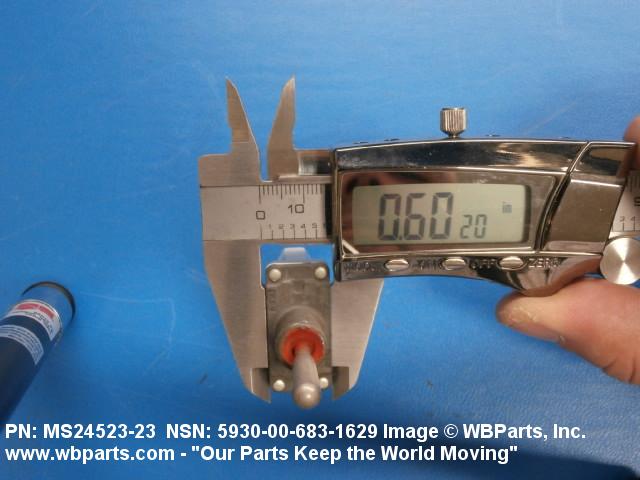

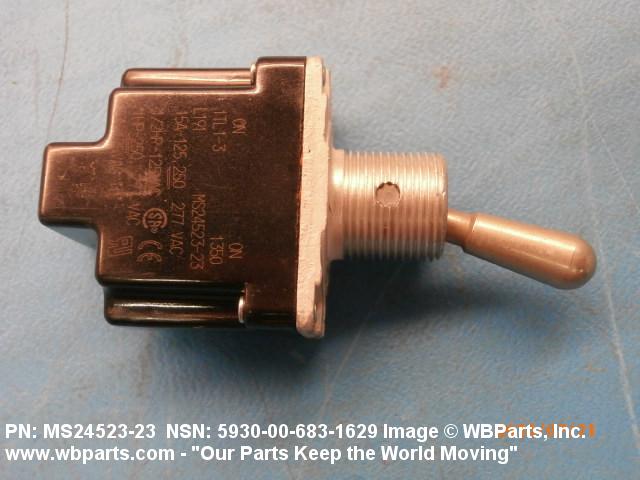

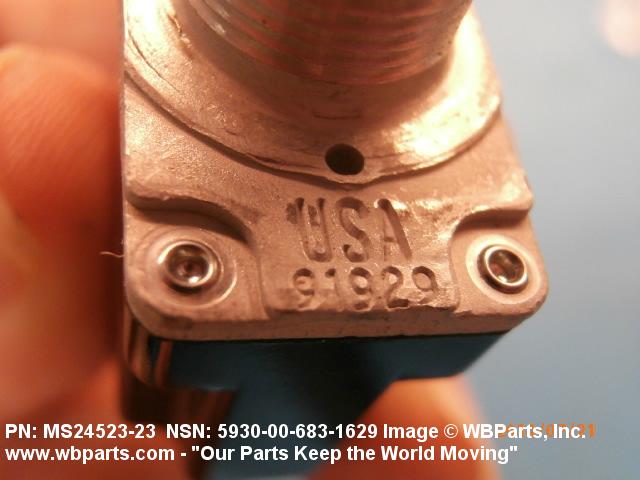

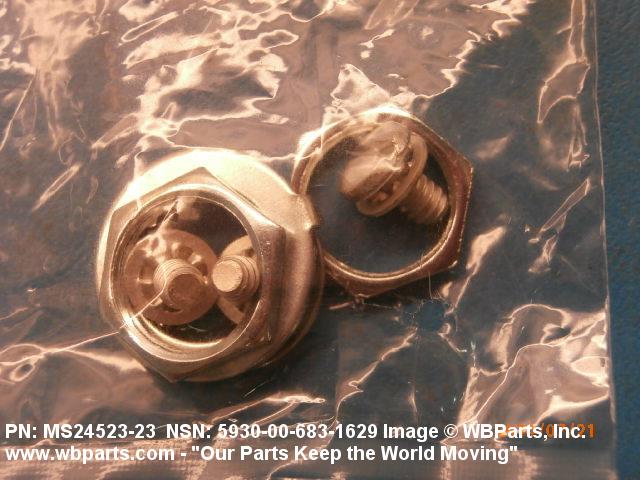

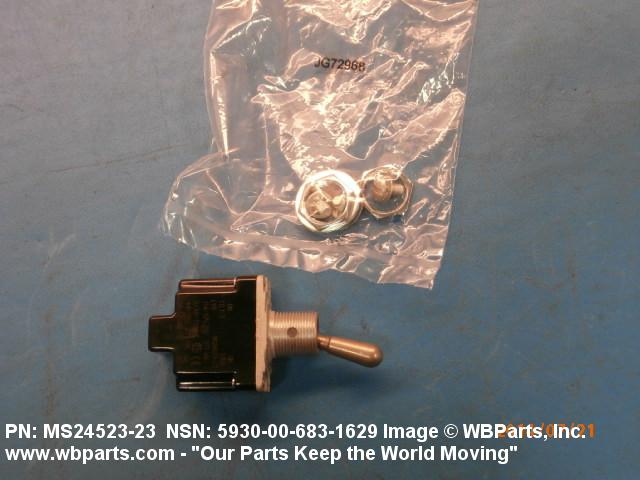

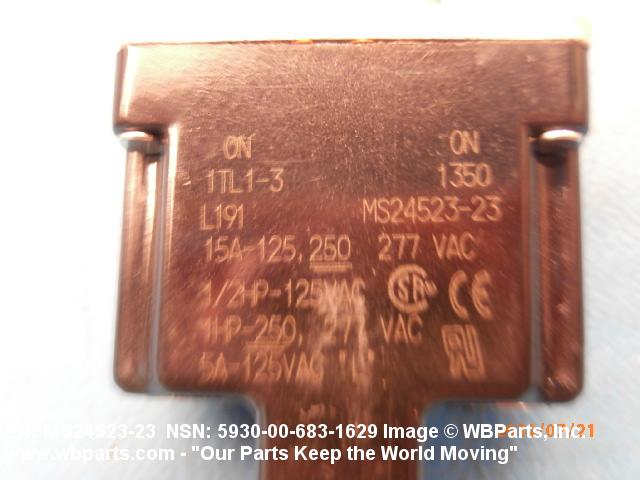

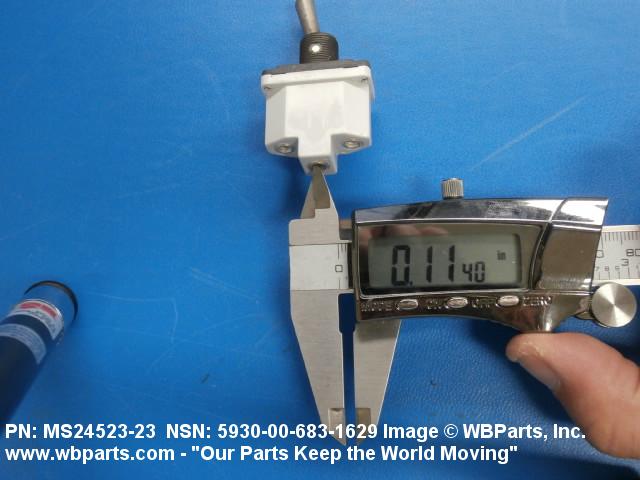

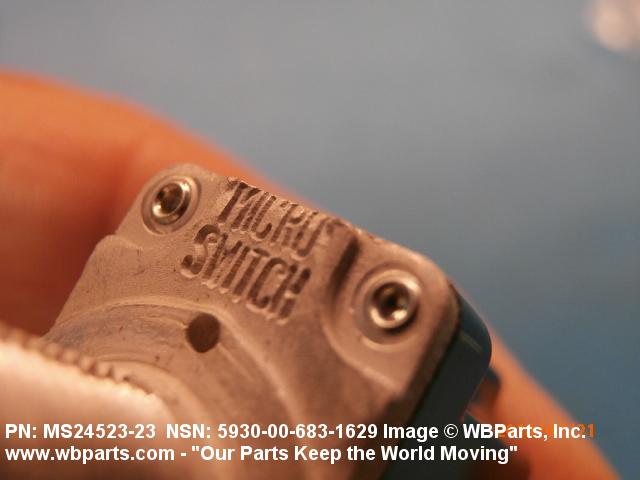

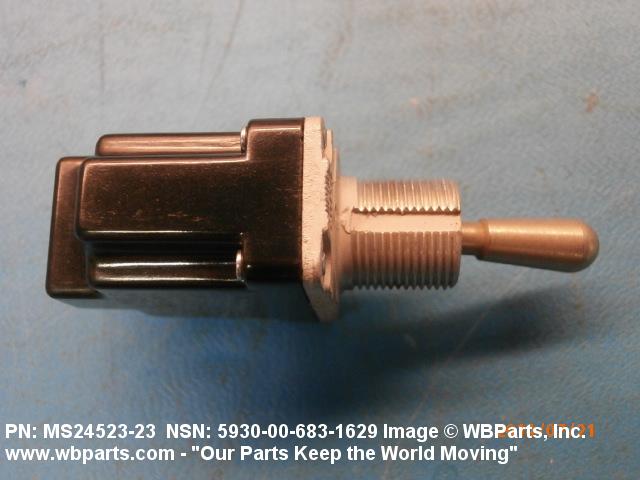

5930-00-683-1629 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS2452323, MS24523-23, MS2452323G, MS24523-23G, AC/14/3/1823, AC1431823, EE100896, FRS480008, INR76172, INR76-172, ITL13, ITL1-3, MILDTL3950, MIL-DTL-3950, MILS3950, MIL-S-3950, T9MS123, T9-MS1-23 , 6418865, 7872000062, 7-872-000062, 0107 3534, 01073534, 060002476023, 060-002476-023, 1TL13, 1TL1-3, 1TL13172, 1TL1-3172, 1TL3, 1V6652, 201512, 2066823, 21TL13, 21TL1-3, 23111340176, 23111-3401-76, 2360-240000-45-0, 430-1853221-198, 43912730410, 43912730-410, 4575848, 457-5848 , 803-1853221-198, 8115051, 811505-1, 8120340003, 812034-0003, 8390432410, 83904324-10, 8500K4, 8510K1, 8510K4, 973.52.17.136, 9735217136, 5930-00-683-1629, 00-683-1629, 4301853221198, 5930006831629 , 2360240000450, 8031853221198, 006831629

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-683-1629	00184 ( SWITCH, TOGGLE )
