NSN 5930-00-683-1628 MS2452322, MS24523-22, MS2452331

Product Details | TOGGLE SWITCH

5930-00-683-1628 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.

Part Alternates: MS2452322, MS24523-22, MS2452331, MS24523-31, A264706, A26470-6, AS30244, ST22731001, ST22731-001, BOF901255 , C205023, C205-023, EE61676, ER1632, F300 0T 015 4941, F3000T0154941, FV 2109383 ITEM 48, FV 2109383/48, FV2027019, FV210938348, FV2109383ITEM48, FV636113 ITEM 6, FV636113ITEM6, FV726480, FV953714ITEM10, ITL12, ITL1-2, ITLI2, ITLI-2, K65961TL12, K65961TL1-2, MILDTL3950, MIL-DTL-3950, MILS3950, MIL-S-3950, W41262N6102B3, YCS79, Q10092049, Q10092-049, RC913W, B569, 110-001280, 193075, 1TL12, 1TL1-2, 2452322, 24523-22, 25B35001, 25-B-35001, 2665385080, 266-5385-080, 31900001, 3190-0001, 408498036002, 408-4-98036-002, 4509001760, 450900-1760, 4711 157131, 4711157131, 511122, 51-1122, 060002476022, 060-002476-022, 10500718, 106450, 0066400250, 00664-0025-0, 6415257, 66900072003000490, 6690007-200300-049-0, 68150020802, 8120340002, 812034-0002, 83201118S1S6, 8500K, 8500K., 8500K9, 8500K9SW1BN1030, 870037, 973.52.17.135, 9735217135, 9735217238, 5930-00-683-1628, 00-683-1628, 5930006831628, 006831628, 110001280

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-683-1628	00184 ( SWITCH, TOGGLE )

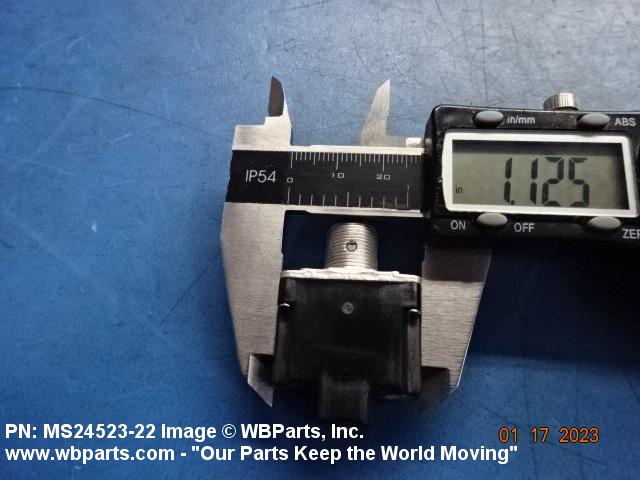

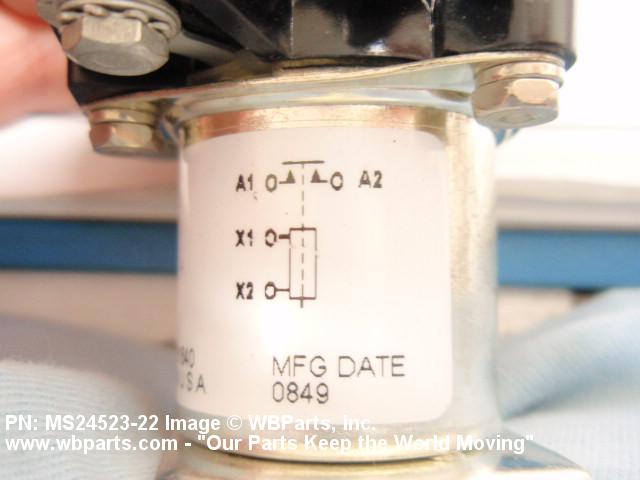

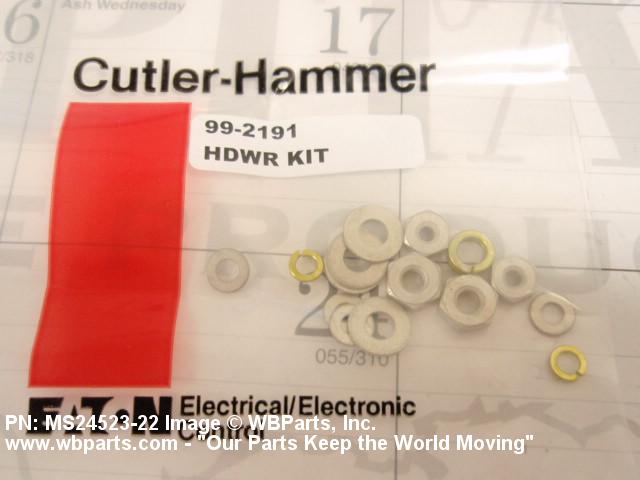

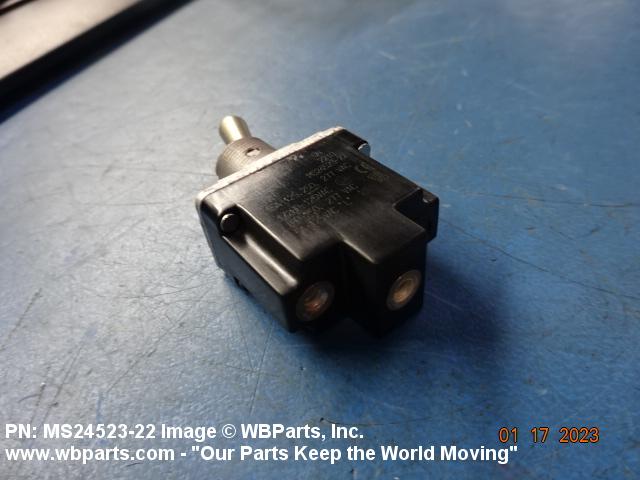

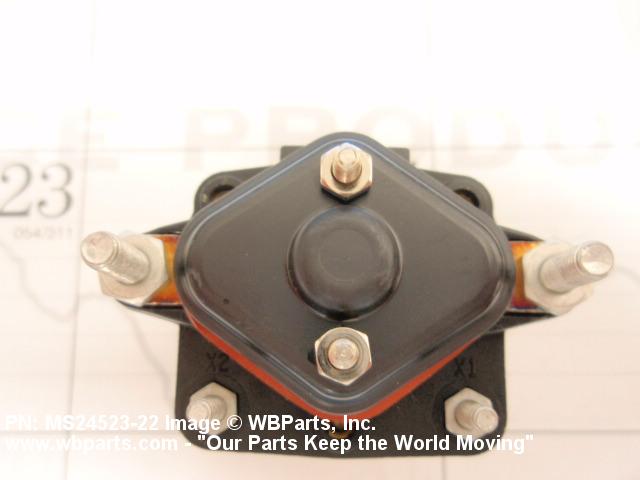

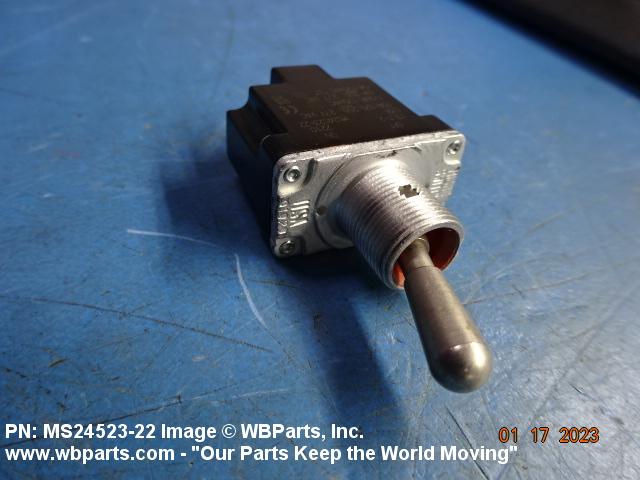

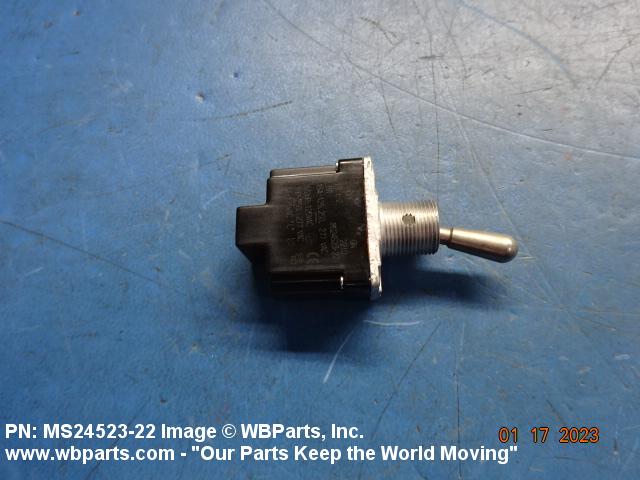

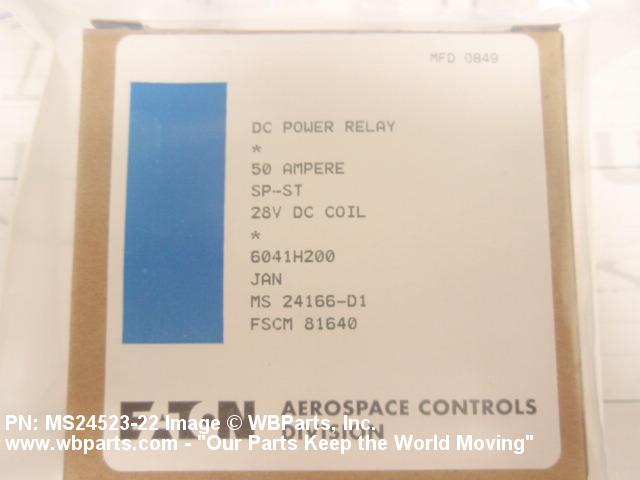

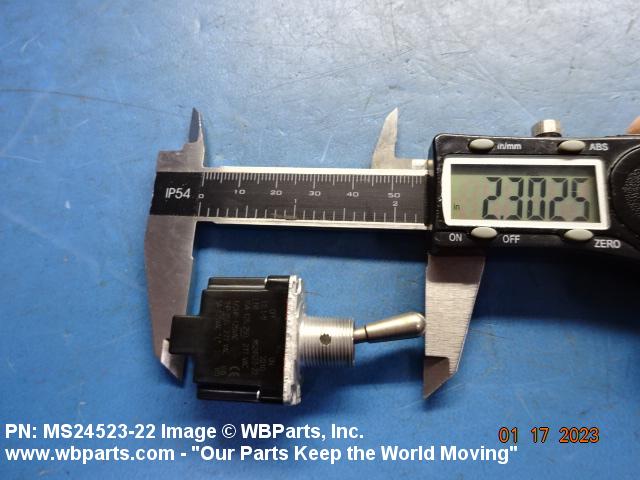

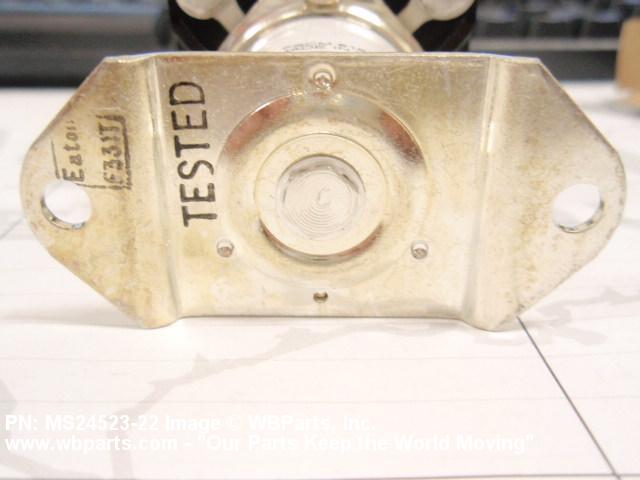

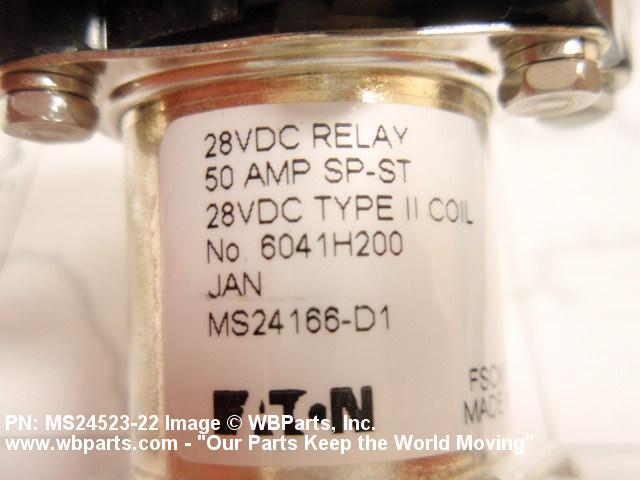

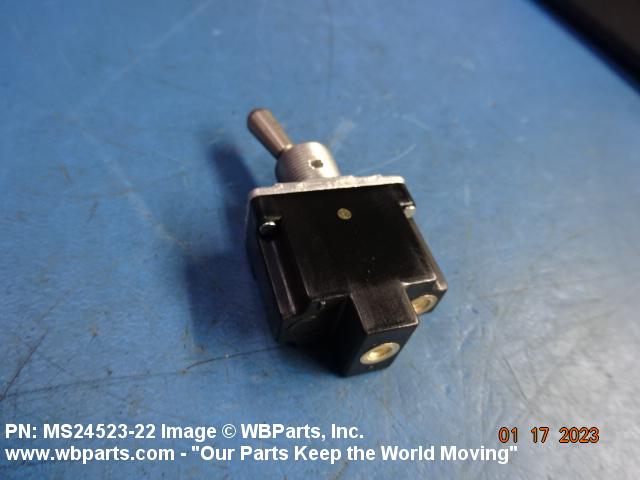

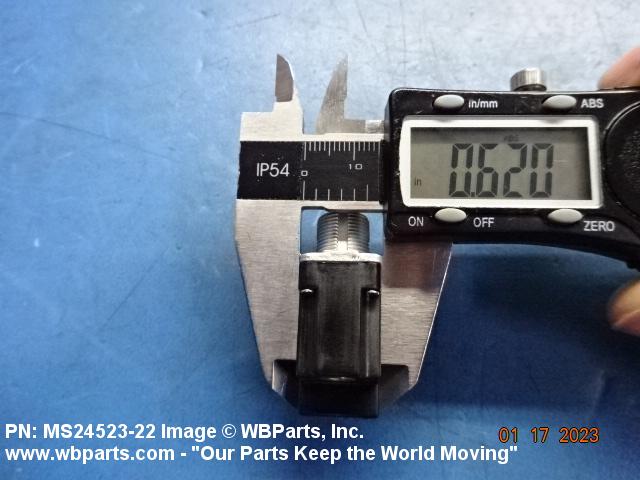

Drawings & Photos | NSN 5930-00-683-1628

Part Number	Request Date	QTY	Origin
MS2452322	2024-11-323	2	United States
MS2452322	2024-05-134	4	United States
MS2452322	2024-02-39	1	US
MS2452322	2023-01-12	1	us
MS2452322	2020-10-303	3	UK
5930-00-683-1628	2020-08-226	600	US
5930-00-683-1628	2020-08-226	1000	US
MS2452322	2020-08-223	100	United States
5930-00-683-1628	2019-12-336	50	Singapore
5930-00-683-1628	2019-11-331	50	Singapore
5930-00-683-1628	2019-03-67	6	MANUAL
MS2452331	2019-02-42	2	AE
5930-00-683-1628	2017-11-307	2	US
5930-00-683-1628	2017-09-272	3	US
5930-00-683-1628	2017-01-11	15	United States
5930-00-683-1628	2016-07-193	1162	DIBBS
MS24523-22	2016-06-173	17
MS24523-22	2015-05-141	1	United States
MS24523-22	2015-05-141	1	United States
MS24523-22	2014-10-275	23	US
MILS3950	2014-02-56	4	Canada
MILS3950	2013-01-11	48	US
MS24523-22	2013-01-04	1	Indonesia
MS2452331	2012-10-284	100	NL
5930-00-683-1628	2012-08-237	894	DIBBS
MS2452322	2012-03-82	5	United States
MS2452322	2012-03-74	1	United States
MS2452322	2012-03-74	50	United States
MS2452322	2012-03-74	100	United States
5930-00-683-1628	2011-02-53	3200	DIBBS
MS2452322	2011-02-46	32	US
MS2452322	2010-12-341	2	us
5930-00-683-1628	2010-11-319	977	DIBBS
5930-00-683-1628	2010-10-286	94	United States
MS2452322	2010-08-224	6	Brazil
5930-00-683-1628	2010-07-209	932	DIBBS
5930-00-683-1628	2010-06-179	1870	DIBBS
5930-00-683-1628	2010-05-140	1769	DIBBS
5930-00-683-1628	2010-05-121	768	DIBBS
5930-00-683-1628	2010-02-32	1	Japan
5930-00-683-1628	2009-10-303	746	DIBBS
5930-00-683-1628	2009-07-194	30	Belgium
5930-00-683-1628	2009-07-194	30	Belgium
MS2452322	2009-07-187	1	United States
5930-00-683-1628	2008-06-177	2000	DIBBS
5930-00-683-1628	2008-03-78	1800	DIBBS
5930-00-683-1628	2007-10-297	3577	DIBBS
5930-00-683-1628	2007-10-290	2	US
5930-00-683-1628	2007-09-256	4	DIBBS
5930-00-683-1628	2007-09-253	1625	DIBBS
MS2452322	2006-06-171	25	US

Cross Reference | NSN 5930-00-683-1628

Part Number	Cage Code	Manufacturer
00664-0025-0	81867	ELECTRONIC ASSOCIATES INC
060-002476-022	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
10500718	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
106450	34355	LOCKHEED MARTIN SIPPICAN, INC. DBA SIPPICAN USE CAGE CODE 16848 FOR
110-001280	56425	INTERNATIONAL SWITCHBOARD CORP DIV OF EQUUS POWER SYSTEMS CORP
193075	23382	FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP
1TL1-2	09504	HONEYWELL LTD
1TL1-2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
1TL1-2	D9444	HONEYWELL REGELSYSTEME GMBHGESCHAEFTSBEREICH SONDERTECHNIK
1TL1-2	F1907	HONEYWELL
1TL1-2	F3767	SEF INDUSTRIE
1TL1-2	K6596	HONEYWELL CONTROL SYSTEMS LTD
1TL1-2	K8728	ACAL BFI UK LIMITED
1TL1-2	U4042	HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS -
24523-22	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
25-B-35001	80906	BLAW-KNOX CONSTRUCTION EQUIPMENT CO DIV OF WHITE CONSOLIDATED INDUSTRIES
2508591037	K2504	RS COMPONENTS LIMITED
266-5385-080	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
3190-0001	82634	MCGILL MFG CO INC ELECTRICAL DIV
408-4-98036-002	K1601	A B ELECTRONICS PRODUCTS GROUP PLC
408-4-98036-002	K2323	AB CONNECTORS LTD
408-4-98036-002	U4187	TUV PRODUCT SERVICE LTD
450900-1760	D4856	NORTHROP GRUMMAN LITEF GMBH DBA LITEF
4711 157131	D8770	TE KA DE FELTEN & GUILLEAUMEFERNMELDEANLAGEN GMBH
51-1122	C0300	ITW ATECO GMBH
51-1122	K7178	ITW SWITCHES
5930006831628	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6415257	001JK	EMBRAER S/A
6415257	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
6690007-200300-049-0	D1839	BUNDESAMT FUER AUSRUESTUNG,
68150020802	89944	KOLLSMAN, INC.
812034-0002	65597	THALES DEFENSE & SECURITY, INC.
83201118S1S6	K4358	SAFRAN POWER UK LTD.
8500K.	15605	EATON CORP OPNS & TECHNICAL CENTER
8500K.	81640	EATON CORPORATION DBA FLUID POWER DIV
8500K9	27192	DRS POWER & CONTROL TECHNOLOGIES, INC.
8500K9	81640	EATON CORPORATION DBA FLUID POWER DIV
8500K9SW1BN1030	81640	EATON CORPORATION DBA FLUID POWER DIV
870037	82328	DRESSER RAND CO TERRY CORP STEAM TURBINE MOTOR AND
973.52.17.135	S4080	PILATUS AIRCRAFT LTD
9735217238	S4080	PILATUS AIRCRAFT LTD
A26470-6	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
A26470-6	46717	PETTIBONE LLC
AS30244	K0030	BAE SYSTEMS GLOBAL COMBAT SYSTEMSLIMITED
B569	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
BOF901255	K4922	MARSHALL LAND SYSTEMS LIMITED
C205-023	K0233	THALES OPTRONICS LIMITED
EE61676	45152	OSHKOSH CORPORATION
ER1632	K0824	PEARSON ENGINEERING LTD
FV 2109383 ITEM 48	K0407	BAE SYSTEMS LAND SYSTEMS (WEAPONS & VEHICLES) LTD
FV 2109383/48	K0407	BAE SYSTEMS LAND SYSTEMS (WEAPONS & VEHICLES) LTD
FV2027019	U0795	QINETIQ
FV636113 ITEM 6	U0795	QINETIQ
FV726480	U0795	QINETIQ
FV953714ITEM10	U0795	QINETIQ
ITL1-2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
ITL1-2	U2982	BAE SYSTEMS DEFENCE SYSTEMS LTD
ITLI-2	91929	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
K65961TL1-2	K6596	HONEYWELL CONTROL SYSTEMS LTD
K65961TL1-2	U4042	HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS -
MIL-DTL-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-3950	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24523-22	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
MS24523-22	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24523-22	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24523-22	96182	EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION
MS24523-31	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Q10092-049	U9951	RICARDO UK LTD
RC913W	81495	KOEHRING CRANES INC DBA TEREX CRANES DIV WAVERLY
ST22731-001	K0967	MBDA UK LTD
W41262N6102B3	C0426	AIRBUS DEFENCE AND SPACE GMBHELECTRONICS
YCS79	K6596	HONEYWELL CONTROL SYSTEMS LTD
YCS79	U4042	HONEYWELL CONTROL SYSTEMS LTD DIV AUTOMATION & CONTROL SOLUTIONS -

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-683-1628

Compare

Related Products | NSN 5930-00-683-1628

5930-00-683-1629, 5930-00-683-1630, 5930-00-683-1632, 5930-00-683-1633, 5930-00-683-1740

Technical Data | NSN 5930-00-683-1628

Characteristic	Specifications
NONPILE-UP CONTACT ARRANGEMENT	1 POLE, DOUBLE THROW, BOTH POSITIONS MAINTAINED SINGLE SWITCH UNIT
MAXIMUM VOLTAGE RATING IN VOLTS	115.0 AC AND 28.0 DC
CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE	20.000 AMPERES RESISTIVE DC AND 15.000 AMPERES INDUCTIVE DC AND 5.000 AMPERES LAMP DC AND 15.000 AMPERES RESISTIVE AC AND 10.000 AMPERES INDUCTIVE AC AND 3.000 AMPERES LAMP AC
BODY STYLE	5P BUSHING MOUNT
BUSHING LENGTH	0.455 INCHES MINIMUM AND 0.485 INCHES MAXIMUM
BODY LENGTH	1.270 INCHES MAXIMUM
BODY WIDTH	0.635 INCHES MAXIMUM
BODY HEIGHT	0.890 INCHES MINIMUM AND 0.930 INCHES MAXIMUM
OVERALL LENGTH	1.270 INCHES MAXIMUM
ACTUATOR STYLE	25 ROUND
ACTUATOR DIAMETER	0.237 INCHES MINIMUM AND 0.243 INCHES MAXIMUM
ACTUATOR HEIGHT	0.665 INCHES MINIMUM AND 0.695 INCHES MAXIMUM
ACTUATOR POSITION-ACTION RELATIONSHIP	UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED
TERMINAL TYPE AND QUANTITY	2 SCREW
INCLOSURE TYPE	FULLY INCLOSED
MOUNTING METHOD	THREADED BUSHING
THREAD SERIES DESIGNATOR	UNS
NOMINAL THREAD SIZE	0.469 INCHES
THREAD CLASS	2A
THREAD QUANTITY PER INCH	32
FEATURES PROVIDED	ACTUATOR SEAL
TEST DATA DOCUMENT	81349-MIL-S-3950 SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-3950
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS24523-22

Restrictions/Controls & Freight Information | NSN 5930-00-683-1628

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061300	CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5930-00-683-1628

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
