NSN 5930-00-237-7739 A32214, A3221-4, 8300K104
Product Details | TRIGGER SWITCH
5930-00-237-7739 A switch which is actuated by pulling a trigger. The switching device with trigger action may be a separate unit but is usually mounted or designed to be mounted in a pistol-grip handle. It may include provisions for locking the switch in the "ON" position. Excludes GRIP ASSEMBLY, CONTROLLER, AIRCRAFT.
Part Alternates: A32214, A3221-4, 8300K104, 11739516, 117395-16, 212616PC6, 241076, 39205, 39-205, 40A80237, 5930-00-237-7739, 00-237-7739, 5930002377739, 002377739
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-237-7739 | 00444 ( SWITCH, TRIGGER ) |
Drawings & Photos | NSN 5930-00-237-7739
Demand History | NSN 5930-00-237-7739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 39205 | 2022-08-18 | 1 | US |
| 11739516 | 2017-01-19 | 130 | South Korea |
Cross Reference | NSN 5930-00-237-7739
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117395-16 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 212616PC6 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 241076 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 39-205 | 05690 | BARKER & WILLIAMSON |
| 39-205 | 4W146 | SMART MACHINES, INC. DBA BARKER & WILLIAMSON |
| 40A80237 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 40A80237 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 8300K104 | 81640 | EATON CORPORATION DBA FLUID POWER DIV |
| A3221-4 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION |
| A3221-4 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| A3221-4 | 55631 | SCOMILL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-237-7739
Related Products | NSN 5930-00-237-7739
Technical Data | NSN 5930-00-237-7739
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC |
| BODY STYLE | 4Q HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 0.828 INCHES NOMINAL |
| BODY LENGTH | 1.094 INCHES NOMINAL |
| BODY WIDTH | 0.672 INCHES NOMINAL |
| BODY HEIGHT | 0.922 INCHES NOMINAL |
| OVERALL LENGTH | 1.531 INCHES NOMINAL |
| OVERALL WIDTH | 0.672 INCHES NOMINAL |
| OVERALL HEIGHT | 1.547 INCHES NOMINAL |

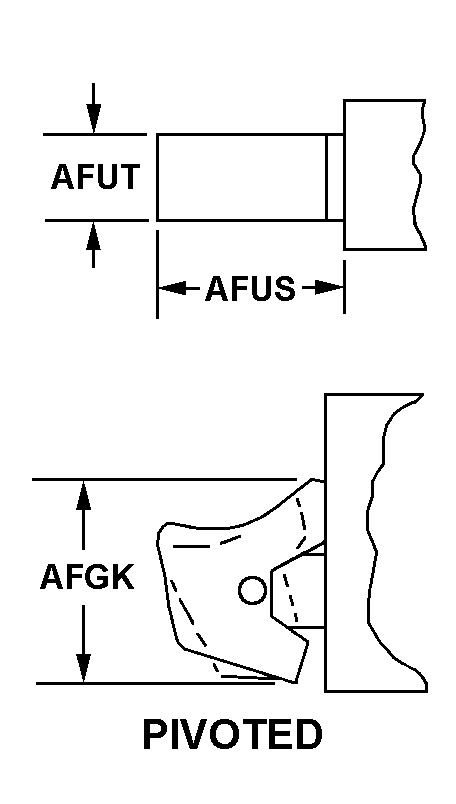

| ACTUATOR STYLE | 56 PIVOTED |
