NSN 5930-00-237-7743 11739516, 117395-16, 133257PC5
Product Details | TRIGGER SWITCH
5930-00-237-7743 A switch which is actuated by pulling a trigger. The switching device with trigger action may be a separate unit but is usually mounted or designed to be mounted in a pistol-grip handle. It may include provisions for locking the switch in the "ON" position. Excludes GRIP ASSEMBLY, CONTROLLER, AIRCRAFT.
Part Alternates: 11739516, 117395-16, 133257PC5, 152058PC4, 2081378, 319211PC6, 319314PC12, 325275PC9, 325317PC4, 416946PC3, 5930-00-237-7743, 00-237-7743, 5930002377743, 002377743
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-237-7743 | 00444 ( SWITCH, TRIGGER ) |
Drawings & Photos | NSN 5930-00-237-7743
Demand History | NSN 5930-00-237-7743
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11739516 | 2017-01-19 | 130 | South Korea |
Cross Reference | NSN 5930-00-237-7743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117395-16 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 133257PC5 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 152058PC4 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 2081378 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 319211PC6 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 319314PC12 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 325275PC9 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 325275PC9 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
| 325317PC4 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 416946PC3 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-237-7743
Related Products | NSN 5930-00-237-7743
Technical Data | NSN 5930-00-237-7743
| Characteristic | Specifications |
|---|---|
| NONPILE-UP CONTACT ARRANGEMENT | 1 POLE, SINGLE THROW, NORMALLY OPEN, DOUBLE MAKE, MOMENTARY ACTION SINGLE SWITCH UNIT |
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 250.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | 3.000 AMPERES RESISTIVE DC AND 3.000 AMPERES RESISTIVE AC |

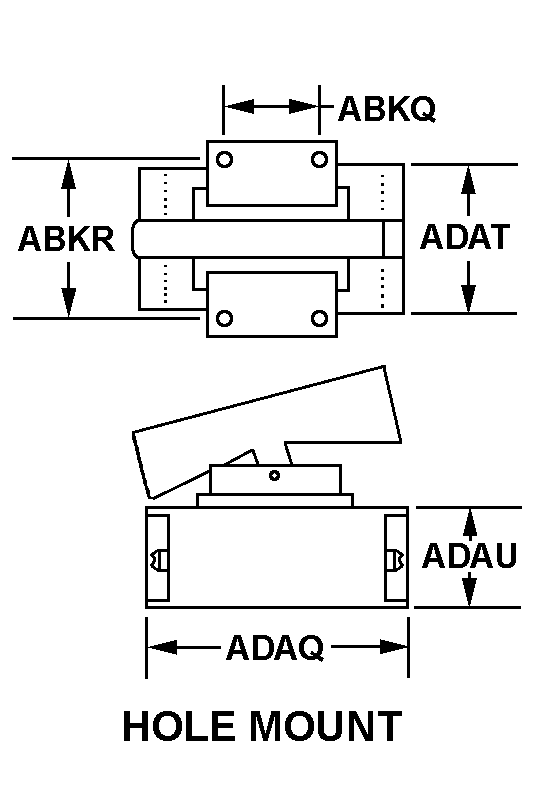

| BODY STYLE | 2Q HOLE MOUNT |
| BODY LENGTH | 1.625 INCHES NOMINAL |
| BODY WIDTH | 0.562 INCHES NOMINAL |
| BODY HEIGHT | 0.812 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| OVERALL WIDTH | 0.562 INCHES NOMINAL |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| ACTUATOR STYLE | 57 PIVOTED |
| ACTUATOR HEIGHT | 0.563 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | UNTHREADED HOLE |
| III CASE MATERIAL | METAL |
Restrictions/Controls & Freight Information | NSN 5930-00-237-7743
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-00-237-7743
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
