Product Details | SENSITIVE SWITCH HOUSING

5930-00-237-8597 An item designed to inclose a basic sensitive switch providing characteristics features such as dust-proof, explosion-proof, watertight, and the like, and having provisions for actuating the switch. Excludes BOX, SWITCH.

Part Alternates: HRE11, 5930-00-237-8597, 00-237-8597, 5930002378597, 002378597

Electrical and Electronic Equipment Components | Switches

Supply Group (FSG) NSN Assign. NIIN
59 01 JAN 1963 00-237-8597

Drawings & Photos | NSN 5930-00-237-8597


Demand History | NSN 5930-00-237-8597

Part Number Request Date QTY Origin
5930-00-237-8597 2020-08-217 1 US
5930-00-237-8597 2015-11-334 2 US
HRE11 2012-08-229 10

Cross Reference | NSN 5930-00-237-8597

Part Number Cage Code Manufacturer
HRE11 91929 HONEYWELL INTERNATIONAL INC. DBA HONEYWELL

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5930-00-237-8597

Technical Data | NSN 5930-00-237-8597

Characteristic Specifications

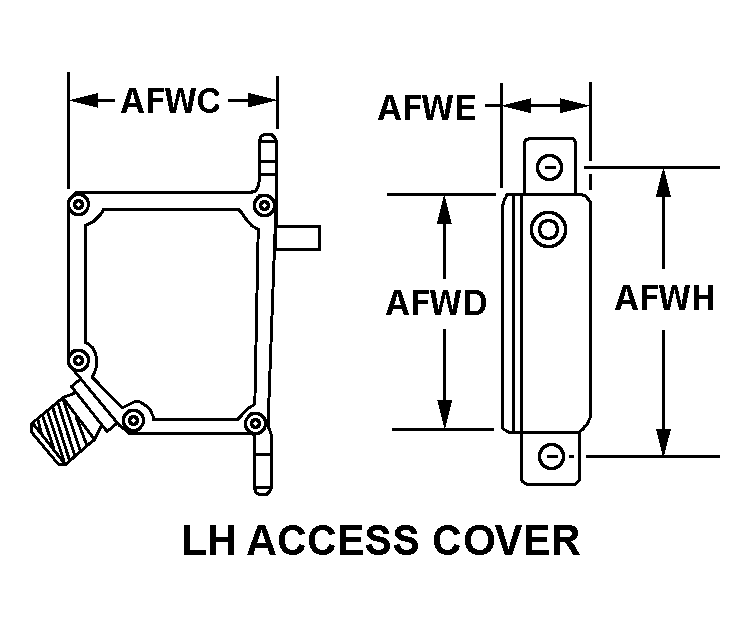

BODY STYLE 70M LH ACCESS COVER
HOUSING WIDTH 1.000 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH 3.312 INCHES NOMINAL
ACTUATOR STYLE 4 ROUND
ACTUATOR FREE POSITION HEIGHT 0.594 INCHES NOMINAL
MOUNTING METHOD FLUSH AND UNTHREADED HOLE
UNTHREADED MOUNTING HOLE DIAMETER 0.281 INCHES NOMINAL
FEATURES PROVIDED NONADJUSTABLE
SPECIAL FEATURES ALUMINUM FRAME
III OVERALL LENGTH 3.938 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5930-00-237-8597

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061300 CIRCUIT BREAKER/SWITCH NOI
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 658 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5930-00-237-8597

Category Code Description
Cognizance Codes9NNavy-owned stocks of defense electronic material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9EDefense Supply Center Columbus
Columbus, OH 43218
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
