Product Details | CODE INDICATING WHEEL SWITCH
5930-00-124-8754 A switch which is externally actuated by a thumbwheel and/or pushbutton. A legend or message is visually displayed at each position of the indicating wheel which corresponds to electrically coded output. Electrically coded output is achieved by rotating a set of brush contacts permanently attached to the code indicating wheel, against a stationary commutator which is usually a printed wiring board having electrical pads or contacts which are interconnected by the rotating brush contacts. May have additional electrical components (such as resistors, capacitors, diodes) premounted on that portion of printed wiring board which extends beyond the back of switch housing.
Part Alternates: SMA753271, SM-A-753271, 7C84, 7-C-84, 07C0084, 07-C-0084, 5930-00-124-8754, 00-124-8754, 5930001248754, 001248754
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 SEP 1974 | 00-124-8754 | 62415 ( SWITCH, CODE INDICATING WHEEL ) |
Drawings & Photos | NSN 5930-00-124-8754
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5930-00-124-8754
Related Products | NSN 5930-00-124-8754
Technical Data | NSN 5930-00-124-8754
| Characteristic | Specifications |
|---|---|

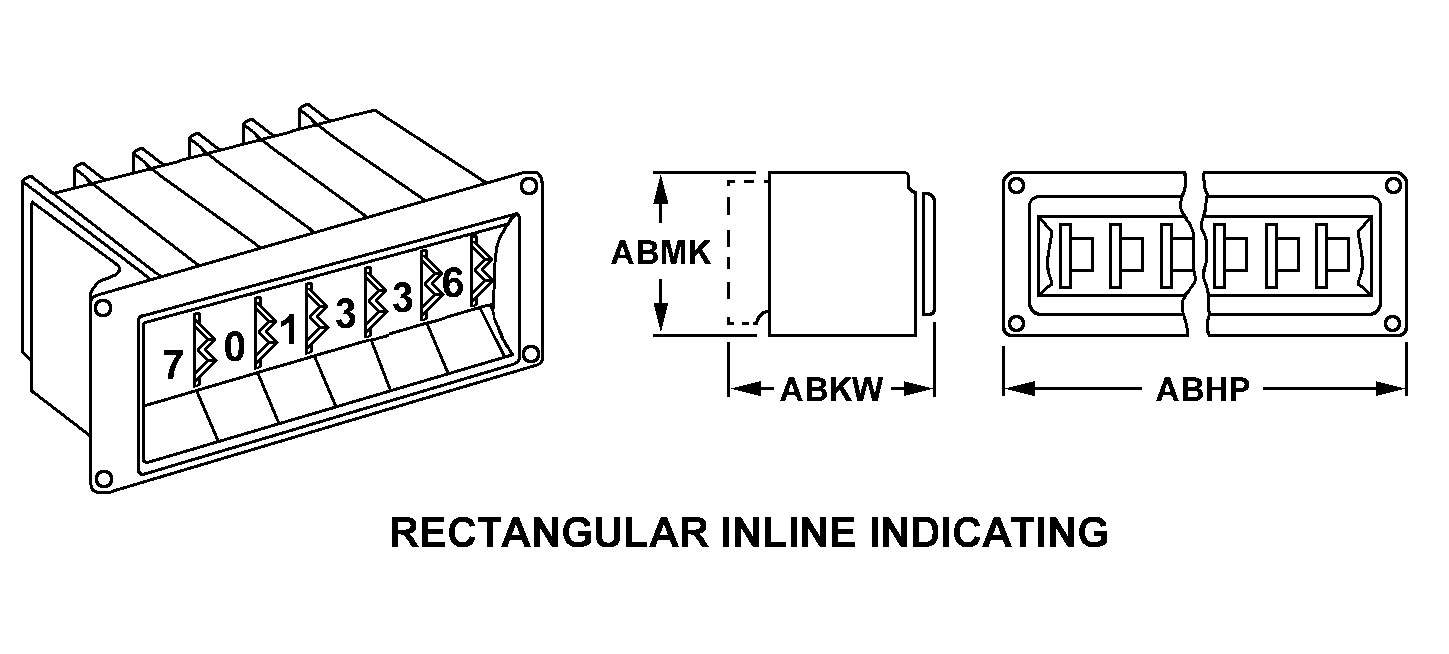

| STYLE DESIGNATOR | 30 RECTANGULAR INLINE INDICATING |
| OVERALL LENGTH | 4.284 INCHES NOMINAL |
| OVERALL HEIGHT | 1.770 INCHES NOMINAL |
| OVERALL WIDTH | 1.150 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 7 |
| READOUT INDICATOR MARKING | 7,8,8,8,8,8 1ST SECTION 9,0,1,2,3,4 2ND SECTION 0,1,2,3,4,5,6,7,8,9 3RD SECTION 0,1,2,3,4,5,6,7,8,9 4TH SECTION 0,1,2,3,4,5,6,7,8,9 5TH SECTION 0,1,2,3,4,5,6,7,8,9 6TH SECTION 0,1,2,3,4,5,6,7,8,9 7TH SECTION |
| COLOR | BLACK SINGLE BODY BLACK EACH INDICATOR BACKGROUND WHITE EACH INDICATOR MARKING |
| CONTACT ARRANGEMENT TRUTH TABLE | SPECIAL 1ST SECTION BCD, 1 POLE - 10 POSITIONS 2ND SECTION BCD, 1 POLE - 10 POSITIONS 3RD SECTION BCD, 1 POLE - 10 POSITIONS 4TH SECTION BCD, 1 POLE - 10 POSITIONS 5TH SECTION BCD, 1 POLE - 10 POSITIONS 6TH SECTION BCD, 1 POLE - 10 POSITIONS 7TH SECTION |
| SPECIAL TRUTH TABLE IDENTIFICATION | 80063-SPECIAL 1ST SECTION |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 125.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 125.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| ACTUATOR TYPE | THUMBWHEEL ALL ACTUATORS |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 6 1ST ACTUATOR 6 2ND ACTUATOR 10 3RD ACTUATOR 10 4TH ACTUATOR 10 5TH ACTUATOR 10 6TH ACTUATOR 10 7TH ACTUATOR |
| TERMINAL TYPE | PRINTED CIRCUIT |
| MOUNTING METHOD | BRACKET AND UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.100 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 4.114 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.900 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | DECIMAL POINT BETWEEN STATION 4 AND 5; STATION 1 GRANGED TO STATION 2 |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SALT SPRAY RESISTANT |
| III OPERATING TEMP RANGE | -65.0 TO 155.0 DEG FAHRENHEIT |
