NSN 5930-01-160-0157 M22710/17-043, M2271017043, MIL-PRF-22710/17
Product Details | CODE INDICATING WHEEL SWITCH
5930-01-160-0157 A switch which is externally actuated by a thumbwheel and/or pushbutton. A legend or message is visually displayed at each position of the indicating wheel which corresponds to electrically coded output. Electrically coded output is achieved by rotating a set of brush contacts permanently attached to the code indicating wheel, against a stationary commutator which is usually a printed wiring board having electrical pads or contacts which are interconnected by the rotating brush contacts. May have additional electrical components (such as resistors, capacitors, diodes) premounted on that portion of printed wiring board which extends beyond the back of switch housing.
Part Alternates: M22710/17-043, M2271017043, MIL-PRF-22710/17, MILPRF2271017, MIL-S-22710/17, MILS2271017, 5930-01-160-0157, 01-160-0157, 5930011600157, 011600157
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1983 | 01-160-0157 | 62415 ( SWITCH, CODE INDICATING WHEEL ) |

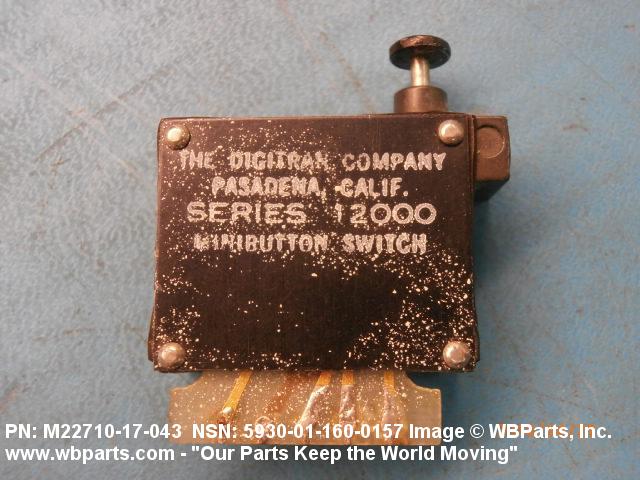

Drawings & Photos | NSN 5930-01-160-0157
Demand History | NSN 5930-01-160-0157
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-160-0157 | 2024-11-324 | 3 | United States |
| 5930-01-160-0157 | 2016-03-83 | 3 | Singapore |
| M2271017043 | 2011-10-290 | 1 | Singapore |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-160-0157
Technical Data | NSN 5930-01-160-0157
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 29 RECTANGULAR INDICATING |
| OVERALL LENGTH | 0.480 INCHES NOMINAL |
| OVERALL HEIGHT | 1.700 INCHES NOMINAL |
| OVERALL WIDTH | 1.310 INCHES MAXIMUM |
| INDIVIDUAL SECTION QUANTITY | 1 |
| READOUT INDICATOR MARKING | 0,1,2,3,4,5,6,7,8,9 SINGLE SECTION |
| COLOR | BLACK SINGLE INDICATOR BACKGROUND WHITE SINGLE INDICATOR MARKING |
| CONTACT ARRANGEMENT TRUTH TABLE | BCD, 1 POLE - 10 POSITIONS SINGLE SECTION |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 125.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| ACTUATOR TYPE | PUSH BUTTON SINGLE ACTUATOR |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 10 SINGLE ACTUATOR |
| TERMINAL TYPE | PRINTED CIRCUIT |
| MOUNTING METHOD | FLANGE AND THREADED HOLE SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UNC SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 0.086 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2B SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 56 SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | TWO POSITION IN-LINE SINGLE MOUNTING FACILITY |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.040 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| TEST DATA DOCUMENT | 81349-MIL-S-22710 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-S-22710/17 GOVERNMENT SPECIFICATION |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | EXPLOSION PROOF AND MOISTURE RESISTANT |
| III OPERATING TEMP RANGE | -65.0 TO 85.0 DEG CELSIUS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-PRF-22710/17 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22710/17-043 |
Restrictions/Controls & Freight Information | NSN 5930-01-160-0157
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-160-0157
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
