NSN 5930-01-136-8239 0600033773, 060-003377-3, 1306010008
Product Details | CODE INDICATING WHEEL SWITCH
5930-01-136-8239 A switch which is externally actuated by a thumbwheel and/or pushbutton. A legend or message is visually displayed at each position of the indicating wheel which corresponds to electrically coded output. Electrically coded output is achieved by rotating a set of brush contacts permanently attached to the code indicating wheel, against a stationary commutator which is usually a printed wiring board having electrical pads or contacts which are interconnected by the rotating brush contacts. May have additional electrical components (such as resistors, capacitors, diodes) premounted on that portion of printed wiring board which extends beyond the back of switch housing.
Part Alternates: 0600033773, 060-003377-3, 1306010008, 13-0601-0008, 286063, 28606-3, 5930-01-136-8239, 01-136-8239, 5930011368239, 011368239
Electrical and Electronic Equipment Components | Switches
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 AUG 1982 | 01-136-8239 | 62415 ( SWITCH, CODE INDICATING WHEEL ) |

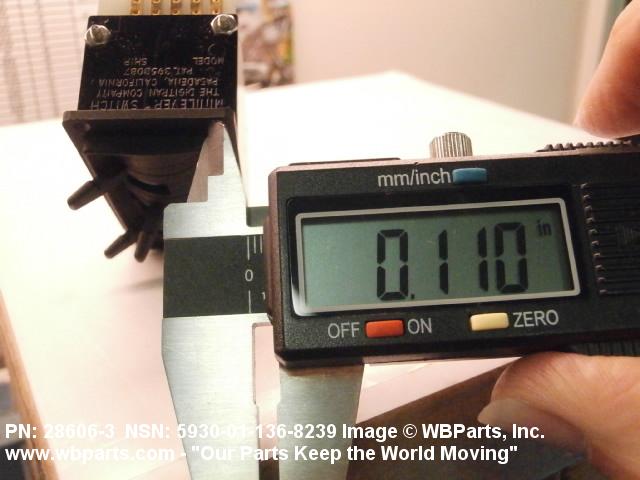

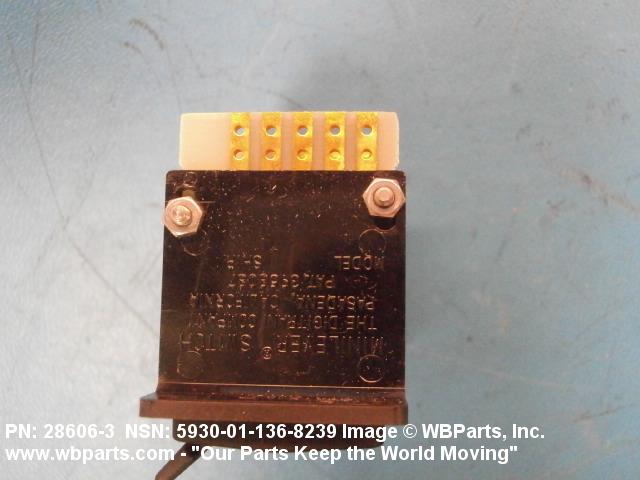

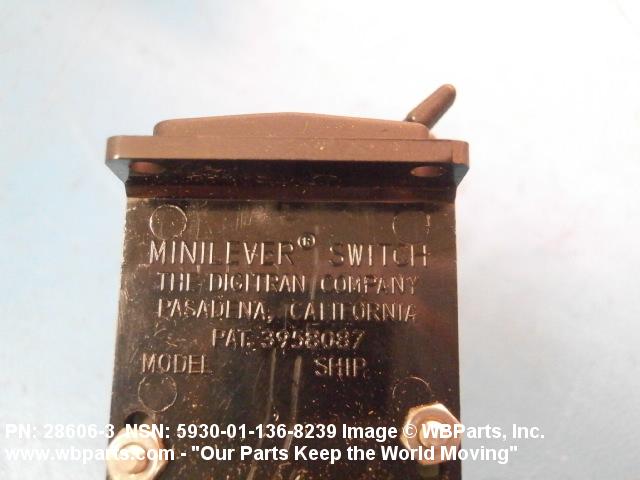

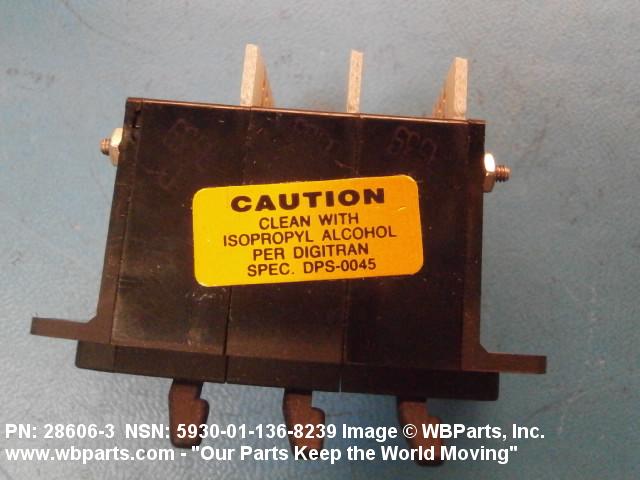

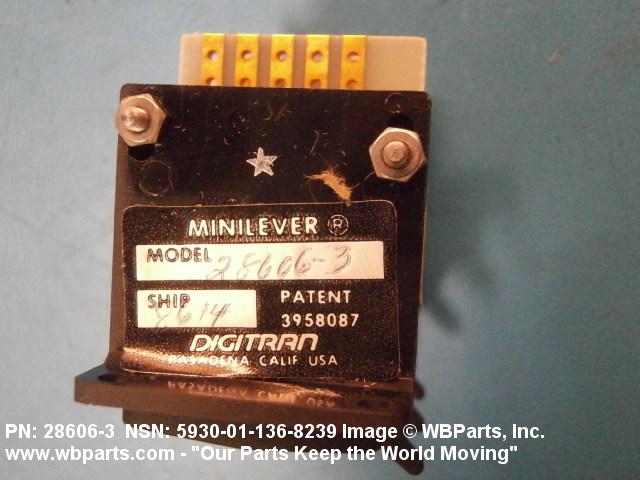

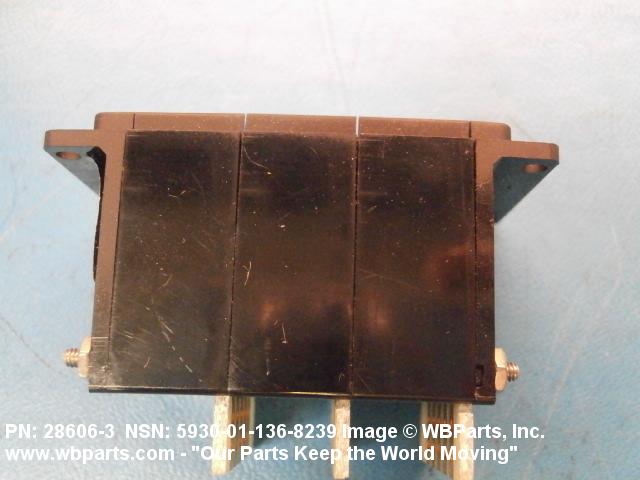

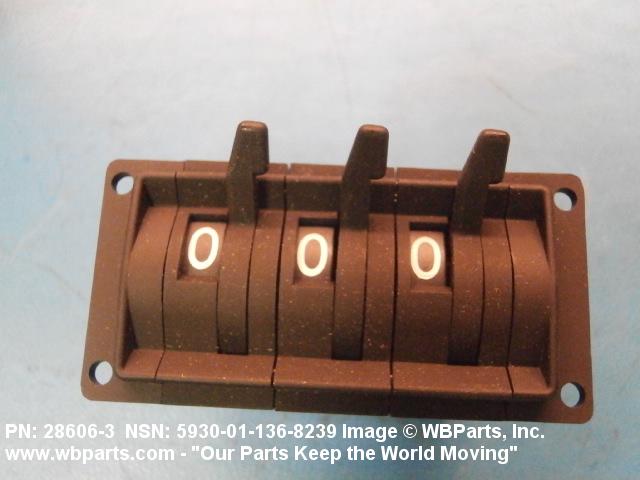

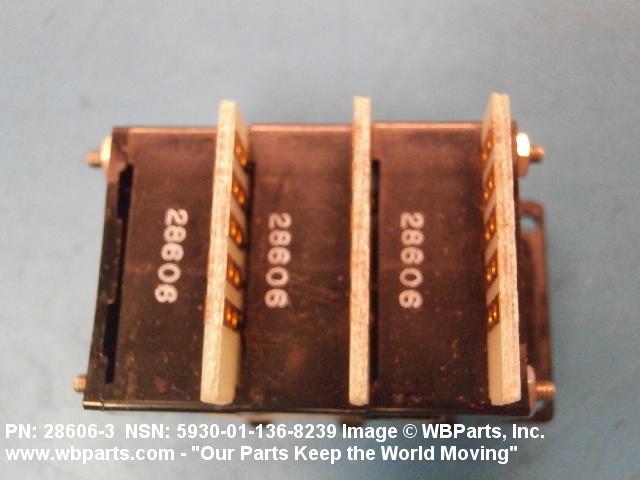

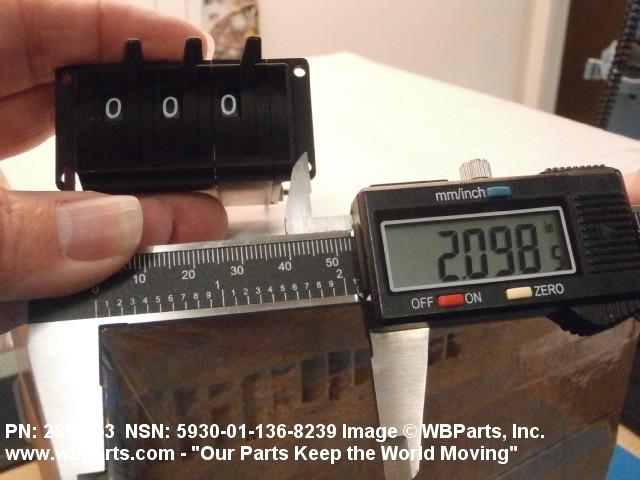

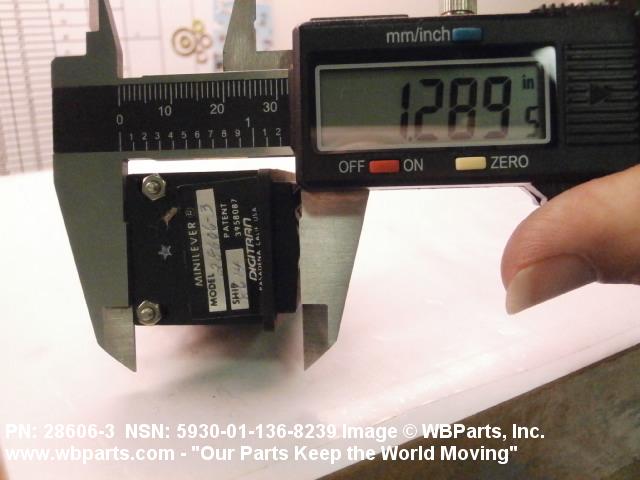

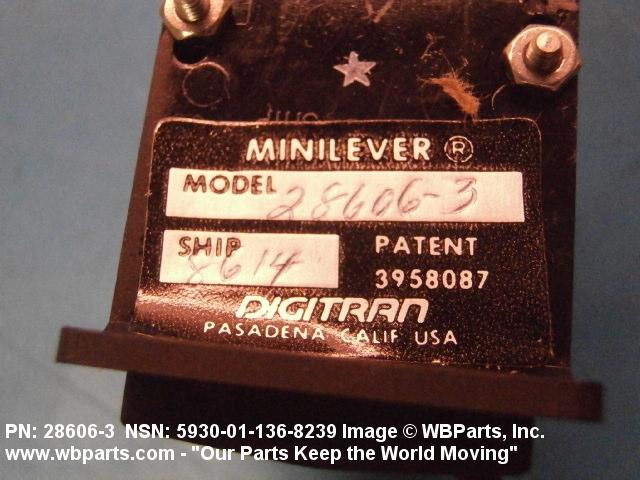

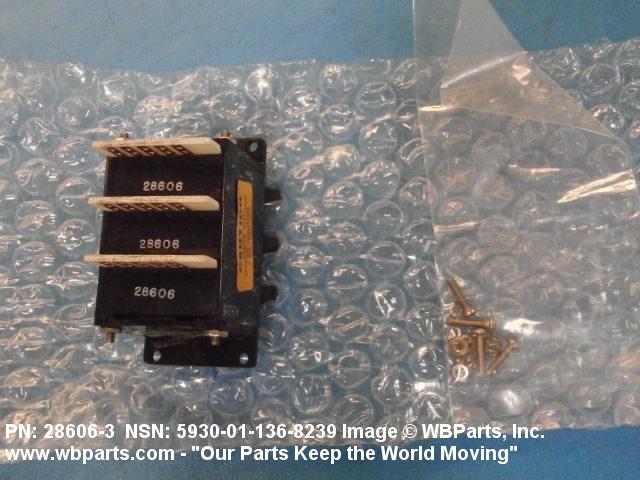

Drawings & Photos | NSN 5930-01-136-8239
Demand History | NSN 5930-01-136-8239
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5930-01-136-8239 | 2013-09-259 | 3 | United States |
| 5930-01-136-8239 | 2013-09-255 | 3 | Canada |
| 286063 | 2013-09-253 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5930-01-136-8239
Technical Data | NSN 5930-01-136-8239
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 30 RECTANGULAR INLINE INDICATING |

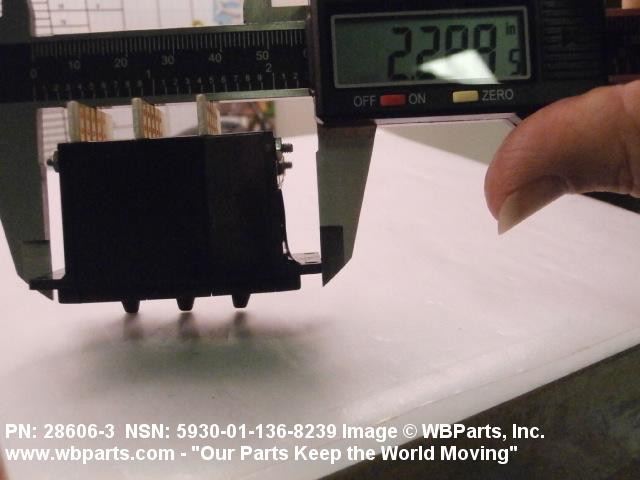

| OVERALL LENGTH | 2.260 INCHES NOMINAL |
| OVERALL HEIGHT | 1.255 INCHES NOMINAL |

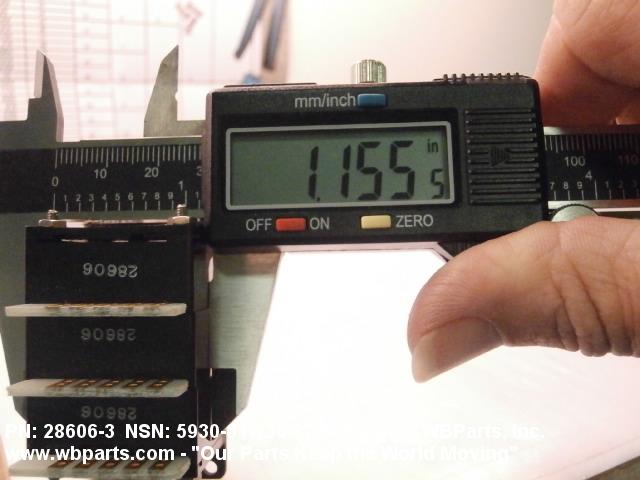

| OVERALL WIDTH | 1.150 INCHES NOMINAL |
| INDIVIDUAL SECTION QUANTITY | 3 |
| READOUT INDICATOR MARKING | 0,1,2,3,4,5,6,7 EACH SECTION |
| COLOR | BLACK EACH BODY BLACK EACH INDICATOR BACKGROUND WHITE EACH INDICATOR MARKING |
| CONTACT ARRANGEMENT TRUTH TABLE | BCD, 1 POLE - 8 POSITIONS EACH SECTION |
| CONTACT VOLTAGE RATING IN VOLTS | 28.0 AC AT SEA LEVEL 28.0 DC AT SEA LEVEL |
| CONTACT LOAD CURRENT RATING | 28.0 MILLIAMPERES RESISTIVE LOAD AC AT SEA LEVEL 28.0 MILLIAMPERES RESISTIVE LOAD DC AT SEA LEVEL |
| ACTUATOR TYPE | THUMBWHEEL ALL ACTUATORS |
| SWITCH ACTUATOR INDEXING POSITION QUANTITY | 8 ALL ACTUATORS |

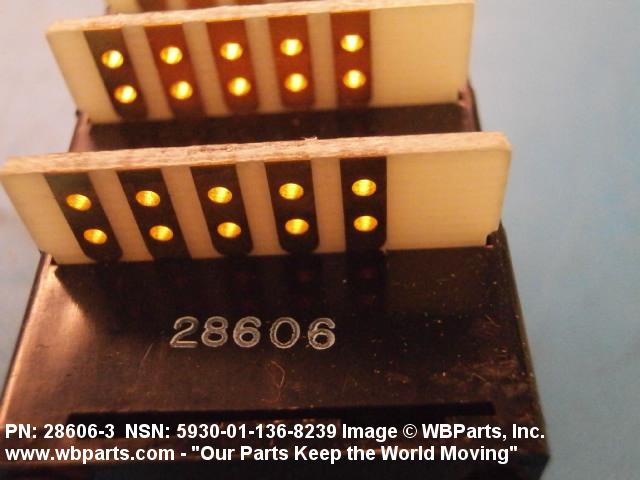

| TERMINAL TYPE | PRINTED CIRCUIT |
| MOUNTING METHOD | UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.100 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| MOUNTING FACILITY PATTERN | FOUR POSITION RECTANGULAR SINGLE MOUNTING FACILITY |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.090 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 0.900 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| III HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| III PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | CONTACT SURFACE GOLD |
Restrictions/Controls & Freight Information | NSN 5930-01-136-8239
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZF | France ZG ZH |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5930-01-136-8239
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
