NSN 5915-01-392-7648 1586483, 1VK3, 01-392-7648
Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-01-392-7648 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: 1586483, 1VK3, 5915-01-392-7648, 01-392-7648, 5915013927648, 013927648
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 JUL 1994 | 01-392-7648 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
Drawings & Photos | NSN 5915-01-392-7648
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-01-392-7648
Technical Data | NSN 5915-01-392-7648
| Characteristic | Specifications |
|---|---|
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 5 WIRE LEAD INPUT-OUTPUT |

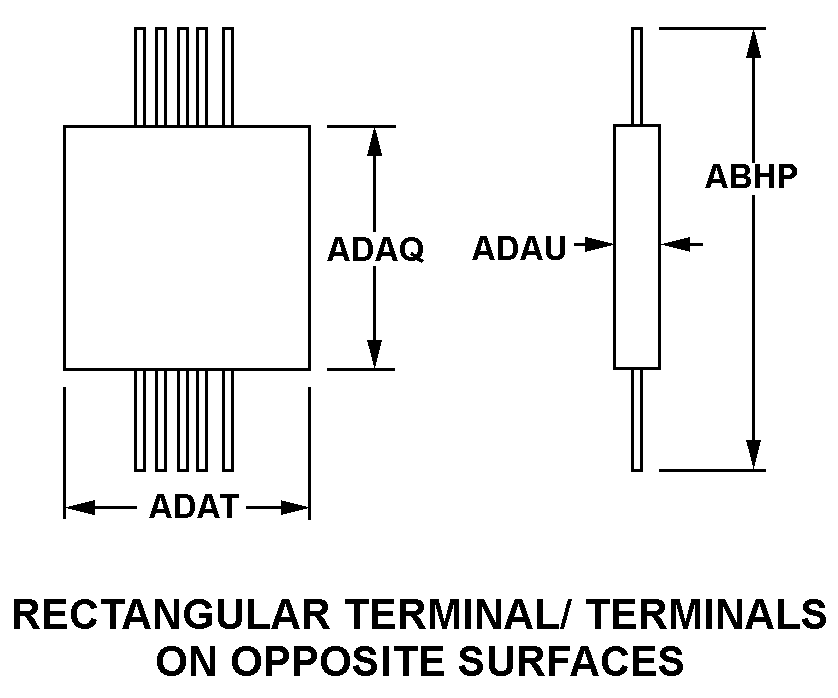

| STYLE DESIGNATOR | 39 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 2.810 INCHES NOMINAL |
| BODY HEIGHT | 0.910 INCHES NOMINAL |
| BODY WIDTH | 1.810 INCHES NOMINAL |
| SPECIAL FEATURES | CURRENT 1 AMP; 120/250 VAC 50/60 HZ; 1 MA CURRENT LEAKAGE AT 250 VAC |
Restrictions/Controls & Freight Information | NSN 5915-01-392-7648
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
