NSN 5915-00-503-2240 S3631108PT1, S363-1108PT1, E1660
Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-00-503-2240 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: S3631108PT1, S363-1108PT1, E1660, E-1660, JX55H, 1601, 3631108PT1, 363-1108PT1, 5206, 5915-00-503-2240, 00-503-2240, 5915005032240, 005032240
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-503-2240 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
Drawings & Photos | NSN 5915-00-503-2240
Demand History | NSN 5915-00-503-2240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5206 | 2011-12-348 | 2 | UM |
| 1601 | 2011-06-165 | 5 |
Cross Reference | NSN 5915-00-503-2240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1601 | 21966 | TDL, INC DBA T D L |
| 363-1108PT1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 363-1108PT1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 5206 | 23160 | LINDGREN RF ENCLOSURES INC ELMAG DIV |
| E-1660 | 23160 | LINDGREN RF ENCLOSURES INC ELMAG DIV |
| JX55H | 56289 | SPRAGUE ELECTRIC CO WORLD HQS |
| S363-1108PT1 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| S363-1108PT1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-503-2240
Technical Data | NSN 5915-00-503-2240
| Characteristic | Specifications |
|---|---|
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 125.0 VOLTS AC BLANK AND 300.0 VOLTS DC BLANK |
| POWER LINE FREQUENCY RATING PER FUNCTION IN HERTZ | 400.0 BLANK |
| OPERATING CURRENT RATING PER FUNCTION IN AMPS | 4.0 BLANK AND 4.0 BLANK |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 THREADED STUD INPUT 1 THREADED STUD OUTPUT |

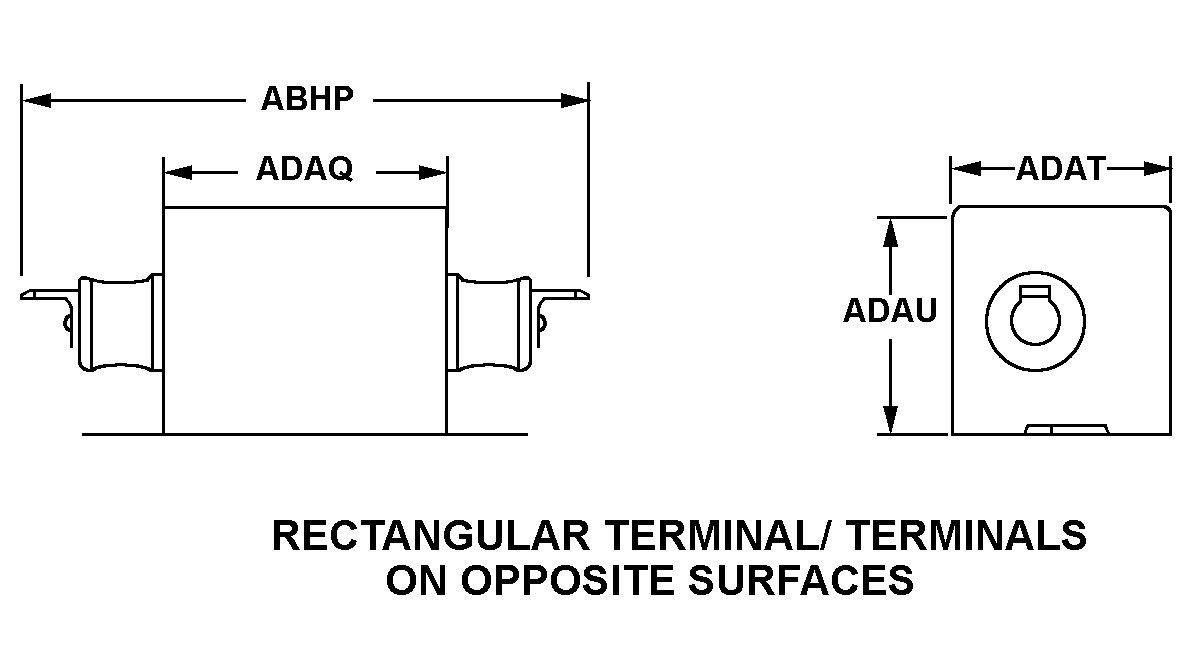

| STYLE DESIGNATOR | 5 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 2.936 INCHES NOMINAL |
| BODY LENGTH | 1.812 INCHES NOMINAL |
| BODY HEIGHT | 0.750 INCHES NOMINAL |
| BODY WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.125 INCHES NOMINAL |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | CAPACITANCE-INDUCTANCE BLANK |
| III MAXIMUM DIELECTRIC WITHSTANDING DC VOLTAGE | 600.0 VOLTS AT SEA LEVEL |
| III OPERATING TEMP RANGE | -60.0 TO 75.0 DEG CELSIUS |
| III BODY SURFACE TREATMENT | TIN |
Restrictions/Controls & Freight Information | NSN 5915-00-503-2240
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
