NSN 5915-00-879-6283 FA00724A , FA724A, FC 1005
Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-00-879-6283 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: FA00724A , FA724A, FC 1005, FC1005, 10189666 , 225840, 22-5840, 5915-00-879-6283, 00-879-6283, 5915008796283, 008796283
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-879-6283 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |

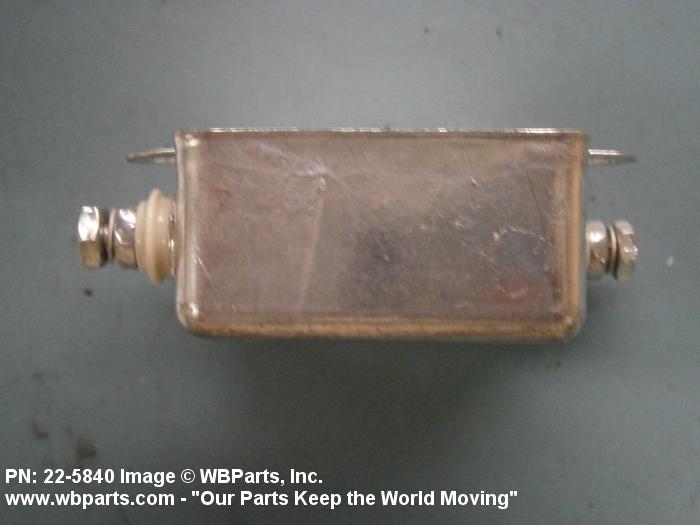

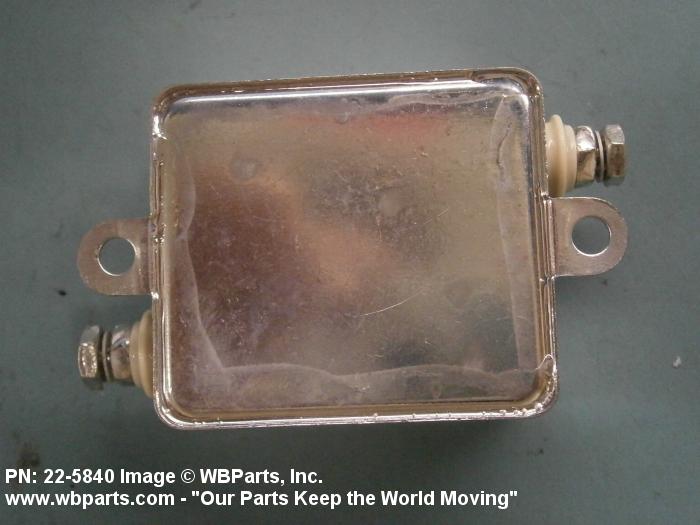

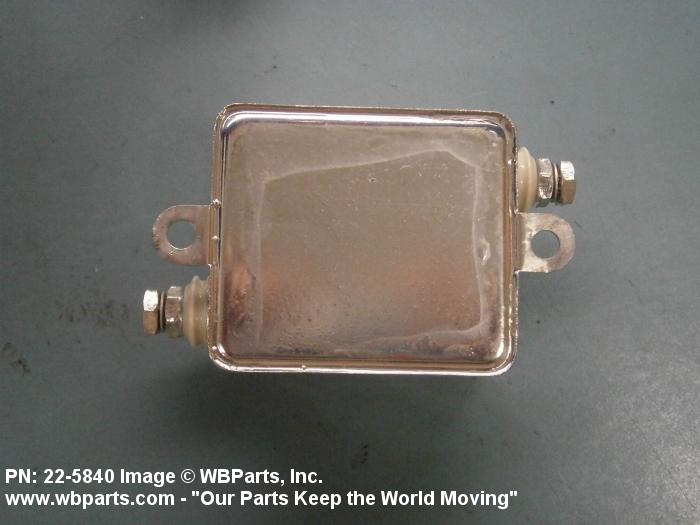

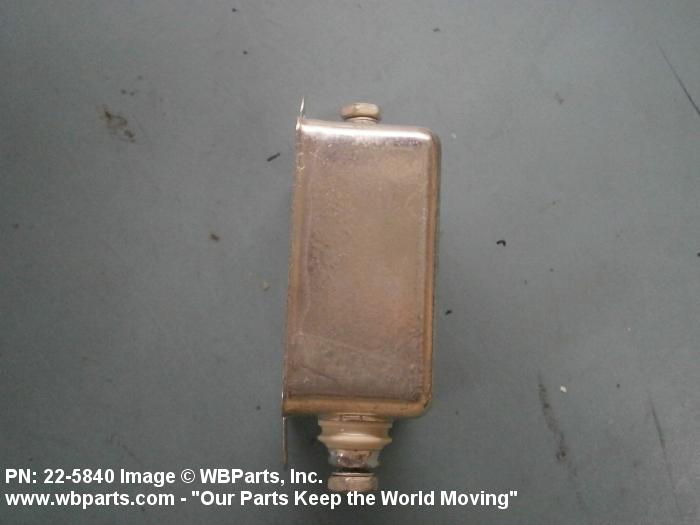

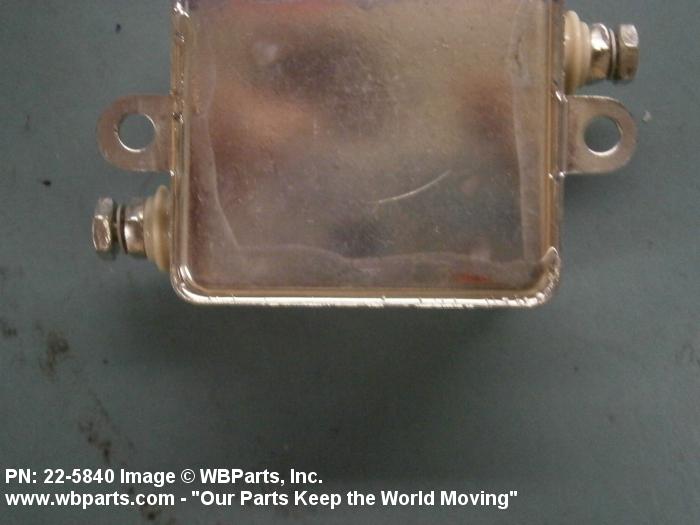

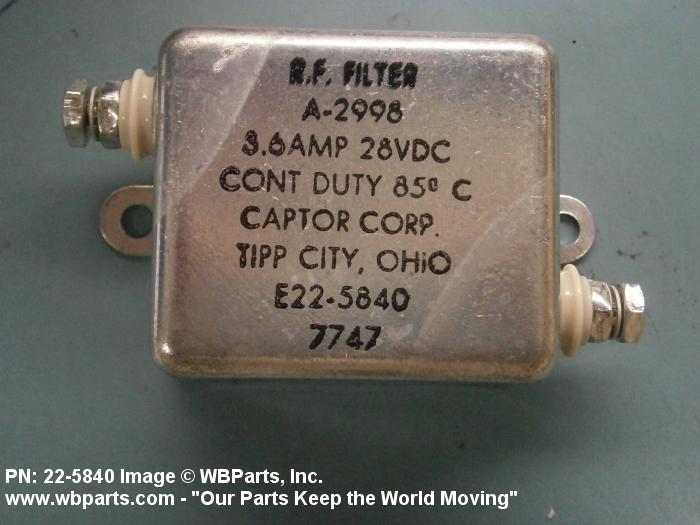

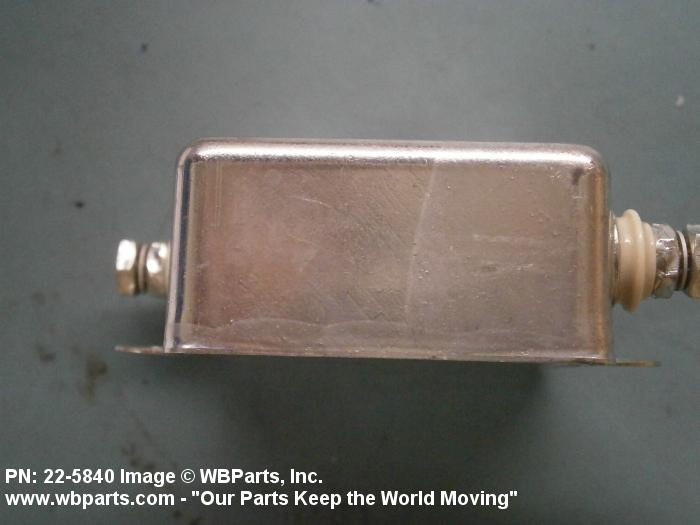

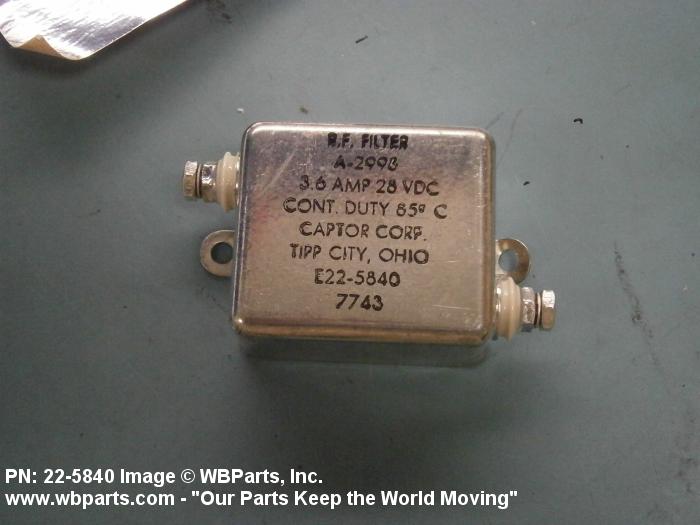

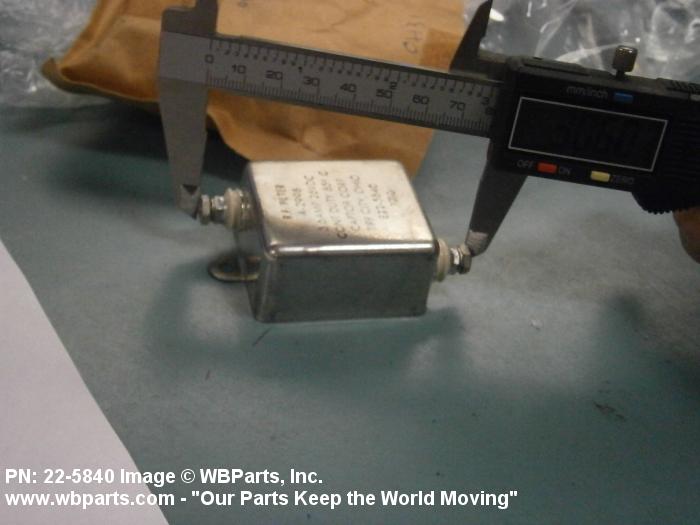

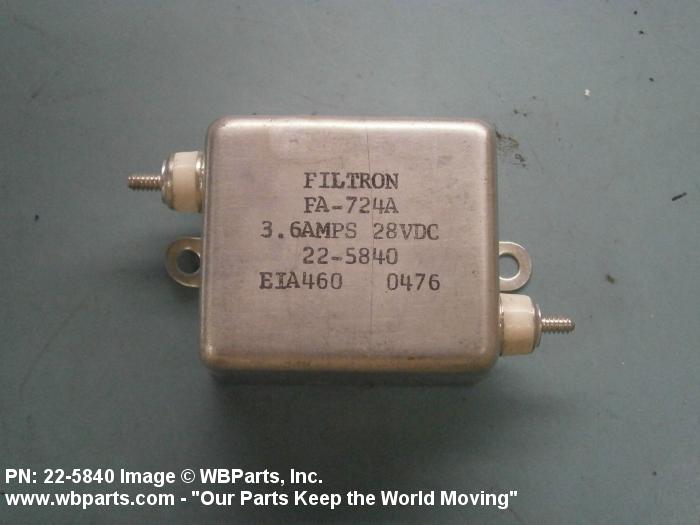

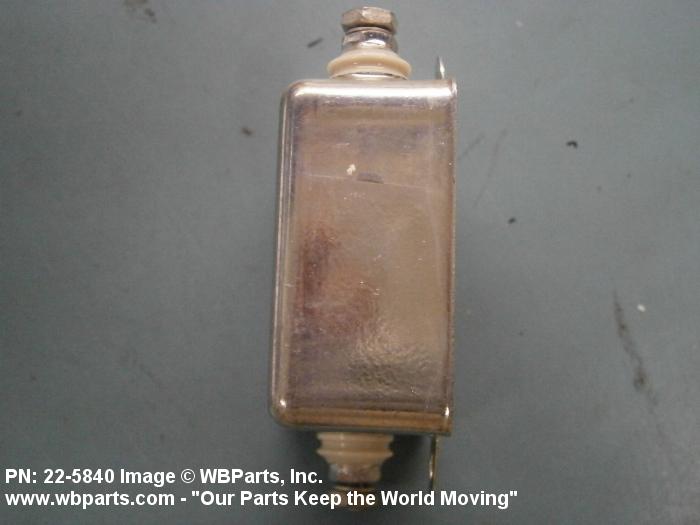

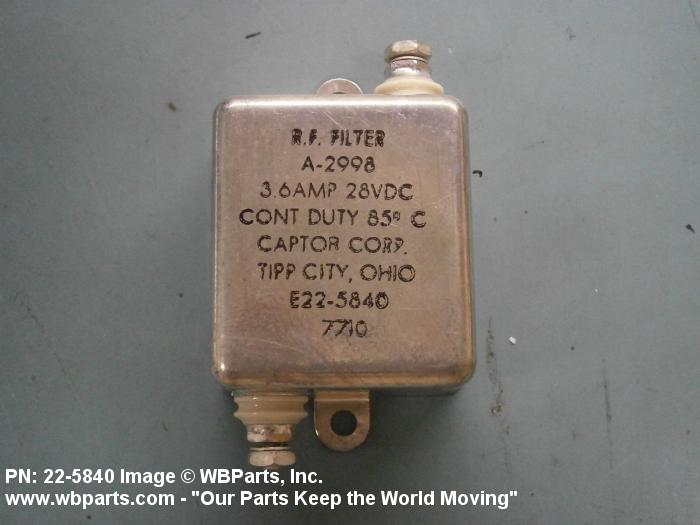

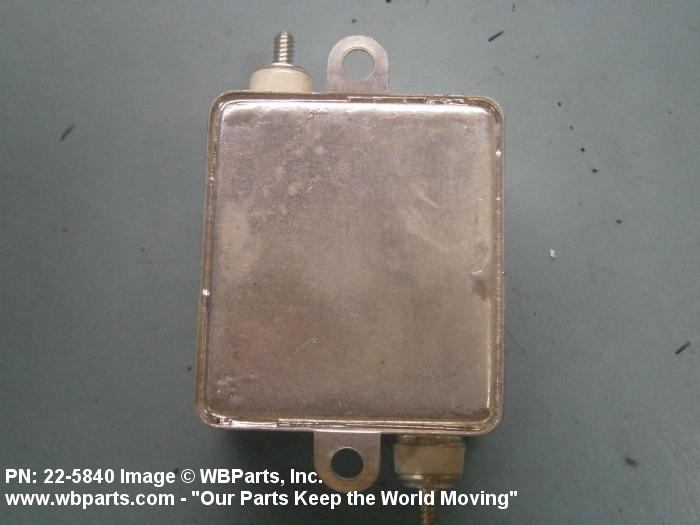

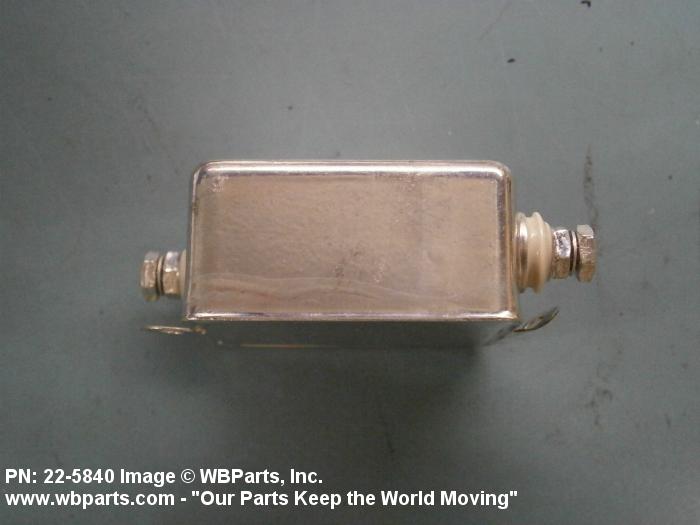

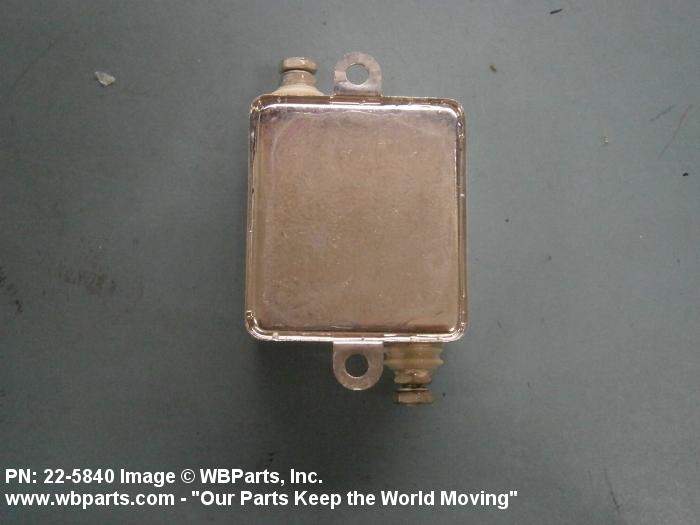

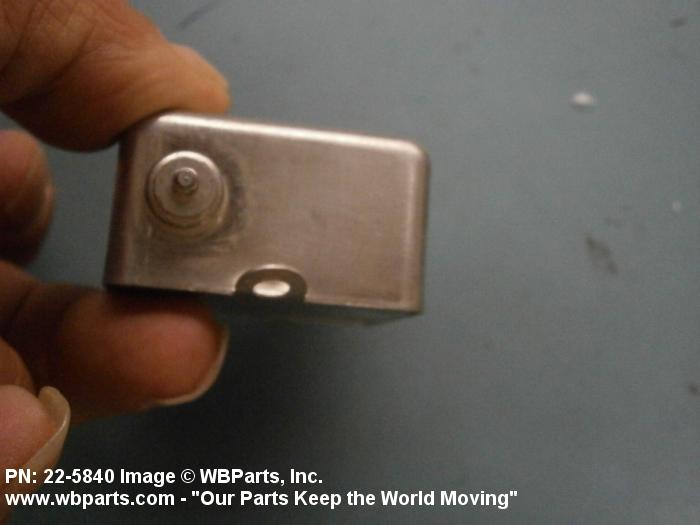

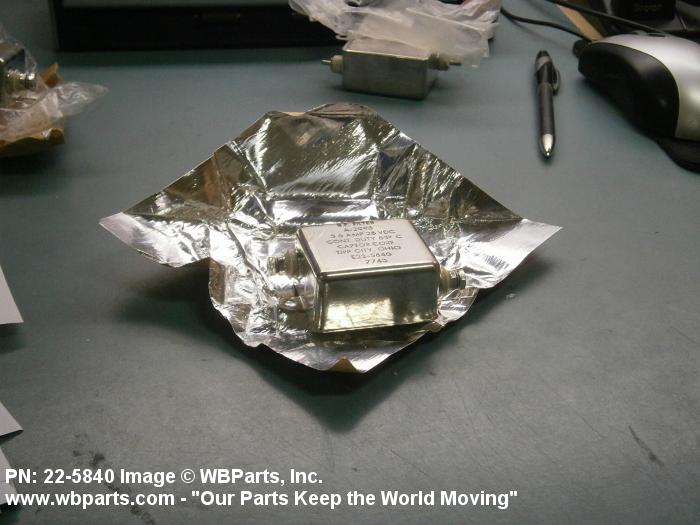

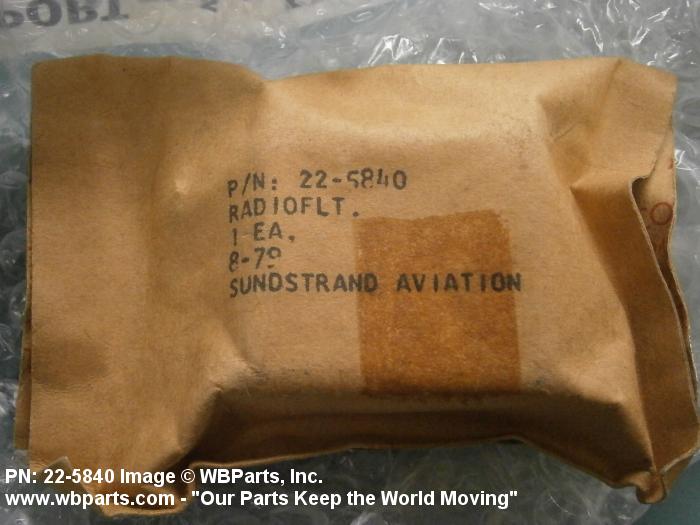

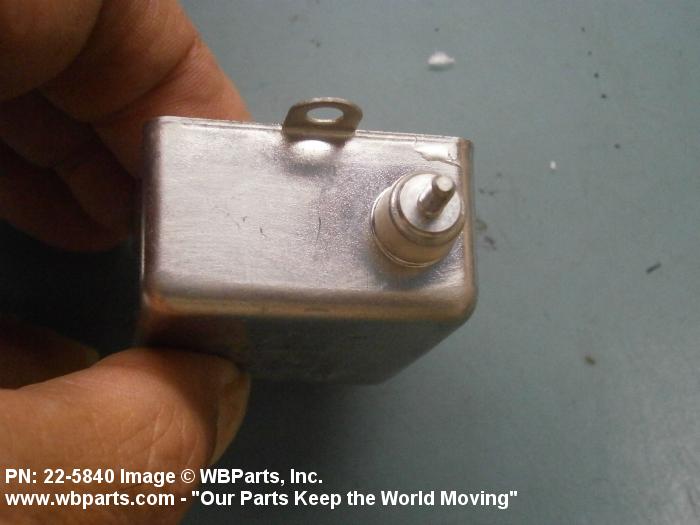

Drawings & Photos | NSN 5915-00-879-6283
Demand History | NSN 5915-00-879-6283
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 22-5840 | 2024-07-212 | 14 | DIBBS |
| FA00724A | 2024-07-212 | 14 | DIBBS |
| FC 1005 | 2024-07-212 | 14 | DIBBS |
| 22-5840 | 2024-05-123 | 14 | DIBBS |
| FA00724A | 2024-05-123 | 14 | DIBBS |
| FC 1005 | 2024-05-123 | 14 | DIBBS |
| 22-5840 | 2023-11-334 | 3 | DIBBS |
| FA00724A | 2023-11-334 | 3 | DIBBS |
| FC 1005 | 2023-11-334 | 3 | DIBBS |
| 22-5840 | 2023-07-208 | 3 | DIBBS |
| FA00724A | 2023-07-208 | 3 | DIBBS |
| FC 1005 | 2023-07-208 | 3 | DIBBS |
| FC1005 | 2023-04-104 | 4 | US |
| 22-5840 | 2022-03-73 | 4 | DIBBS |
| FA00724A | 2022-03-73 | 4 | DIBBS |
| FC 1005 | 2022-03-73 | 4 | DIBBS |
| 22-5840 | 2022-02-46 | 4 | DIBBS |
| FA00724A | 2022-02-46 | 4 | DIBBS |
| FC 1005 | 2022-02-46 | 4 | DIBBS |
| 5915-00-879-6283 | 2021-05-132 | 3 | us |
| 22-5840 | 2020-01-30 | 14 | DIBBS |
| FA00724A | 2020-01-30 | 14 | DIBBS |
| FC 1005 | 2020-01-30 | 14 | DIBBS |
| 5915-00-879-6283 | 2018-05-130 | 2 | DIBBS |
| 5915-00-879-6283 | 2017-11-326 | 1 | United States |
| 225840 | 2017-08-243 | 1 | United States |
| 5915-00-879-6283 | 2017-08-243 | 1 | United States |
| 5915-00-879-6283 | 2017-08-237 | 1 | United States |
| 5915-00-879-6283 | 2017-06-179 | 1 | United States |
| 5915-00-879-6283 | 2014-04-117 | 4 | DIBBS |
| 5915-00-879-6283 | 2014-02-41 | 3 | DIBBS |
| 5915-00-879-6283 | 2013-07-182 | 4 | United States |
Cross Reference | NSN 5915-00-879-6283
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22-5840 | 45934 | ONTIC ENGINEERING AND MANUFACTURING, INC. |
| 22-5840 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| FA00724A | 13619 | EMS DEVELOPMENT CORPORATION |
| FA724A | 13619 | EMS DEVELOPMENT CORPORATION |
| FA724A | 81831 | FILTRON CO INC DIV OF RFI CORP |
| FC 1005 | 13619 | EMS DEVELOPMENT CORPORATION |
| FC 1005 | 56528 | FIL-COIL (FC) INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-00-879-6283
Related Products | NSN 5915-00-879-6283
Technical Data | NSN 5915-00-879-6283
| Characteristic | Specifications |
|---|---|
| OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 28.0 VOLTS DC BLANK |
| OPERATING CURRENT RATING PER FUNCTION IN AMPS | 3.6 BLANK |
| MAXIMUM VOLTAGE DROP PER FUNCTION | 0.2 MILLIVOLTS DC BLANK |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 THREADED STUD INPUT 1 THREADED STUD OUTPUT |
| STYLE DESIGNATOR | 5 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 2.889 INCHES MINIMUM AND 3.011 INCHES MAXIMUM |
| BODY LENGTH | 1.969 INCHES MINIMUM AND 2.031 INCHES MAXIMUM |
| BODY HEIGHT | 1.719 INCHES MINIMUM AND 1.781 INCHES MAXIMUM |
| BODY WIDTH | 0.969 INCHES MINIMUM AND 1.081 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.360 INCHES MINIMUM AND 2.390 INCHES MAXIMUM |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | INDUCTANCE-CAPACITANCE BLANK |
Restrictions/Controls & Freight Information | NSN 5915-00-879-6283
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Hazardous Control Code: | V1 | Miscellaneous Hazardous Materials - Class 9 MISC HAZ MATL CLASS 9 |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061990 | ELECTRICAL EQUIP:FILTERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5915-00-879-6283
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
