NSN 5915-01-029-6470 EMIF0383, EMI-F-0383, 1058895
Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-01-029-6470 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: EMIF0383, EMI-F-0383, 1058895, 5915-01-029-6470, 01-029-6470, 5915010296470, 010296470
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 OCT 1976 | 01-029-6470 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
Drawings & Photos | NSN 5915-01-029-6470
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-01-029-6470
Technical Data | NSN 5915-01-029-6470
| Characteristic | Specifications |
|---|---|
| SOURCE IMPEDANCE RATING PER FUNCTION | 3.2 OHMS 1ST RADIO INTERFERENCE 3.2 OHMS 2ND RADIO INTERFERENCE |
| LOAD IMPEDANCE PER FUNCTION | 3.2 OHMS 1ST RADIO INTERFERENCE 3.2 OHMS 2ND RADIO INTERFERENCE |
| OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 28.0 VOLTS DC 1ST RADIO INTERFERENCE 28.0 VOLTS DC 2ND RADIO INTERFERENCE |
| OPERATING CURRENT RATING PER FUNCTION IN AMPS | 30.0 1ST RADIO INTERFERENCE 30.0 2ND RADIO INTERFERENCE |
| MAXIMUM VOLTAGE DROP PER FUNCTION | 1.0 VOLTS DC 1ST RADIO INTERFERENCE 1.0 VOLTS DC 2ND RADIO INTERFERENCE |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE INPUT 2 THREADED STUD OUTPUT 1 THREADED STUD GROUND |

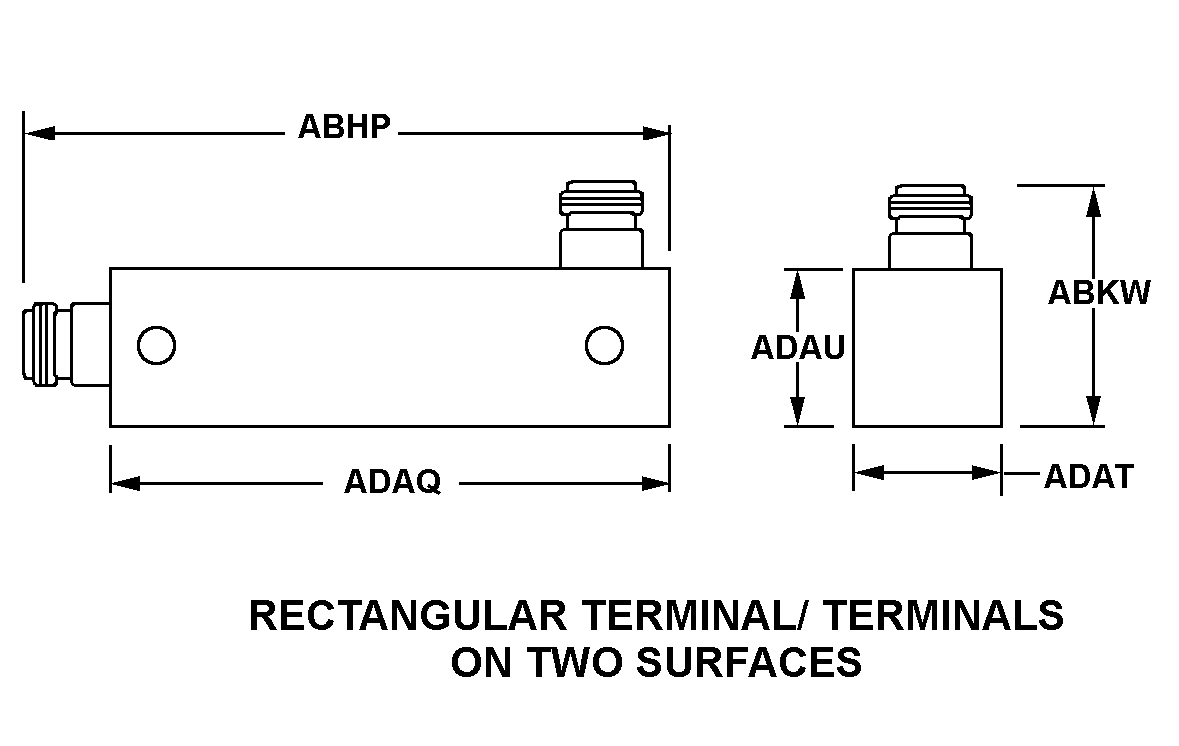

| STYLE DESIGNATOR | 27 RECTANGULAR TERMINAL/TERMINALS ON TWO SURFACES |
| OVERALL LENGTH | 11.380 INCHES MAXIMUM |
| OVERALL HEIGHT | 2.712 INCHES NOMINAL |
| BODY LENGTH | 10.000 INCHES NOMINAL |
| BODY HEIGHT | 2.000 INCHES NOMINAL |
| BODY WIDTH | 4.500 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 THREADED HOLE |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 9.000 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 3.150 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | INDUCTANCE-CAPACITANCE 1ST RADIO INTERFERENCE INDUCTANCE-CAPACITANCE 2ND RADIO INTERFERENCE |
| III MAXIMUM TEMP RISE | 20.0 DEG CELSIUS |
| III INPUT TERMINAL MANUFACTURER CODE | 96906 |
| III INPUT TERMINAL IDENTIFICATION | MS3102R-20-15PW |
| III MAXIMUM DIELECTRIC WITHSTANDING DC VOLTAGE | 200.0 VOLTS AT SEA LEVEL |
| III OPERATING TEMP RANGE | -10.0 TO 85.0 DEG CELSIUS |
| III BODY MATERIAL | METAL |
| III BODY SURFACE TREATMENT | TIN |
Restrictions/Controls & Freight Information | NSN 5915-01-029-6470
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061990 | ELECTRICAL EQUIP:FILTERS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5915-01-029-6470
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
