NSN 5915-01-023-9812 GF55637, RF07502, RF7502
Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-01-023-9812 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: GF55637, RF07502, RF7502, RMEF0098, RME-F-0098, 1M1551, 1M155-1, 5915-01-023-9812, 01-023-9812, 5915010239812, 010239812
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 JUL 1976 | 01-023-9812 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
Drawings & Photos | NSN 5915-01-023-9812
Cross Reference | NSN 5915-01-023-9812
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1M155-1 | 22915 | NORTHROP GRUMMAN CORP ELECTRONIC SYSTEMS DEFENSIVE SYSTEM |
| GF55637 | 07294 | GENISCO FILTER CORP. |
| GF55637 | 13050 | SPECTRUM CONTROL, INC. DIV API TECHNOLOGIES - EIS/WESSON |
| RF07502 | 13619 | EMS DEVELOPMENT CORPORATION |
| RF7502 | 13619 | EMS DEVELOPMENT CORPORATION |
| RME-F-0098 | 0S2B1 | RME FILTERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-01-023-9812
Technical Data | NSN 5915-01-023-9812
| Characteristic | Specifications |
|---|---|
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS 1ST RADIO INTERFERENCE 50.0 OHMS 2ND RADIO INTERFERENCE |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS 1ST RADIO INTERFERENCE 50.0 OHMS 2ND RADIO INTERFERENCE |
| OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 115.0 VOLTS AC 1ST RADIO INTERFERENCE 115.0 VOLTS AC 2ND RADIO INTERFERENCE |
| POWER LINE FREQUENCY RATING PER FUNCTION IN HERTZ | 400.0 1ST RADIO INTERFERENCE 400.0 2ND RADIO INTERFERENCE |
| OPERATING CURRENT RATING PER FUNCTION IN AMPS | 6.0 1ST RADIO INTERFERENCE 1.5 2ND RADIO INTERFERENCE |
| MAXIMUM VOLTAGE DROP PER FUNCTION | 1.0 VOLTS AC 1ST RADIO INTERFERENCE 1.0 VOLTS AC 1ST RADIO INTERFERENCE |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG INPUT 2 TAB, SOLDER LUG OUTPUT 8 TAB, SOLDER LUG GROUND |

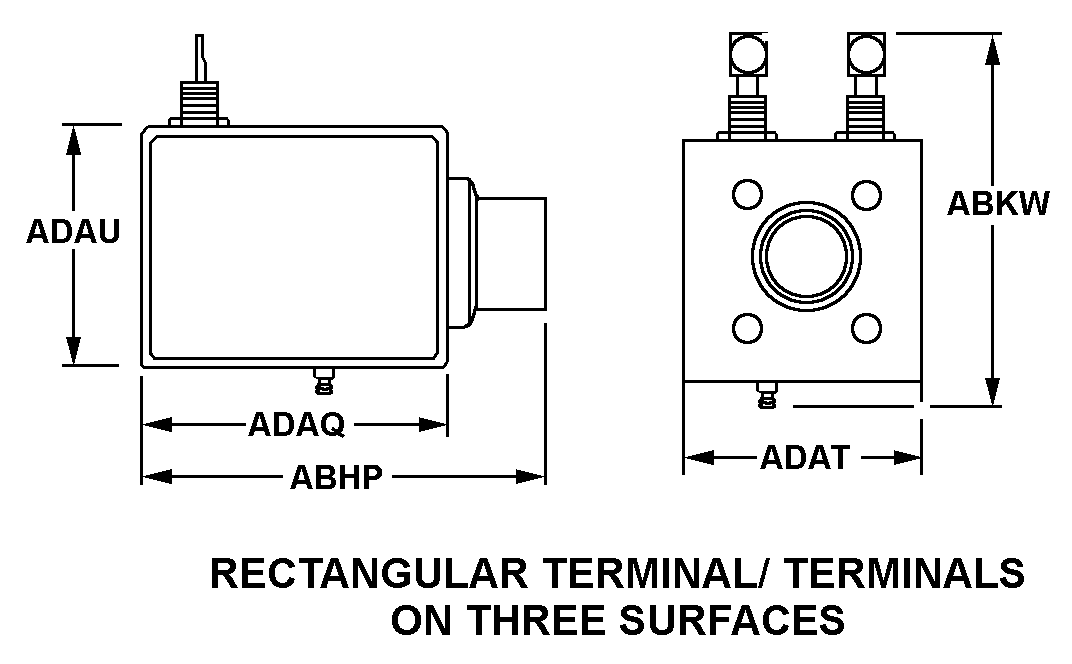

| STYLE DESIGNATOR | 36 RECTANGULAR TERMINAL/TERMINALS ON THREE SURFACES |
| OVERALL LENGTH | 4.625 INCHES NOMINAL |
| OVERALL HEIGHT | 6.906 INCHES NOMINAL |
| BODY LENGTH | 3.281 INCHES NOMINAL |
| BODY HEIGHT | 6.120 INCHES NOMINAL |
| BODY WIDTH | 3.060 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 5 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.187 INCHES NOMINAL |
| III AVERAGE LIFE RATING IN HOURS | 1000.0 |
| III BODY MATERIAL | METAL |
