NSN 5915-00-931-3757 1270025, 1270-025, 193162
Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-00-931-3757 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: 1270025, 1270-025, 193162, 193-16-2, 51714004, 51-714-004, 5L.5365.001.23, 5L536500123, 5L5365-001-23, 6L.5351.007.00-152777, 6L535100700152777, 5915-00-931-3757, 00-931-3757, 5915009313757, 009313757
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 SEP 1966 | 00-931-3757 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
Drawings & Photos | NSN 5915-00-931-3757
Cross Reference | NSN 5915-00-931-3757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1270-025 | 12294 | MURATA ERIE NORTH AMERICA INC DIVOF MURATA ERIE |
| 193-16-2 | 25549 | LITTON SYSTEMS INC AMECOM DIV |
| 193-16-2 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| 51-714-004 | 0LSP2 | SPECTRUM CONTROL, INC. DBA ELECTROMAGNETIC DIVISION |
| 51-714-004 | 33095 | SPECTRUM CONTROL, INC. DBA API TECHNOLOGIES |
| 5L.5365.001.23 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 5L5365-001-23 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 6L.5351.007.00-152777 | D0327 | SELEX COMMUNICATIONS GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5915-00-931-3757
Related Products | NSN 5915-00-931-3757
Technical Data | NSN 5915-00-931-3757
| Characteristic | Specifications |
|---|---|
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 200.0 VOLTS DC BLANK |
| OPERATING CURRENT RATING PER FUNCTION IN AMPS | 10.0 BLANK |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 TURRET INPUT 1 PIN OUTPUT |

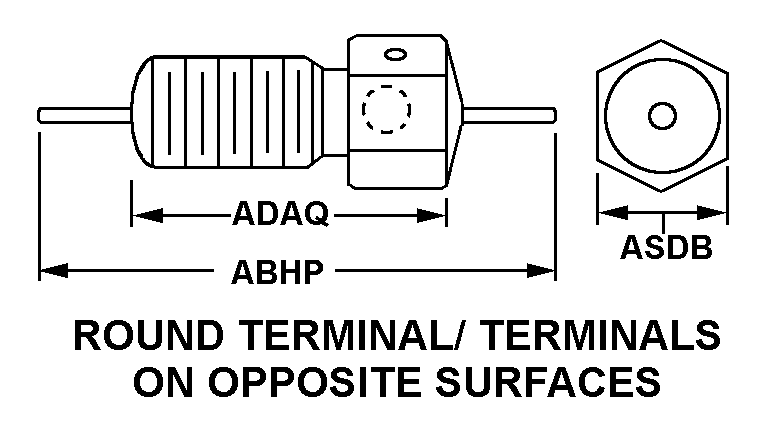

| STYLE DESIGNATOR | 35 ROUND TERMINAL/TERMINALS ON OPPOSITE SURFACES |
