Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-00-409-0112 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: FL0880, GF7357, 9052201, 905220-1, 2739900075, 27-3-99-00075, 5915-00-409-0112, 00-409-0112, 5915004090112, 004090112
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUL 1970 | 00-409-0112 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
Drawings & Photos | NSN 5915-00-409-0112
Cross Reference | NSN 5915-00-409-0112
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-409-0112
Technical Data | NSN 5915-00-409-0112
| Characteristic | Specifications |
|---|---|
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS 1ST RADIO INTERFERENCE 50.0 OHMS 2ND RADIO INTERFERENCE |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS 1ST RADIO INTERFERENCE 50.0 OHMS 2ND RADIO INTERFERENCE |
| OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 115.0 VOLTS AC 1ST RADIO INTERFERENCE 115.0 VOLTS AC 2ND RADIO INTERFERENCE |
| POWER LINE FREQUENCY RATING PER FUNCTION IN HERTZ | 400.0 1ST RADIO INTERFERENCE 400.0 2ND RADIO INTERFERENCE |
| OPERATING CURRENT RATING PER FUNCTION IN AMPS | 3.5 1ST RADIO INTERFERENCE 3.5 2ND RADIO INTERFERENCE |
| MAXIMUM VOLTAGE DROP PER FUNCTION | 1.0 VOLTS AC 1ST RADIO INTERFERENCE 1.0 VOLTS AC 2ND RADIO INTERFERENCE |
| INCLOSURE TYPE | HERMETICALLY SEALED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG INPUT 2 TAB, SOLDER LUG OUTPUT 2 TURRET GROUND |

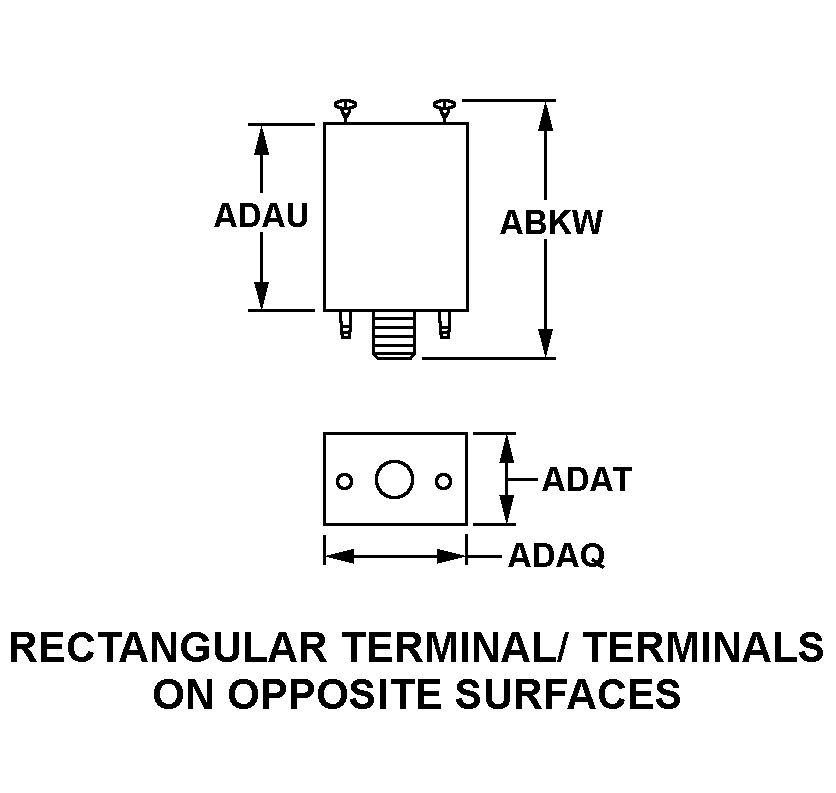

| STYLE DESIGNATOR | 20 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL HEIGHT | 2.380 INCHES MAXIMUM |
| BODY LENGTH | 3.000 INCHES MAXIMUM |
| BODY HEIGHT | 1.500 INCHES MAXIMUM |
| BODY WIDTH | 2.130 INCHES MAXIMUM |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED HOLE |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.500 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 1.625 INCHES NOMINAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | INDUCTANCE-CAPACITANCE 1ST RADIO INTERFERENCE INDUCTANCE-CAPACITANCE 2ND RADIO INTERFERENCE |
| III VIBRATION RESISTANCE RANGE IN HERTZ | 10.0 TO 500.0 |
| III OPERATING TEMP RANGE | -55.0 TO 95.0 DEG CELSIUS |
