NSN 5915-00-153-8486 RN163, 00-153-8486, 001538486
Product Details | RADIO FREQUENCY INTERFERENCE FILTER
5915-00-153-8486 An item designed to suppress undesired (interfering) frequencies and have a minimal effect on the desired frequencies when inserted in an electrical power circuit. Excludes items which consist of a single capacitor, inductor, resistor, or devices consisting of only two or more circuit elements of the same basic name. Excludes FILTER, LOW PASS and SUPPRESSOR, IGNITION INTERFERENCE. For items designed to be inserted in a line which is primarily intended to carry high frequency waves modulated with signals, such as antenna lead-in, see FILTER, BAND SUPPRESSION and FILTER, BAND PASS. See also LIMITER, ELECTRICAL NOISE.
Part Alternates: RN163, 5915-00-153-8486, 00-153-8486, 5915001538486, 001538486
Electrical and Electronic Equipment Components | Filters and Networks
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 AUG 1972 | 00-153-8486 | 00765 ( FILTER, RADIO FREQUENCY INTERFERENCE ) |
Drawings & Photos | NSN 5915-00-153-8486
Cross Reference | NSN 5915-00-153-8486
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RN163 | 19130 | RTRON CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5915-00-153-8486
Technical Data | NSN 5915-00-153-8486
| Characteristic | Specifications |
|---|---|
| SOURCE IMPEDANCE RATING PER FUNCTION | 50.0 OHMS BLANK |
| LOAD IMPEDANCE PER FUNCTION | 50.0 OHMS BLANK |
| OPERATING VOLTAGE RATING AND TYPE PER FUNCTION | 440.0 VOLTS AC BLANK |
| POWER LINE FREQUENCY RATING PER FUNCTION IN HERTZ | 60.0 BLANK |
| OPERATING CURRENT RATING PER FUNCTION IN AMPS | 106.0 BLANK |
| MAXIMUM VOLTAGE DROP PER FUNCTION | 4.4 VOLTS AC BLANK |
| INCLOSURE TYPE | ENCASED |
| FUNCTIONAL TERMINAL TYPE AND QUANTITY | 1 THREADED STUD INPUT 1 THREADED STUD OUTPUT |

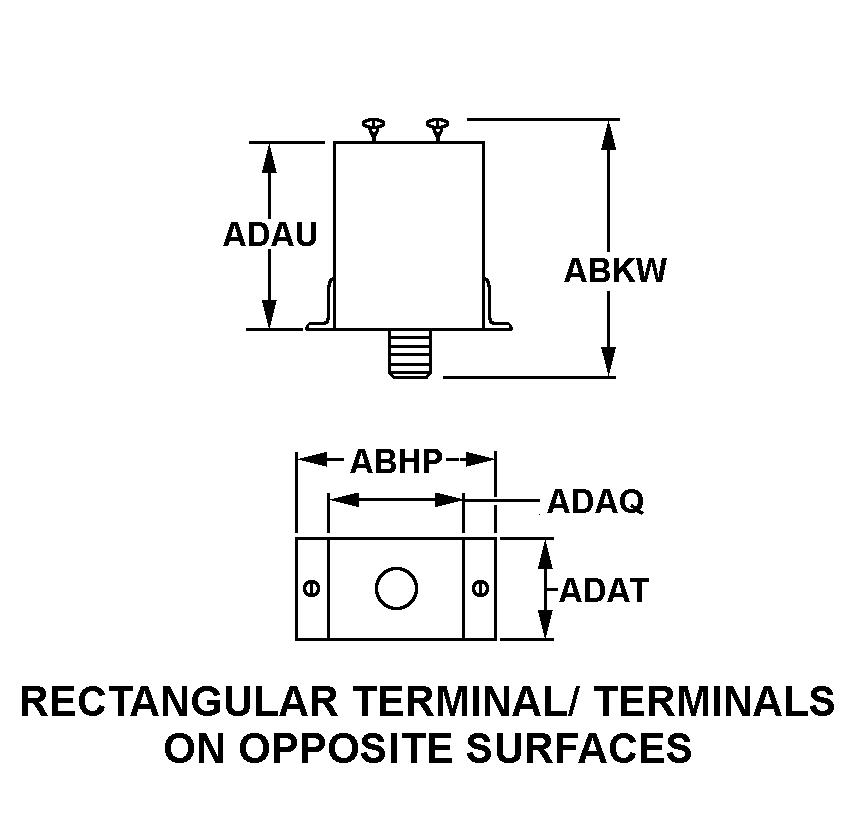

| STYLE DESIGNATOR | 23 RECTANGULAR TERMINAL/TERMINALS ON OPPOSITE SURFACES |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 5.750 INCHES NOMINAL |
| BODY LENGTH | 2.000 INCHES NOMINAL |
| BODY HEIGHT | 4.500 INCHES NOMINAL |
| BODY WIDTH | 2.000 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.199 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.000 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH | 2.000 INCHES NOMINAL |
| FEATURES PROVIDED | NUT |
| III PRINCIPAL CIRCUITRY TYPE PER FUNCTION | INDUCTANCE-CAPACITANCE BLANK |
| III MAXIMUM TEMP RISE | 85.0 DEG CELSIUS |
| III MAXIMUM DIELECTRIC WITHSTANDING DC VOLTAGE | 1.0 KILOVOLTS AT SEA LEVEL |
| III VIBRATION RESISTANCE RANGE IN HERTZ | 10.0 TO 500.0 |
| III OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| III BODY MATERIAL | METAL |
