NSN 5910-01-336-3910 9033D422, 9033D42-2, 935A3341
Product Details | PAPER-PLASTIC DIELECTRI METALLIZED FIXED CAPACITOR
5910-01-336-3910 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Part Alternates: 9033D422, 9033D42-2, 935A3341, 935A334-1, 5910-01-336-3910, 01-336-3910, 5910013363910, 013363910
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 MAR 1991 | 01-336-3910 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |

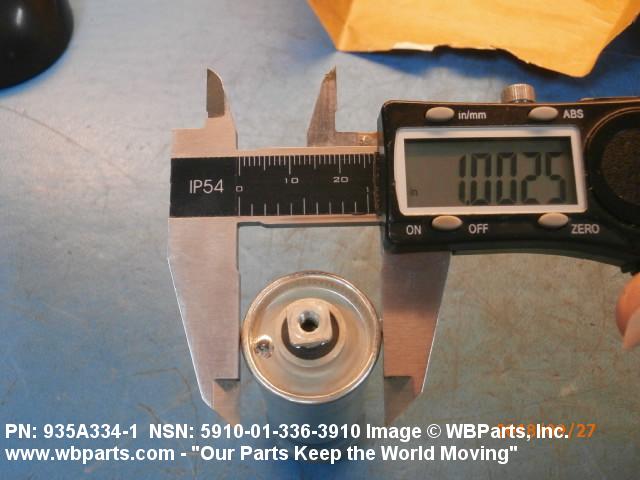

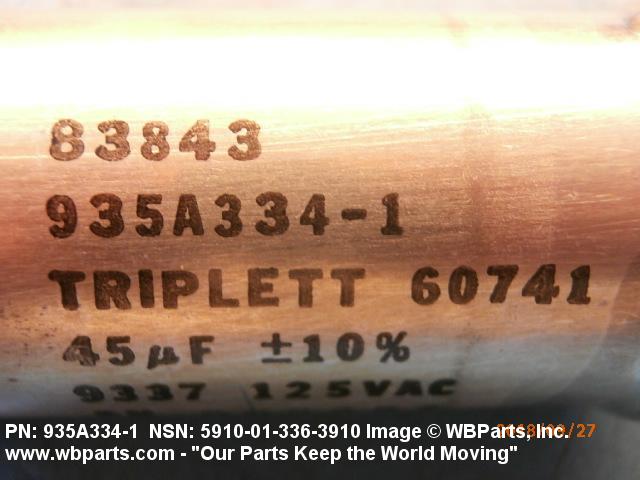

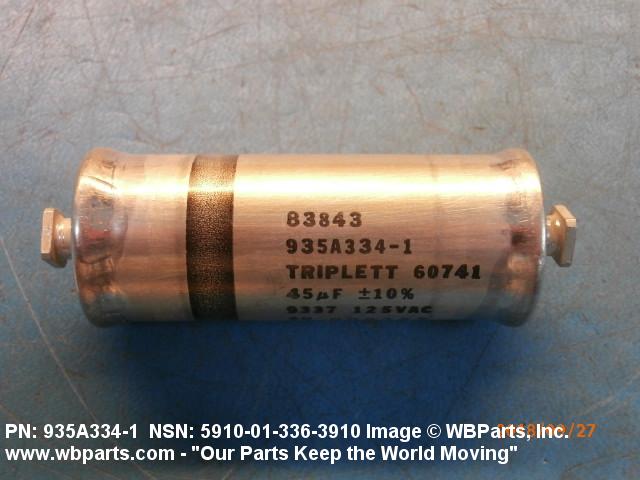

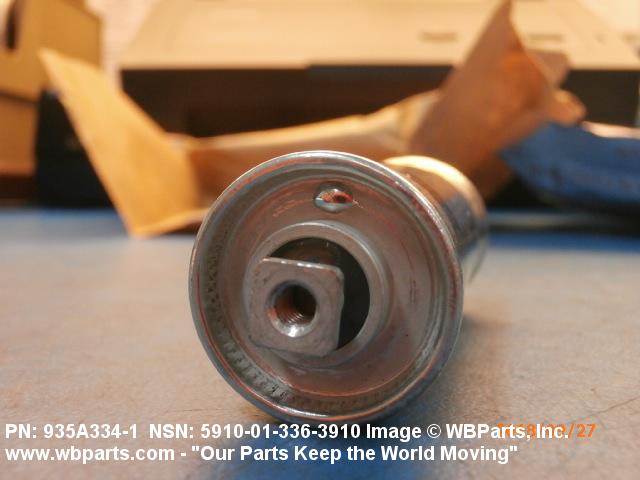

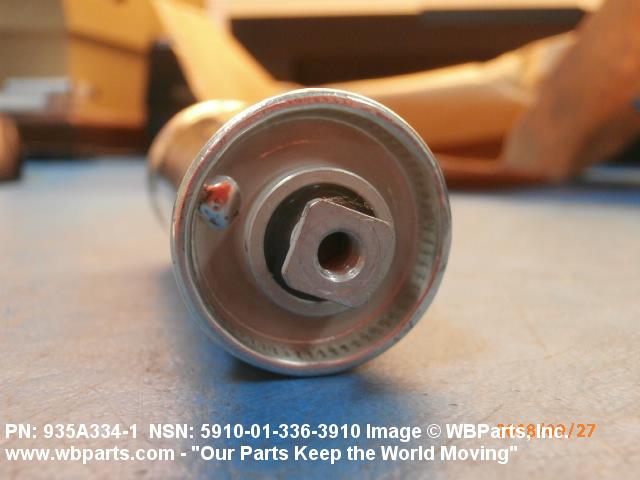

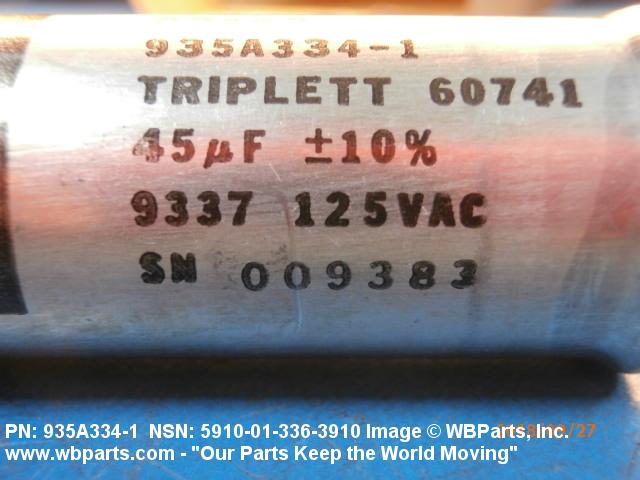

Drawings & Photos | NSN 5910-01-336-3910
Demand History | NSN 5910-01-336-3910
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-01-336-3910 | 2023-09-250 | 5 | Taiwan |
| 5910-01-336-3910 | 2018-11-317 | 200 | Taiwan |
| 5910-01-336-3910 | 2018-09-250 | 10 | Taiwan |
| 5910-01-336-3910 | 2015-09-265 | 9 | DIBBS |
| 5910-01-336-3910 | 2014-01-02 | 2000 | US |
| 5910-01-336-3910 | 2013-01-17 | 20 | us |
| 5910-01-336-3910 | 2011-08-216 | 100 | US |
| 5910-01-336-3910 | 2011-07-207 | 10 | US |
| 5910-01-336-3910 | 2010-12-350 | 20 | United Kingdom |
| 5910-01-336-3910 | 2009-05-138 | 30 | US |
| 935A3341 | 2009-02-57 | 30 | United States |
Cross Reference | NSN 5910-01-336-3910
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9033D42-2 | 01269 | WESTINGHOUSE SCIENCE & TECHNOLOGY CENTER |
| 9033D42-2 | 04808 | CURTISS-WRIGHT ELECTRO-MECHANICAL CORPORATION |
| 935A334-1 | 60741 | TRIPLETT BLUFFTON CORPORATION DBA LFE INSTRUMENTS |
| 935A334-1 | 83843 | SUNDSTRAND CORP ELECTRIC POWER SYSTEMS DIV |
| 935A334-1 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-336-3910
Related Products | NSN 5910-01-336-3910
Technical Data | NSN 5910-01-336-3910
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 45.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 125.0 AC-RMS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 105.0 DEG CELSIUS MAXIMUM |

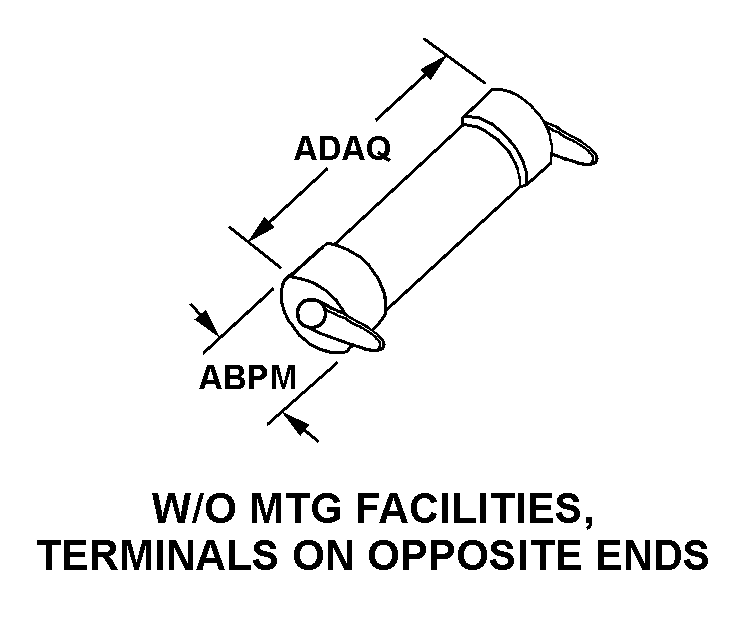

| BODY STYLE | 11B W/O MTG FACILITIES, TERMINALS ON OPPOSITE ENDS |
| BODY DIAMETER | 1.120 INCHES NOMINAL |
| BODY LENGTH | 2.553 INCHES MINIMUM AND 2.563 INCHES MAXIMUM |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 STANDOFF, SOLDER STUD |
| TERMINAL HEIGHT FROM BODY | 0.264 INCHES MINIMUM AND 0.308 INCHES MAXIMUM |
| CASE MATERIAL | METAL |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| MANUFACTURERS CODE | 99167 |
| MFR SOURCE CONTROLLING REFERENCE | 935A334-1 |
Restrictions/Controls & Freight Information | NSN 5910-01-336-3910
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-01-336-3910
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | SR | ATTACKAIRCRAFT(AV8B) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
