NSN 5910-01-240-8020 MPC-23-1.00-50-5, MPC231005010, MPC-23-100-50-10
Product Details | PAPER-PLASTIC DIELECTRI METALLIZED FIXED CAPACITOR
5910-01-240-8020 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Part Alternates: MPC-23-1.00-50-5, MPC231005010, MPC-23-100-50-10, MPC23100505, CFR06ARA105JM, CFR06ARA105JP, CFR06ARA105KM, MIL-C-0055514/4, MILC00555144, MIL-C-55514/4, MILC555144, 5910-01-240-8020, 01-240-8020, 5910012408020, 012408020
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 SEP 1986 | 01-240-8020 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |

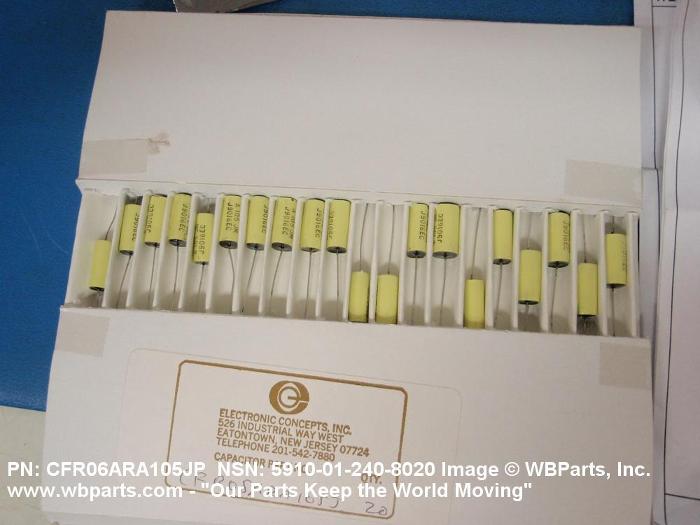

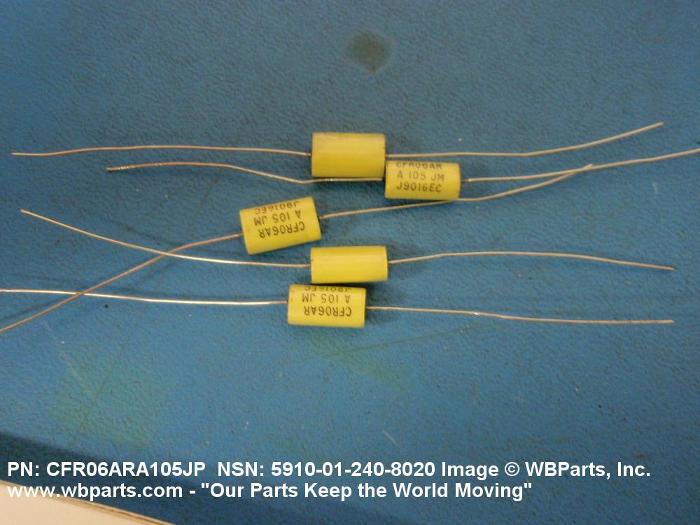

Drawings & Photos | NSN 5910-01-240-8020
Demand History | NSN 5910-01-240-8020
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5910-01-240-8020 | 2016-03-91 | 4 | DIBBS |
| 5910-01-240-8020 | 2014-01-07 | 4 | DIBBS |
| CFR06ARA105JP | 2011-05-137 | 25 | United States |
| CFR06ARA105KM | 2011-05-137 | 25 | United States |
| 5910-01-240-8020 | 2007-01-29 | 4 | DIBBS |
Cross Reference | NSN 5910-01-240-8020
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CFR06ARA105JM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CFR06ARA105JP | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CFR06ARA105KM | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-0055514/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-55514/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MPC-23-1.00-50-5 | 27735 | SOUTHERN ELECTRONICS CO INC |
| MPC-23-100-50-10 | 27735 | SOUTHERN ELECTRONICS CO INC |
