Product Details | CERAMIC DIELECTRIC VARIABLE CAPACITOR
5910-00-187-4419 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: CRL 822-AZ, CRL822AZ, TS2A500, 822CN, 9171026000, 917-1026-000, 01210106, 0121-0106, 0503001C0P037R, 0503-001C0P037R, 05920025013, 059-20025-013, 10193242003, 10193242-003, 320A121, 44A116, 503-001A4.5-25, 503001A4525, 503-001A4-5-25, 503001C0P037R, 503-001C0P037R, 5910-00-187-4419, 00-187-4419, 5910001874419, 001874419
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-187-4419 | 00721 ( CAPACITOR, VARIABLE, CERAMIC DIELECTRIC ) |

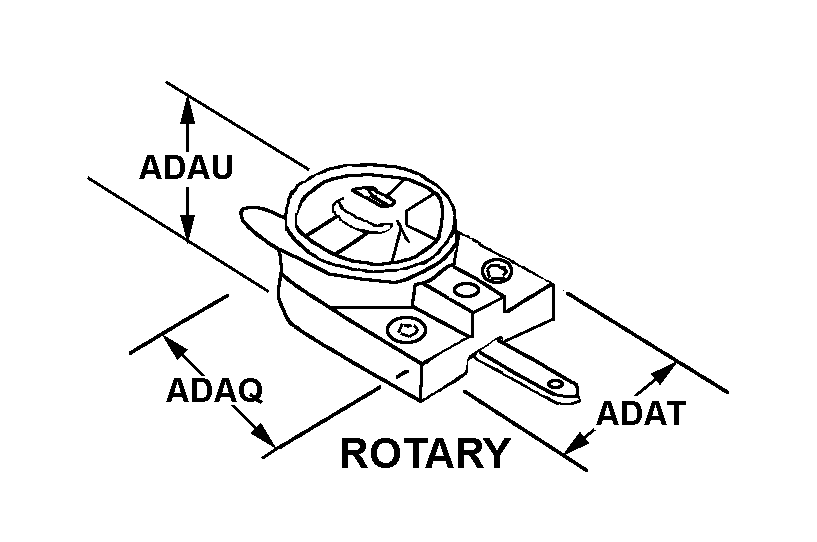

Drawings & Photos | NSN 5910-00-187-4419
Cross Reference | NSN 5910-00-187-4419
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0121-0106 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
| 0121-0106 | 28480 | HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP |
| 0503-001C0P037R | 59660 | TUSONIX, INC. |
| 0503-001C0P037R | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 059-20025-013 | 12131 | LH ENTERPRISE |
| 10193242-003 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 320A121 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 320A121 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 44A116 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 503-001A4-5-25 | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 503-001A4.5-25 | 59660 | TUSONIX, INC. |
| 503-001C0P037R | 59660 | TUSONIX, INC. |
| 503-001C0P037R | 72982 | ERIE SPECIALTY PRODUCTS INC |
| 822CN | 71590 | CRL COMPONENTS INC |
| 917-1026-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| CRL 822-AZ | 71590 | CRL COMPONENTS INC |
| TS2A500 | 72982 | ERIE SPECIALTY PRODUCTS INC |
