Product Details | CERAMIC DIELECTRIC VARIABLE CAPACITOR
5910-01-099-8739 A capacitor whose capacitance value is controlled by a mechanical means which effects a continuous variation of its capacitance. It includes items consisting of two or more variable capacitors which are inseparable.
Part Alternates: 28037, 9311, 5910-01-099-8739, 01-099-8739, 5910010998739, 010998739
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 AUG 1980 | 01-099-8739 | 00721 ( CAPACITOR, VARIABLE, CERAMIC DIELECTRIC ) |
Drawings & Photos | NSN 5910-01-099-8739
Demand History | NSN 5910-01-099-8739
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 9311 | 2015-08-225 | 1 | Poland |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-01-099-8739
Related Products | NSN 5910-01-099-8739
Technical Data | NSN 5910-01-099-8739
| Characteristic | Specifications |
|---|---|
| CAPACITANCE RANGE IN PICOFARADS | 5.0 TO 50.0 SINGLE SECTION |
| NONDERATED VOLTAGE RATING AND TYPE | 250.0 DC CONTINUOUS SINGLE SECTION |
| NONDERATED OPERATING TEMP | -20.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| TEMP COEFFICIENT OF CAPACITANCE IN PPM PER DEG CELSIUS | -1400.0 SINGLE SECTION |
| TOLERANCE OF TEMP COEFFICIENT IN PPM PER DEG CELSIUS | -800.0 TO 800.0 SINGLE SECTION |

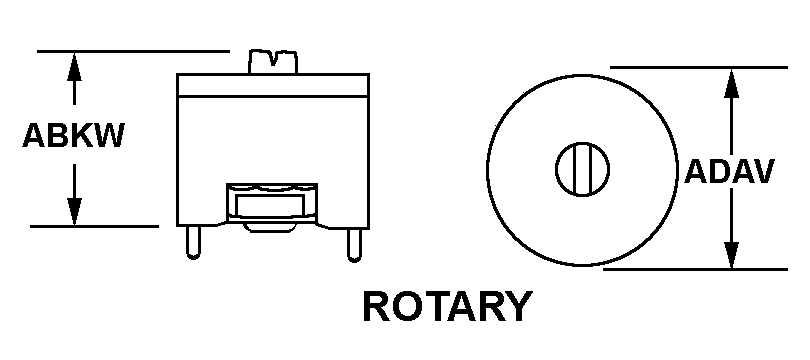

| BODY STYLE | 52 ROTARY |
| OVERALL HEIGHT | 0.315 INCHES NOMINAL |
| OVERALL DIAMETER | 0.335 INCHES NOMINAL |
| INCLOSURE TYPE | ENCASED |
| ADJUSTMENT DEVICE DRIVE TYPE AND QUANTITY | 1 SLOTTED SCREW |
| ADJUSTMENT DEVICE TORQUE | 0.300 INCH-OUNCES MINIMUM AND 3.000 INCH-OUNCES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 2 PRINTED CIRCUIT |
| TERMINAL LOCATION | CIRCUMFERENCE 90 DEGREES APART ON END OPPOSITE ADJUSTMENT CONTROL PERPENDICULAR |
| TERMINAL LENGTH | 0.110 INCHES NOMINAL |
| TERMINAL WIDTH | 0.040 INCHES NOMINAL |
| TERMINAL THICKNESS | 0.015 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER | 0.295 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 TAB |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 0.295 INCHES NOMINAL |
| III INSULATION DC RESISTANCE AT 25 DEG CELSIUS | 10000.0 MEGOHMS |
| III QUALITY FACTOR AT 25 DEG CELSIUS | 500.0 |
