NSN 5910-00-128-3054 LE33E400M, 042-000049, 1B99
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-128-3054 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: LE33E400M, 042-000049, 1B99, 42A049, 5910-00-128-3054, 00-128-3054, 5910001283054, 042000049, 001283054
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-128-3054 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-00-128-3054
Demand History | NSN 5910-00-128-3054
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 042-000049 | 2020-08-17 | 1 | DIBBS |
Cross Reference | NSN 5910-00-128-3054
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 042-000049 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 1B99 | 54904 | INDUSTRIAL/MIDWEC CAPACITOR CORP A CHARLES INDUSTRIES CO |
| 1B99 | 74861 | CHARLES INDUSTRIES, LTD. DIV TELECOM/MARINE AND INDUSTRIAL |
| 42A049 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| LE33E400M | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-128-3054
Related Products | NSN 5910-00-128-3054
Technical Data | NSN 5910-00-128-3054
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 4 |
| CAPACITANCE VALUE PER SECTION | 10.000 MICROFARADS 1ST SECTION 10.000 MICROFARADS 2ND SECTION 30.000 MICROFARADS 3RD SECTION 30.000 MICROFARADS 4TH SECTION |
| TOLERANCE RANGE PER SECTION | -10.00 TO 10.00 PERCENT ALL SECTIONS |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 25.0 DC ALL SECTIONS |
| NONDERATED OPERATING TEMP | -40.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |

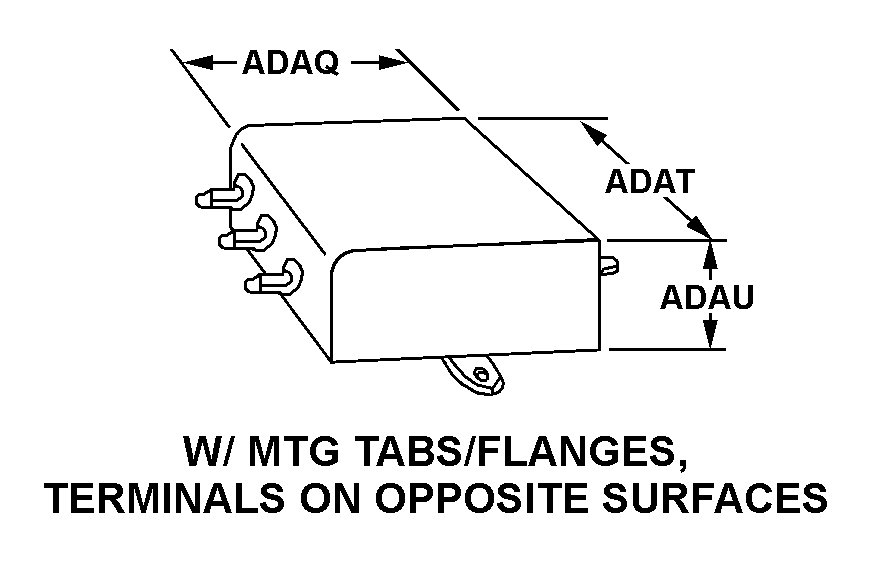

| BODY STYLE | 1A W/MTG TABS/FLANGES, TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 2.002 INCHES NOMINAL |
| BODY WIDTH | 1.997 INCHES NOMINAL |
| BODY HEIGHT | 1.132 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 2C ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 4 TAB, SOLDER LUG |
| TERMINAL LENGTH | 0.337 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED MOUNTING HOLES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.183 INCHES NOMINAL |
| DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY LENGTH | 2.390 INCHES NOMINAL |
| CAPACITIVE ELECTRODE MATERIAL | ALUMINUM |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| III TERMINAL SURFACE TREATMENT | SOLDER |
| III ANODE TYPE | PLAIN FOIL |
| (NON-CORE DATA) OVERALL LENGTH | 2.002 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 1.132 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 1.997 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-128-3054
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-128-3054
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
