NSN 5910-00-128-3060 S4707E, 23A34417, 00-128-3060
Product Details | ELECTROLYTIC FIXED CAPACITOR
5910-00-128-3060 A capacitor, whose capacitance value cannot be adjusted or varied, having a chemically formed film as the dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Part Alternates: S4707E, 23A34417, 5910-00-128-3060, 00-128-3060, 5910001283060, 001283060
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-128-3060 | 00008 ( CAPACITOR, FIXED, ELECTROLYTIC ) |
Drawings & Photos | NSN 5910-00-128-3060
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5910-00-128-3060
Technical Data | NSN 5910-00-128-3060
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 25.000 MICROFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 25.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -20.0 DEG CELSIUS MINIMUM AND 65.0 DEG CELSIUS MAXIMUM |

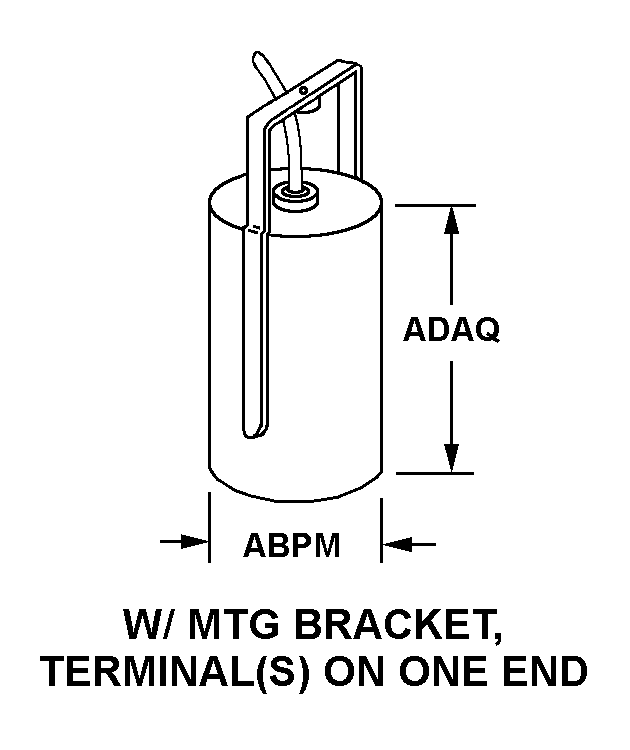

| BODY STYLE | 21B W/MTG BRACKET, TERMINAL(S) ON ONE END |
| BODY DIAMETER | 0.625 INCHES NOMINAL |
| BODY LENGTH | 1.625 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 2C ELECTRODE(S) GROUNDED TO CASE |
| TERMINAL TYPE AND QUANTITY | 1 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 0.438 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| ELECTRICAL POLARIZATION | POLARIZED |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| FEATURES PROVIDED | MOUNTING HARDWARE |
| III ANODE TYPE | PLAIN FOIL |
| (NON-CORE DATA) OVERALL LENGTH | 2.063 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL HEIGHT | 0.625 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.625 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5910-00-128-3060
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
