NSN 5910-00-003-7735 M18312020114, M18312-02-0114, M18312020413
Product Details | PAPER-PLASTIC DIELECTRI METALLIZED FIXED CAPACITOR
5910-00-003-7735 A capacitor whose capacitance value cannot be adjusted or varied having paper, plastic, or any combination of paper and plastic as the dielectric material with a metallic film deposited thereon. It may be a single unit or consist of two or more units which cannot be separated.
Part Alternates: M18312020114, M18312-02-0114, M18312020413, M18312-02-0413, M39022/01-1133, M39022/01-1393, M39022/01-1394, M39022/01-1653, M39022011133, M39022011393, M39022011394, M39022011653, CH09A1RA106J, CH09A1RA106M, CH09ARA106J, CHR09A1RA106JL, MIL-C-39022/1, MILC390221, 5910-00-003-7735, 00-003-7735, 5910000037735, 000037735
Electrical and Electronic Equipment Components | Capacitors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAY 1972 | 00-003-7735 | 31959 ( CAPACITOR, FIXED, METALLIZED, PAPER-PLASTIC DIELECTRIC ) |

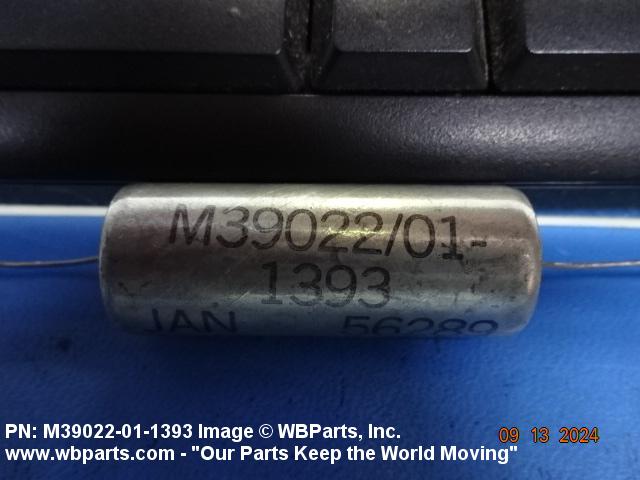

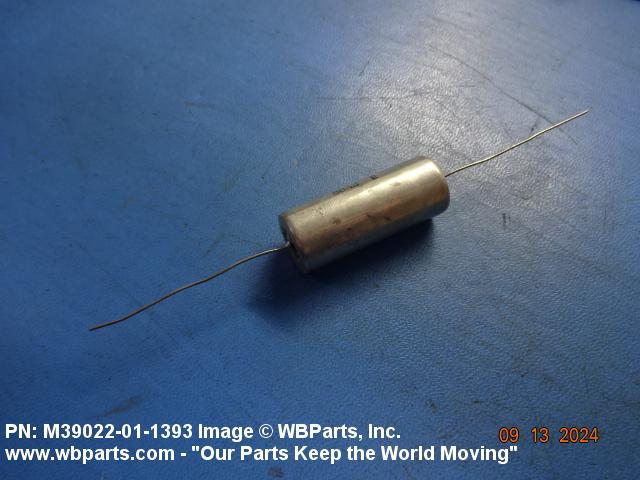

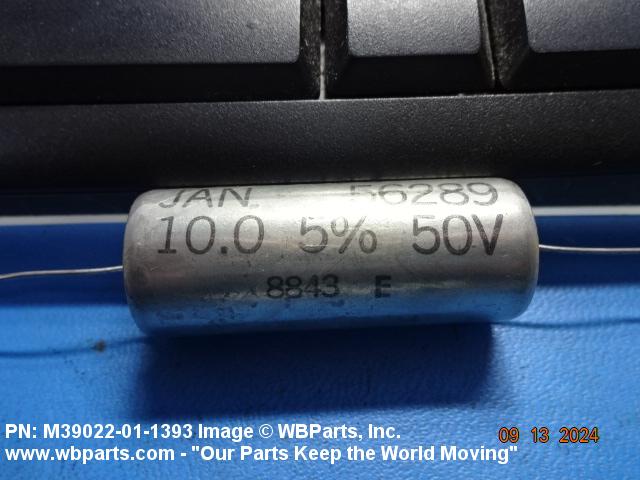

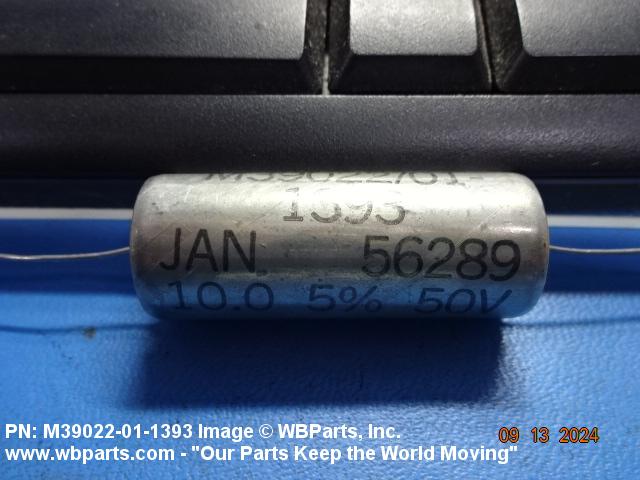

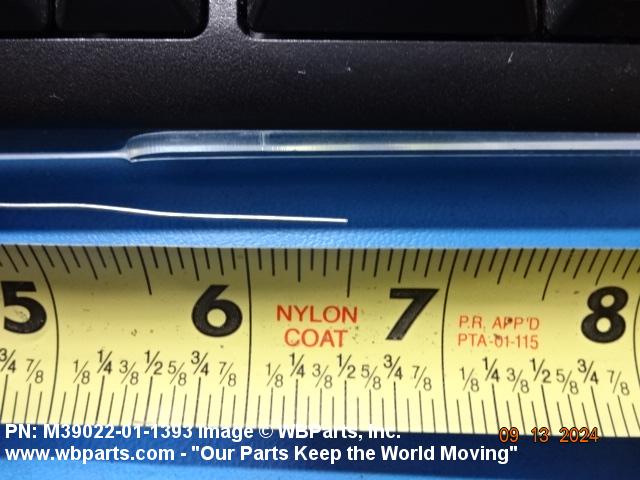

Drawings & Photos | NSN 5910-00-003-7735
Demand History | NSN 5910-00-003-7735
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M39022011393 | 2024-08-240 | 1 | us |
Cross Reference | NSN 5910-00-003-7735
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CH09A1RA106J | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CH09A1RA106M | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CH09ARA106J | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| CHR09A1RA106JL | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M18312-02-0114 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M18312-02-0413 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39022/01-1133 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39022/01-1393 | 0TCV9 | ARIZONA CAPACITORS, INC. |
| M39022/01-1394 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M39022/01-1653 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-39022/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5910-00-003-7735
Related Products | NSN 5910-00-003-7735
Technical Data | NSN 5910-00-003-7735
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 10.000 MICROFARADS SINGLE SECTION |
| TOLERANCE RANGE PER SECTION | -5.00 TO 5.00 PERCENT SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 50.0 DC SINGLE SECTION |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | 26B W/O MTG FACILITIES, AXIAL TERMINALS |

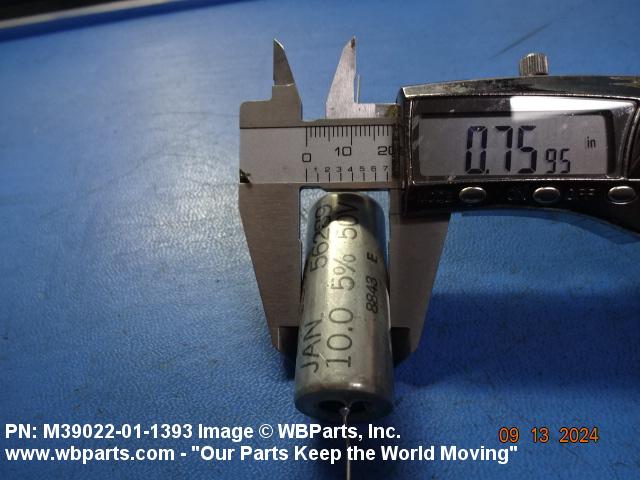

| BODY DIAMETER | 0.782 INCHES NOMINAL |

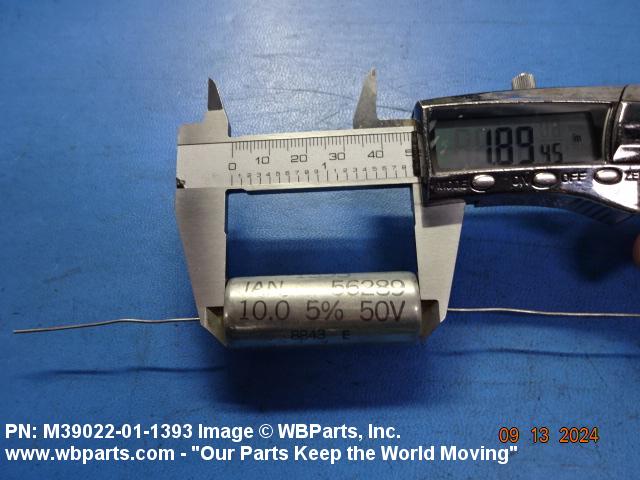

| BODY LENGTH | 1.937 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | 1C NO COMMON OR GROUNDED ELECTRODE(S) |
| TERMINAL TYPE AND QUANTITY | 2 UNINSULATED WIRE LEAD |
| TERMINAL LENGTH | 1.625 INCHES MINIMUM |

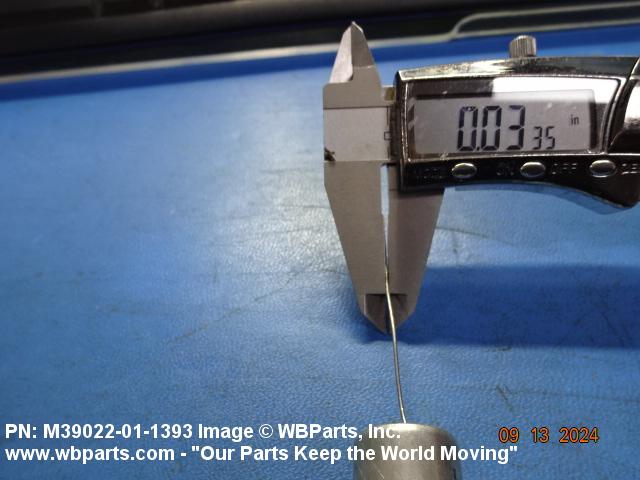

| TERMINAL DIAMETER | 0.032 INCHES NOMINAL |
| CASE MATERIAL | METAL |
| CASE INSULATION MATERIAL | PLASTIC |
| INSULATION RESISTANCE AT REFERENCE TEMP | 2500.0 MEGOHM-MICROFARADS |
| DISSIPATION FACTOR AT REFERENCE TEMP IN PERCENT | 1.0000 |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.1000 |
| FEATURES PROVIDED | HERMETICALLY SEALED CASE |
| TEST DATA DOCUMENT | 81349-MIL-C-39022 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-39022/1 GOVERNMENT SPECIFICATION |
| III MIL-STD-1276 WIRE LEAD TYPE DESIGNATOR | N-2 |
| III TERMINAL SURFACE TREATMENT | GOLD |

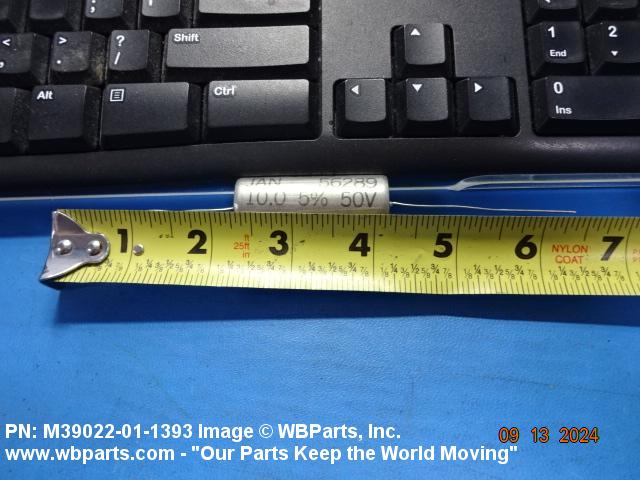

| (NON-CORE DATA) OVERALL LENGTH | 2.281 INCHES MAXIMUM |
| III INSULATION RESISTANCE AT MAXIMUM OPERATING TEMP | 300.0 MEGOHM-MICROFARADS |
| (NON-CORE DATA) PRECIOUS MATERIAL | GOLD |
| III PRECIOUS MATERIAL AND LOCATION | TERMINAL SURFACES GOLD |
| (NON-CORE DATA) OVERALL HEIGHT | 0.782 INCHES NOMINAL |
| (NON-CORE DATA) OVERALL WIDTH | 0.782 INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-39022/1 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M39022/01-1653 |
Restrictions/Controls & Freight Information | NSN 5910-00-003-7735
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | G | Item contains gold |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061400 | CONDENSERS/PARTS NOI/CAPACITORS |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5910-00-003-7735
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | A | Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
