NSN 5905-01-185-9691 MIL-R-39035/5, MILR390355, MIL-R-94/5
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-185-9691 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: MIL-R-39035/5, MILR390355, MIL-R-94/5, MILR945, RJR28FP101P, RV4SAYSN101A, 31782871, 3178287-1, 8171000HMSP0RM10PCT, 817-1000HMSP0RM10PCT, 5905-01-185-9691, 01-185-9691, 5905011859691, 011859691
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 06 AUG 1984 | 01-185-9691 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-01-185-9691
Demand History | NSN 5905-01-185-9691
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILR945 | 2012-04-114 | 1 | US |
Cross Reference | NSN 5905-01-185-9691
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3178287-1 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 817-1000HMSP0RM10PCT | 91637 | VISHAY DALE ELECTRONICS, INC. DIV VISHAY ANGSTROHM & DALE |
| MIL-R-39035/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-94/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RJR28FP101P | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| RV4SAYSN101A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-01-185-9691
Related Products | NSN 5905-01-185-9691
Technical Data | NSN 5905-01-185-9691
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 100.000 OHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 2.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 2.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -100.0 TO 100.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.3 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 85.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 150.0 SINGLE SECTION |

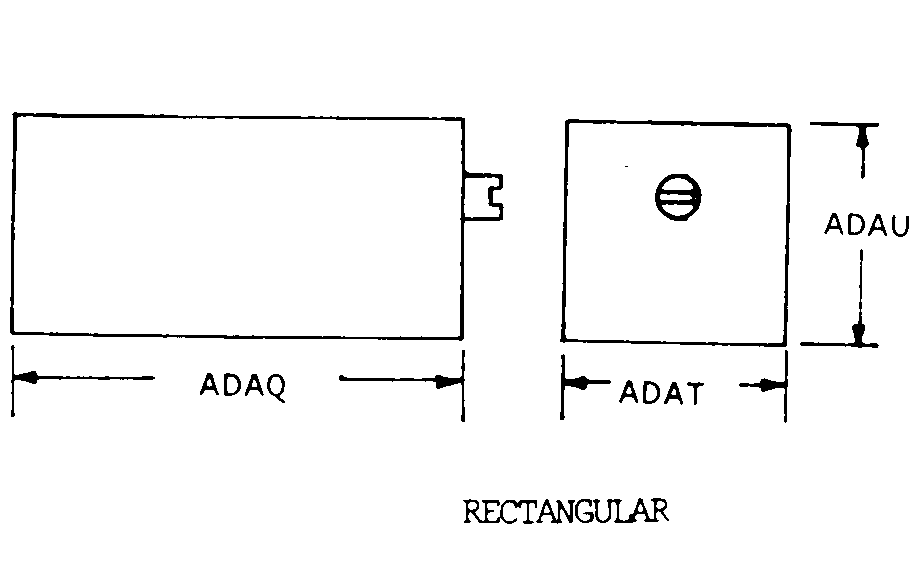

| BODY STYLE | 34B RECTANGULAR |
| BODY LENGTH | 0.500 INCHES NOMINAL |
| BODY WIDTH | 0.100 INCHES NOMINAL |
| BODY HEIGHT | 0.170 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |

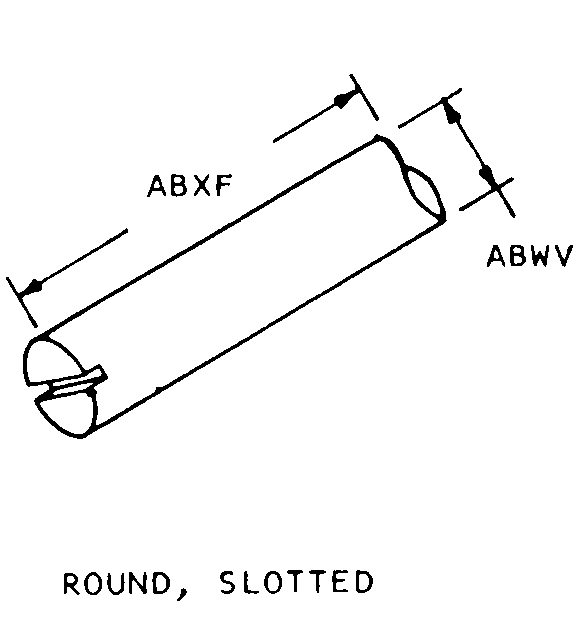

| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.080 INCHES NOMINAL |
| SHAFT LENGTH | 0.090 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 1800.0 MINIMUM AND 5400.0 MAXIMUM |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 1800.0 MINIMUM AND 5400.0 MAXIMUM |
| MOUNTING METHOD | TERMINAL |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.400 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL | 0.100 INCHES NOMINAL |
| TERMINAL LENGTH | 0.200 INCHES NOMINAL |
| TERMINAL LOCATION | LOWER ADJACENT SIDE SINGLE ROW |
| RELIABILITY INDICATOR | ESTABLISHED |
| RELIABILITY FAILURE RATE LEVEL IN PERCENT | 0.100 |
| TEST DATA DOCUMENT | 81349-MIL-R-39035 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-R-39035/5 GOVERNMENT SPECIFICATION |
| III UNPACKAGED UNIT WEIGHT | 0.43 GRAMS |
| III CUBIC MEASURE | 0.009 CUBIC INCHES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-39035/5 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | RJR28FP101P |
