NSN 5905-01-134-7695 311-1572-00, 375S102B, 375X102E
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-134-7695 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 311-1572-00, 375S102B, 375X102E, 91920, 91-92-0, 91W00M, 92WR1K92A, 92WR1K-92A, 5905-01-134-7695, 01-134-7695, 5905011347695, 311157200, 011347695
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 09 JUL 1982 | 01-134-7695 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-01-134-7695
Cross Reference | NSN 5905-01-134-7695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 311-1572-00 | 80009 | TEKTRONIX, INC. DBA TEKTRONIX |
| 375S102B | 11236 | CTS CORP BERNE DIV THICK FILM PRODUCTS GROUP |
| 375X102E | 55578 | CTS OF WEST LIBERTY INC |
| 91-92-0 | 73138 | BI TECHNOLOGIES CORPORATION |
| 91W00M | 73138 | BI TECHNOLOGIES CORPORATION |
| 92WR1K-92A | 73138 | BI TECHNOLOGIES CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-134-7695
Technical Data | NSN 5905-01-134-7695
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 1.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO 20.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 40.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 125.0 SINGLE SECTION |

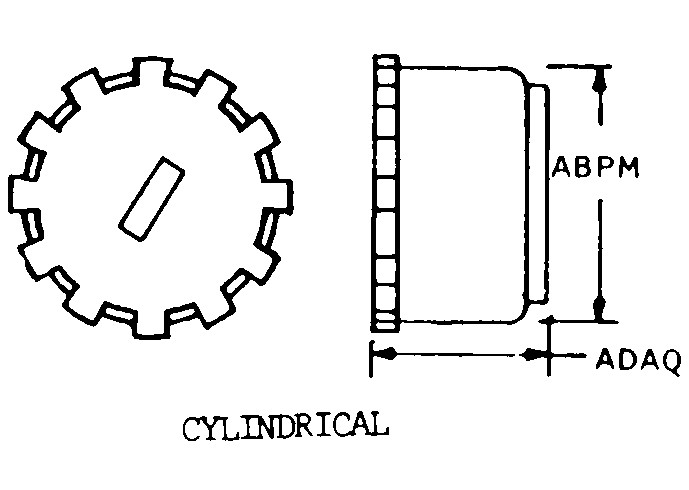

| BODY STYLE | 44B CYLINDRICAL |
| BODY DIAMETER | 0.385 INCHES MAXIMUM |
| BODY LENGTH | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| ACTUATOR TYPE | FLUSH DRIVE WITH SLOT-HOLE |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 190.0 NOMINAL |
| MOUNTING METHOD | TERMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
