NSN 5905-01-133-3428 WA2N048F103, WA2N048F103ME, 6160303
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-01-133-3428 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: WA2N048F103, WA2N048F103ME, 6160303, 61610303, 5905-01-133-3428, 01-133-3428, 5905011333428, 011333428
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 12 JUN 1982 | 01-133-3428 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-01-133-3428
Cross Reference | NSN 5905-01-133-3428
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-133-3428
Technical Data | NSN 5905-01-133-3428
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 10.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO 20.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| SHAFT BEARING TYPE | SLEEVE |
| MAXIMUM STOP TORQUE | 64.00 INCH-OUNCES |
| MAXIMUM STARTING TORQUE | 3.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 3.00 INCH-OUNCES |
| RESISTANCE TEMP CHARACTERISTIC RANGE PER SECTION IN PERCENT | 0.0 TO 7.0 -55 DEG CELSIUS SINGLE SECTION AND 0.0 TO 5.5 120 DEG CELSIUS SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.5 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 120.0 SINGLE SECTION |
| BODY STYLE | 1B CYLINDRICAL BUSHING MOUNTED |
| BODY DIAMETER | 0.500 INCHES NOMINAL |
| BODY LENGTH | 0.469 INCHES MAXIMUM |
| MOUNTING BUSHING LENGTH | 0.375 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |

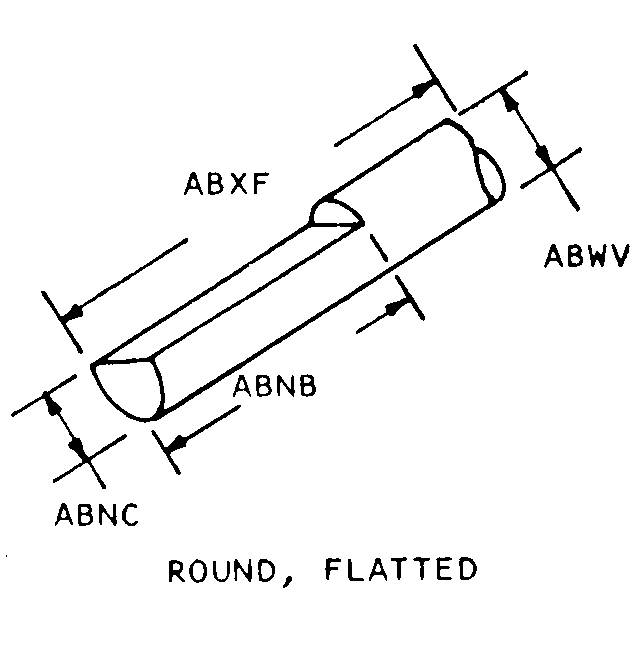

| SHAFT STYLE | 2C ROUND, FLATTED |
| FIRST FLAT LENGTH | 0.250 INCHES NOMINAL |
| FLAT HEIGHT | 0.094 INCHES NOMINAL |
| SHAFT DIAMETER | 0.125 INCHES NOMINAL |
| SHAFT LENGTH | 0.750 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 295.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 295.0 NOMINAL |
| NONTURN DEVICE LOCATION | AT 4'30 OCLOCK AND AT 10'30 OCLOCK |
| NONTURN DEVICE RADIUS | 0.245 INCHES NOMINAL |
| MOUNTING METHOD | STANDARD BUSHING |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| SCREW THREAD DIAMETER | 0.250 INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH | 32.0 |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III OVERALL LENGTH | 1.453 INCHES MAXIMUM |
| III OVERALL DIAMETER | 0.500 INCHES NOMINAL |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5905-01-133-3428
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-01-133-3428
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
