NSN 5905-00-943-8287 KC20-01/8025, KC20018025, 112755
Product Details | PRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-943-8287 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The finctional tolerance (linearity) of the output is equal to or less than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually postioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see REHOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE NONWIRE WOUND, NONPRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: KC20-01/8025, KC20018025, 112755, 46335B, 510B10 , 5312F4B, 5905-00-943-8287, 00-943-8287, 5905009438287, 009438287
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 1966 | 00-943-8287 | 37407 ( RESISTOR, VARIABLE, NONWIRE WOUND, PRECISION ) |

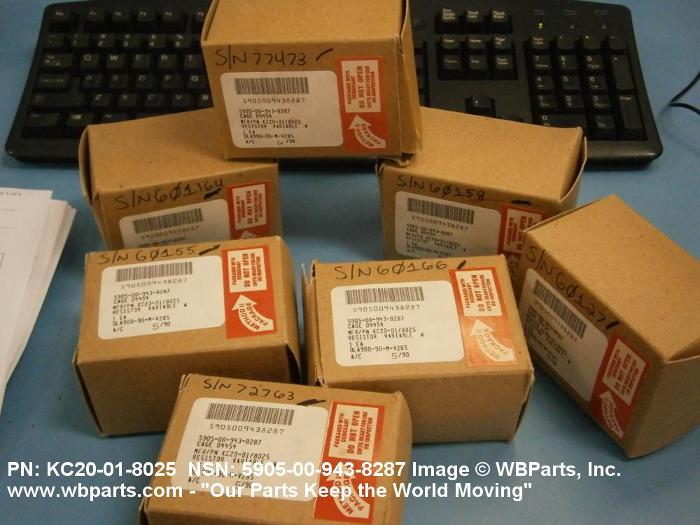

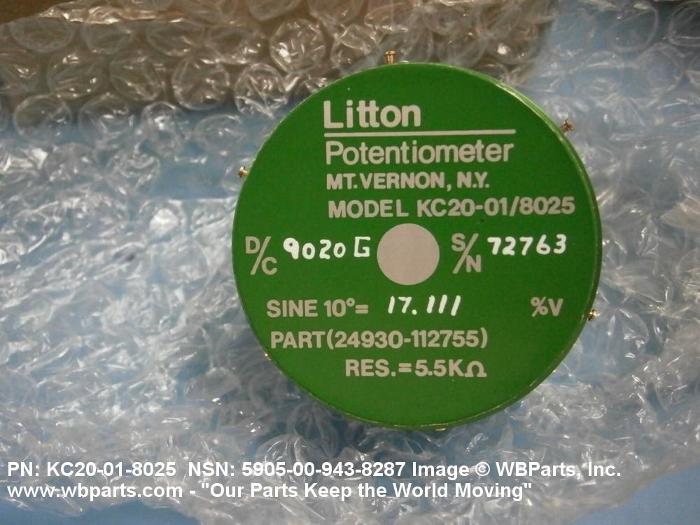

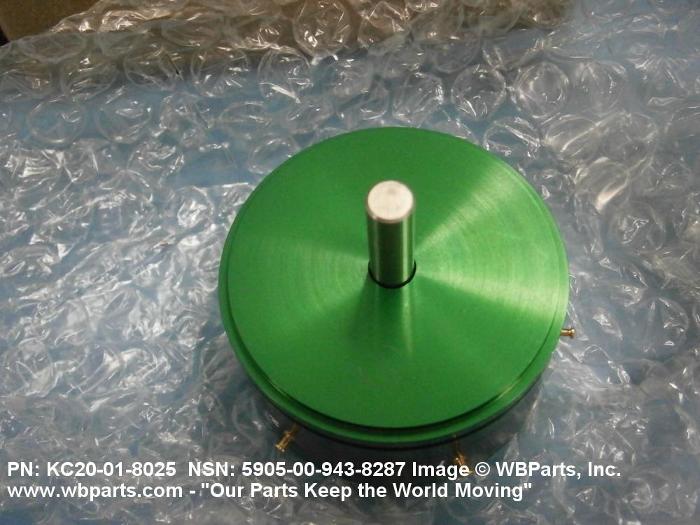

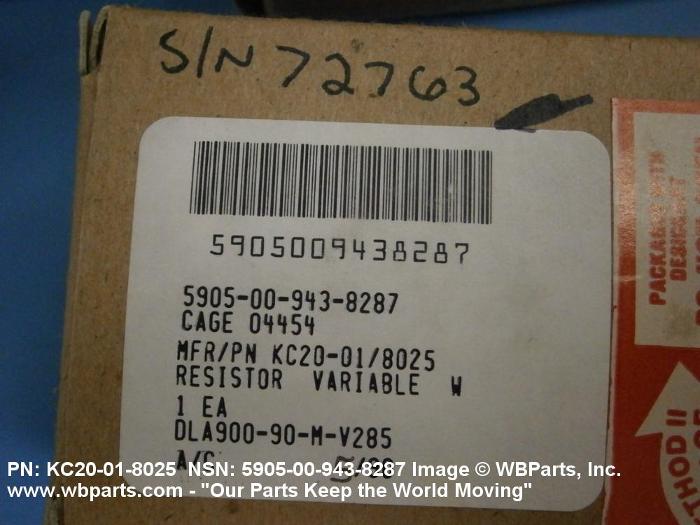

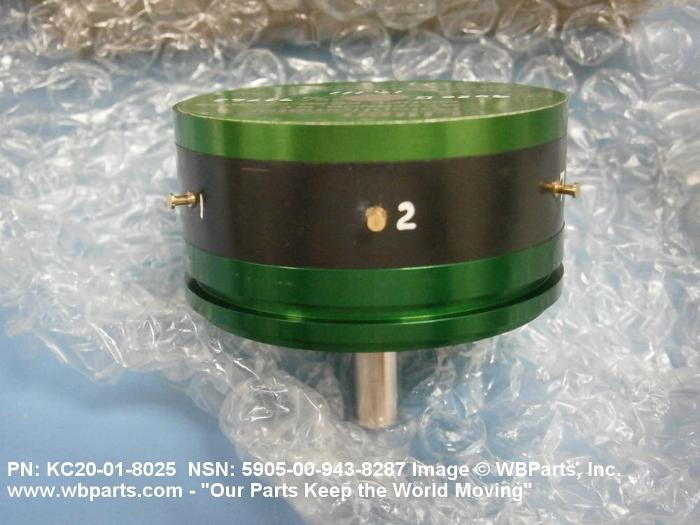

Drawings & Photos | NSN 5905-00-943-8287
Demand History | NSN 5905-00-943-8287
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-00-943-8287 | 2014-12-353 | 5 | DIBBS |
| 5905-00-943-8287 | 2014-12-342 | 5 | DIBBS |
| 112755 | 2011-08-221 | 10 | Finland |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare

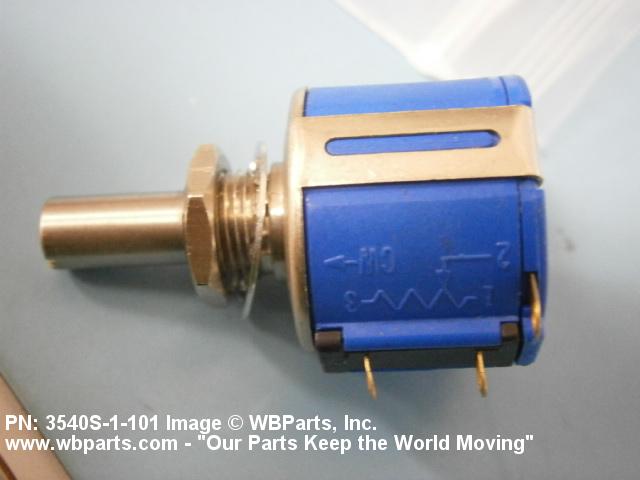

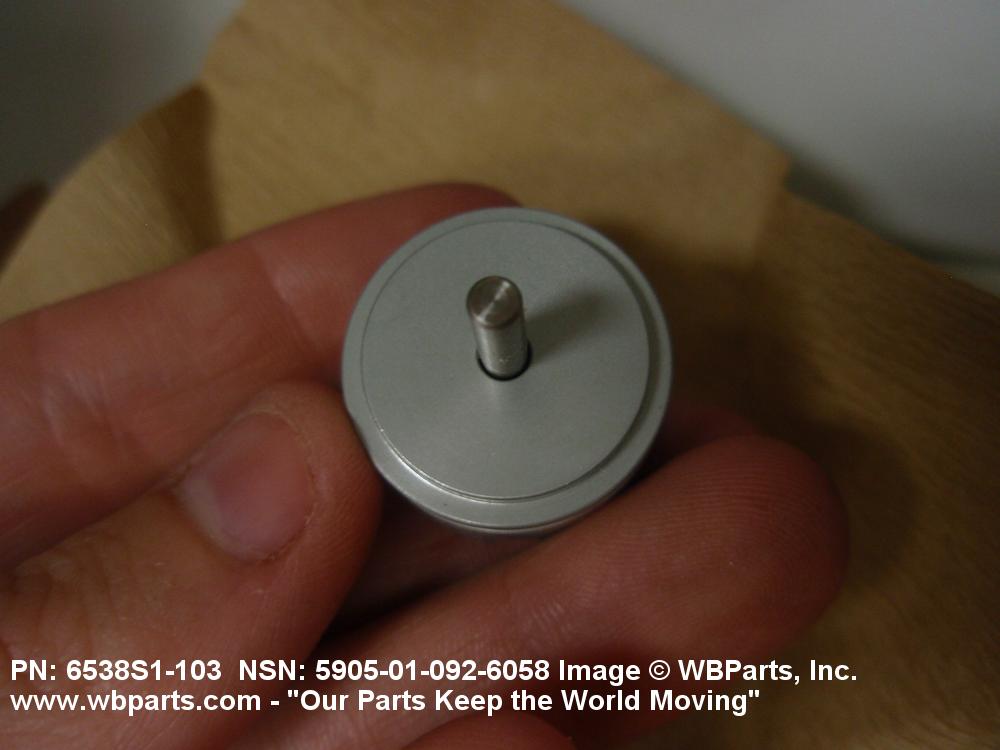

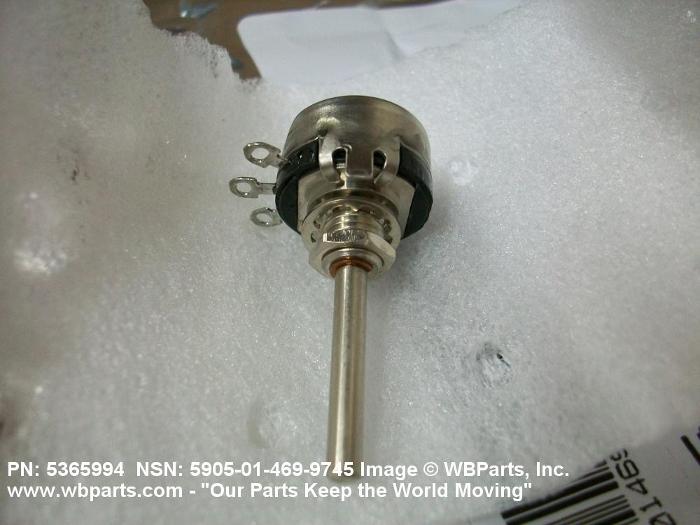

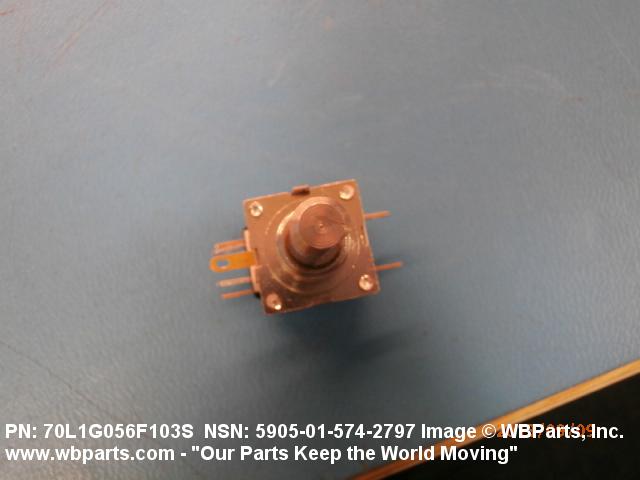

Related Products | NSN 5905-00-943-8287
Technical Data | NSN 5905-00-943-8287
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 22.0 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| FUNCTION CONFORMITY PER SECTION | SINGLE SECTION ABSOLUTE CONFORMITY |
| FUNCTION CHARACTERISTIC PER SECTION | SINGLE SECTION 360 DEG SINE-COSINE |
| FUNCTION CONFORMITY TOLERANCE PER SECTION | -1.00 TO 1.00 SINGLE SECTION |
| SHAFT RADIAL PLAY | 0.003 INCHES |
| SHAFT BEARING TYPE | BEARING |
| MAXIMUM STARTING TORQUE | 2.00 INCH-OUNCES |
| MAXIMUM RUNNING TORQUE | 2.00 INCH-OUNCES |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 85.0 SINGLE SECTION |
| FIXED TAP QUANTITY PER SECTION | 1 SINGLE SECTION |
| TAP LOCATION FROM CCW TERMINAL PER SECTION IN DEG OF EFFECTIVE ELECTRICAL ROTATION | 30.0 SINGLE SECTION |
| TAP LOCATION TOLERANCE PER SECTION | -1.0 TO 1.0 DEG ANGULAR ROTATION SINGLE SECTION |

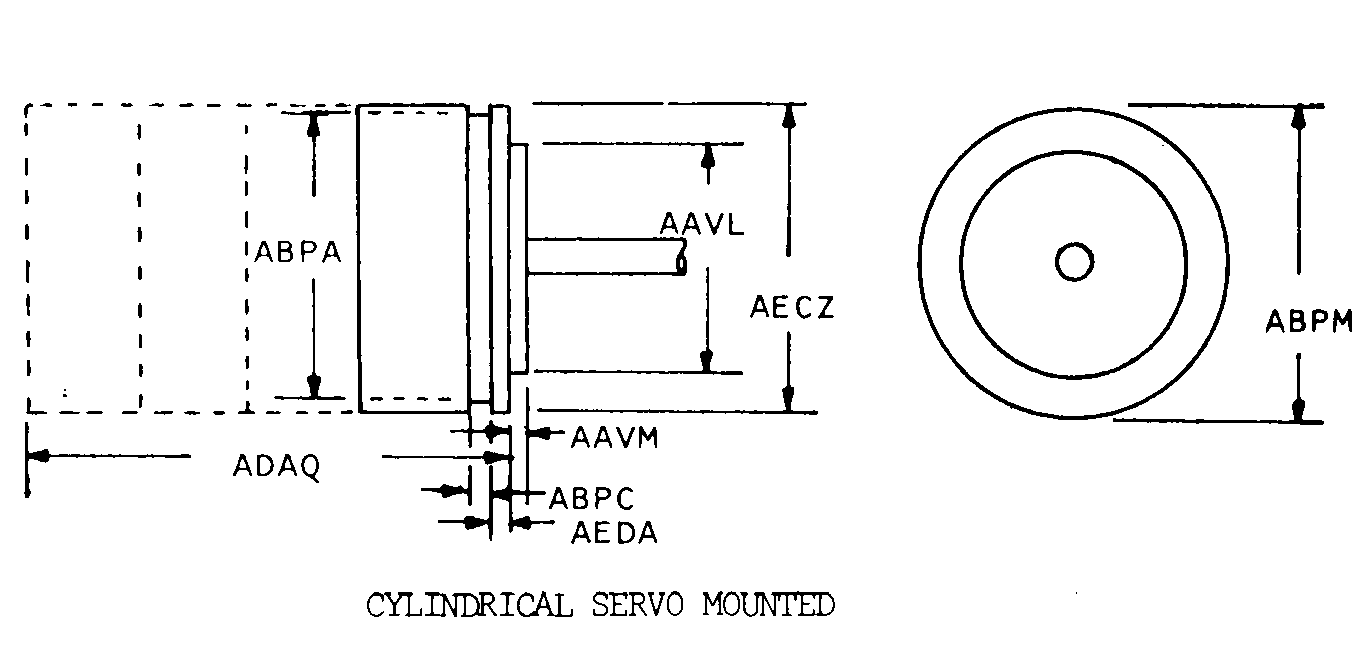

| BODY STYLE | 5B CYLINDRICAL SERVO MOUNTED |
| PILOT DIAMETER | 1.8750 INCHES NOMINAL |
| PILOT LENGTH | 0.0300 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 1.875 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0600 INCHES MINIMUM |
| BODY DIAMETER | 2.000 INCHES NOMINAL |
| BODY LENGTH | 0.865 INCHES MAXIMUM |
| MOUNTING LIP DIAMETER | 2.0000 INCHES NOMINAL |
| MOUNTING LIP DEPTH | 0.0500 INCHES MINIMUM AND 0.1000 INCHES MAXIMUM |
| ACTUATOR TYPE | SINGLE SHAFT |

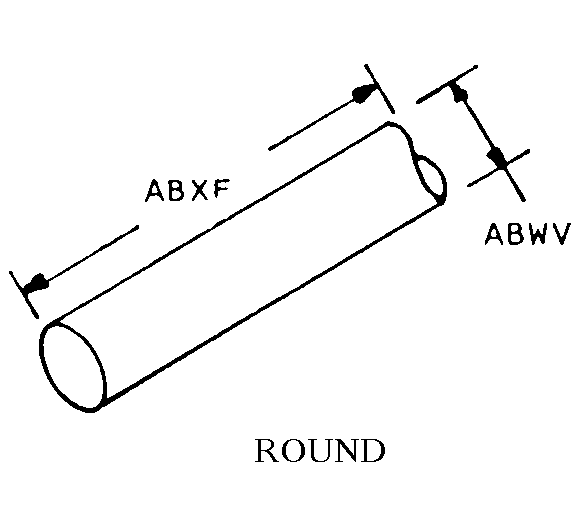

| SHAFT STYLE | 1C ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.750 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 360.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 360.0 NOMINAL |
| MOUNTING METHOD | CLAMP RING |
| FEATURES PROVIDED | HUMIDITY PROOF |
| TERMINAL TYPE AND QUANTITY | 6 TURRET |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER MORE THAN HALF THE CIRCUMFERENCE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| TEST DATA DOCUMENT | 24930-112755 DRAWING |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5905-00-943-8287
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | PA | Marine Corps Logistics Base Albany, GA 31704-1128 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5905-00-943-8287
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
