NSN 5905-01-574-2797 70L1G056F103S, 01-574-2797, 015742797
Product Details | NONWIRE WOUND VARIABLE RESISTOR
5905-01-574-2797 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The finctional tolerance (linearity) of the output is equal to or less than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually postioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see REHOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE NONWIRE WOUND, NONPRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 70L1G056F103S, 5905-01-574-2797, 01-574-2797, 5905015742797, 015742797
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 MAY 2009 | 01-574-2797 | 37407 ( RESISTOR, VARIABLE, NONWIRE WOUND, PRECISION ) |

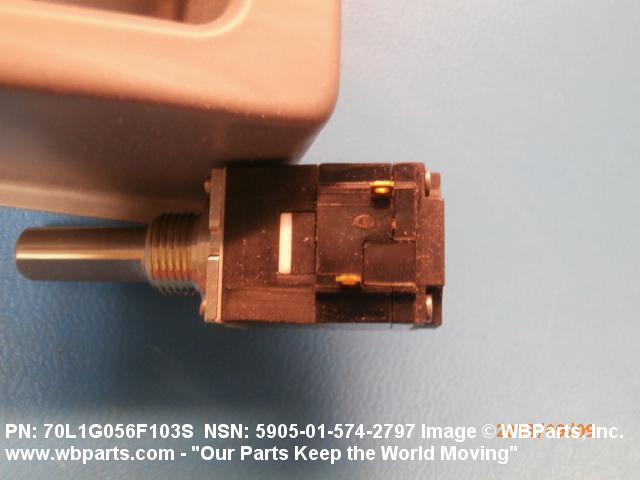

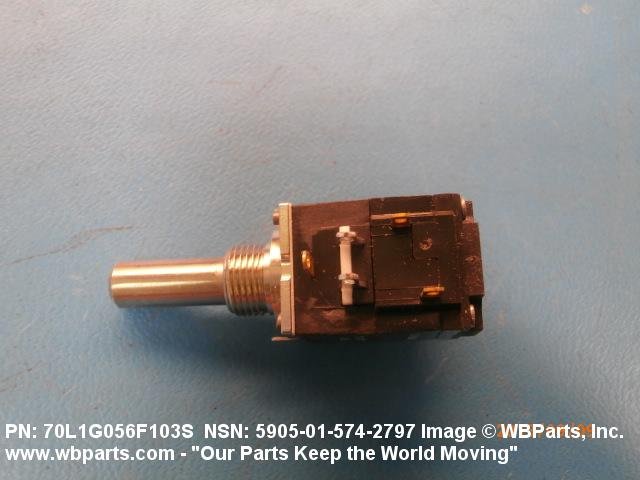

Drawings & Photos | NSN 5905-01-574-2797
Demand History | NSN 5905-01-574-2797
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5905-01-574-2797 | 2013-04-100 | 6 | Spain |
| 5905-01-574-2797 | 2013-04-100 | 6 | Spain |
Cross Reference | NSN 5905-01-574-2797
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 70L1G056F103S | 3EE21 | GIZA TECHNOLOGIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-01-574-2797
Technical Data | NSN 5905-01-574-2797
| Characteristic | Specifications |
|---|---|
| BODY STYLE | CYLINDRICAL BUSHING MOUNTED |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | ROUND |
| SECTION QUANTITY | 1 |
Restrictions/Controls & Freight Information | NSN 5905-01-574-2797
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
