NSN 5905-00-672-2761 RS253M, 15059318REVB, 1505931-8REVB
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-672-2761 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: RS253M, 15059318REVB, 1505931-8REVB, 5905-00-672-2761, 00-672-2761, 5905006722761, 006722761
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-672-2761 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-672-2761
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5905-00-672-2761
Technical Data | NSN 5905-00-672-2761
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 25.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -20.0 TO 20.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 0.25 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 125.0 SINGLE SECTION |
| BODY STYLE | 26B RECTANGULAR W/MOUNTING HOLES/SLOTS |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| BODY WIDTH | 0.250 INCHES NOMINAL |
| BODY HEIGHT | 0.328 INCHES NOMINAL |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.000 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |

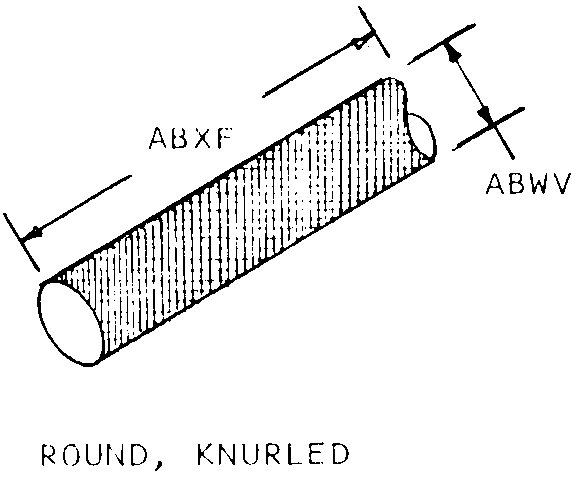

| SHAFT STYLE | 13C ROUND, KNURLED |
| SHAFT DIAMETER | 0.062 INCHES NOMINAL |
| SHAFT LENGTH | 0.125 INCHES NOMINAL |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 350.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | STOPS |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 350.0 NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 2 |
| MOUNTING HOLE DIAMETER | 0.093 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| TERMINAL LOCATION | RADIALLY POSITIONED OVER LESS THAN HALF THE CIRCUMFERENCE |
| III SUPPLEMENTARY FEATURES | 5 OCT. 00 ITEM REVIEWED UNDER GIRDER PROJECT; COUNTRY NON CONCUR CANCELLATION ACTION |
