NSN 5905-00-252-1555 3282W1104, 3282W1-104, 00-252-1555
Product Details | NONPRECISION NONWIRE WOUND VARIABLE RESISTOR
5905-00-252-1555 A resistor in which a sliding or rolling contact moves over an exposed area of the resistive element to change the ohmic value of the output. The functional tolerance (linearity), if given, of the output is greater than plus or minus 1 percent on linear outputs. Specified outputs such as sine, cosine, tangent, etc., shall be considered to be precision. For items having manually positioned taps designed to be set and fixed prior to use, see RESISTOR, ADJUSTABLE. For items with step by step variation, see RHEOSTAT and RESISTOR, STEP BY STEP. For tandem-mounted items designed to function together as an attenuator (and rated accordingly), see ATTENUATOR, VARIABLE. Excludes RESISTOR (1), VARIABLE, WIRE WOUND, NONPRECISION; RESISTOR (1), VARIABLE, NONWIRE WOUND PRECISION; and RESISTOR (1), VARIABLE, WIRE WOUND, PRECISION.
Part Alternates: 3282W1104, 3282W1-104, 5905-00-252-1555, 00-252-1555, 5905002521555, 002521555
Electrical and Electronic Equipment Components | Resistors
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 21 FEB 1969 | 00-252-1555 | 37405 ( RESISTOR, VARIABLE, NONWIRE WOUND, NONPRECISION ) |
Drawings & Photos | NSN 5905-00-252-1555
Cross Reference | NSN 5905-00-252-1555
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3282W1-104 | 80294 | BOURNS INSTRUMENTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5905-00-252-1555
Related Products | NSN 5905-00-252-1555
Technical Data | NSN 5905-00-252-1555
| Characteristic | Specifications |
|---|---|
| SECTION QUANTITY | 1 |
| ELECTRICAL RESISTANCE PER SECTION | 100.000 KILOHMS SINGLE SECTION |
| RESISTANCE TOLERANCE PER SECTION IN PERCENT | -10.0 TO 10.0 SINGLE SECTION |
| STANDARD TAPER CURVE PER SECTION | A SINGLE SECTION |
| MAXIMUM STARTING TORQUE | 5.00 INCH-OUNCES |
| TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS | -100.0 TO 100.0 SINGLE SECTION |
| POWER DISSIPATION RATING PER SECTION IN WATTS | 1.0 FREE AIR SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER | 70.0 SINGLE SECTION |
| AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER | 175.0 SINGLE SECTION |

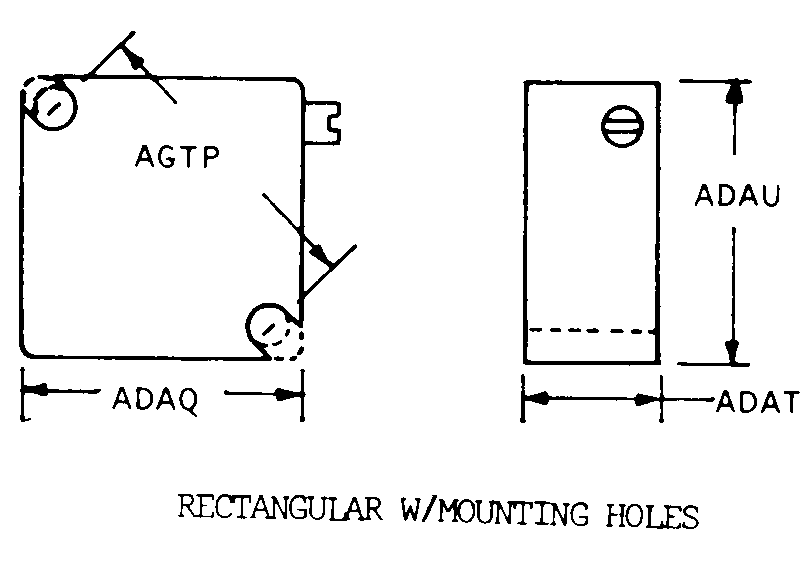

| BODY STYLE | 32B RECTANGULAR W/MOUNTING HOLES |
| BODY LENGTH | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| BODY WIDTH | 0.188 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| BODY HEIGHT | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS | 0.100 INCHES NOMINAL |
| ACTUATOR TYPE | SINGLE SHAFT |
| SHAFT STYLE | 3C ROUND, SLOTTED |
| SHAFT DIAMETER | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| SHAFT LENGTH | 0.030 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| ROTARY ACTUATOR TRAVEL IN ANGULAR DEG | 9000.0 NOMINAL |
| ACTUATOR TRAVEL CONTROL FEATURE | CLUTCH |
| EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION | 9000.0 NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 0.074 INCHES MINIMUM |
| TERMINAL TYPE AND QUANTITY | 3 PIN |
| CENTER TO CENTER DISTANCE BETWEEN TERMINALS | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL | 0.100 INCHES NOMINAL |
| TERMINAL LENGTH | 0.285 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| TERMINAL LOCATION | REAR END |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| III OVERALL LENGTH | 0.675 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| III OVERALL HEIGHT | 0.360 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| III OVERALL WIDTH | 0.188 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
