Product Details | DELAY LINE
5840-00-811-9893 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 008119893
Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-811-9893 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5840-00-811-9893
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5840-00-811-9893
Technical Data | NSN 5840-00-811-9893
| Characteristic | Specifications |
|---|---|
| SIGNAL DELAY METHOD | LUMPED CONSTANT |
| INDIVIDUAL SECTION QUANTITY | 1 |
| SECTION DELAY TIME | 3.333 MILLISECONDS NOMINAL SINGLE SECTION |
| OPERATING TEMP RANGE | 0.0 TO 75.0 DEG CELSIUS |
| DELAY TIME VARIATION PER DEG CELSIUS | NOT RATED |
| INPUT IMPEDANCE RATING | 75.000 OHMS |
| OUTPUT IMPEDANCE RATING | 75.000 OHMS |
| ATTENUATION IN DECIBELS | 70.000 |
| VOLTAGE RATING | NOT RATED |
| PULSE RISE TIME RATING | NOT RATED |
| FREQUENCY RATING | 26500.000 KILOHERTZ NOMINAL |
| FREQUENCY BANDWIDTH | 8000.0 KILOHERTZ NOMINAL |

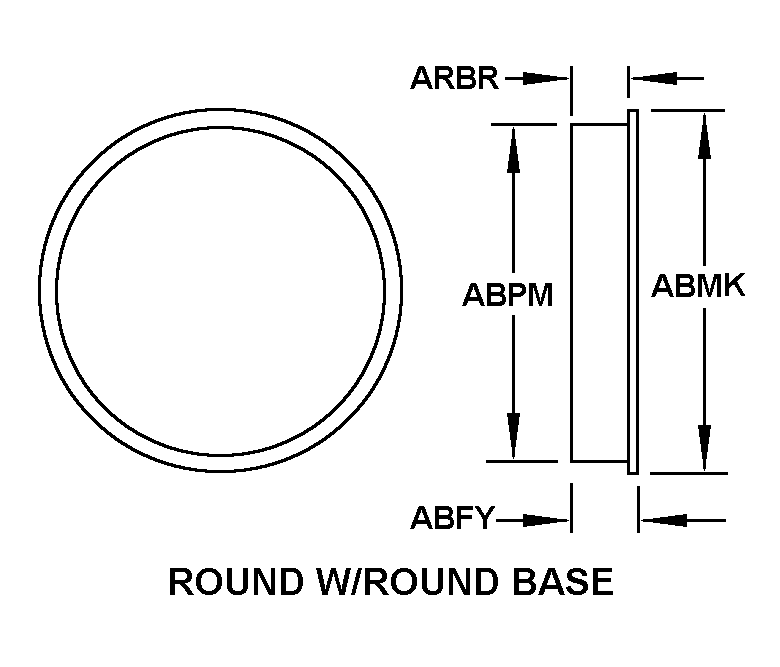

| BODY STYLE | 18 ROUND W/ROUND BASE |
| OVERALL DEPTH | 1.750 INCHES NOMINAL |
| FLANGE DIAMETER | 20.000 INCHES NOMINAL |
| BODY DIAMETER | 19.875 INCHES NOMINAL |
| BODY DEPTH | 1.375 INCHES NOMINAL |
| MATERIAL AND LOCATION | ALUMINUM ALLOY CASE |
| SURFACE TREATMENT AND LOCATION | ENAMEL, DULL GRAY, METALLIC CASE |
| TERMINAL TYPE AND QUANTITY | 4 CONNECTOR, RECEPTACLE |
| MOUNTING FACILITY | UNTHREADED HOLE |
| MOUNTING FACILITY QUANTITY | 6 |
| HOLE DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING PROVISION ARRANGEMENT STYLE | 3 FOUR POSITION CIRCULAR |
| MOUNTING HOLE CIRCLE RADIUS | 18.875 INCHES NOMINAL |
| III FSC APPLICATION DATA | RADAR NONAIRBORNE EXCEPT FIRE CONTROL AND GUIDED MISSILE |
| MANUFACTURERS CODE | 94117 |
| DESIGN CONTROL REFERENCE | 4400B0126 |
