NSN 5840-00-137-1507 001371507
Product Details | DELAY LINE
5840-00-137-1507 An item which provides a predetermined delay to an electrical pulse, while maintaining substantially the same waveform. The delay is obtained by means of a real or artificial transmission line or equivalent device. The equivalent device may be acoustic, distributive, lumped constant, magnetic solid state, or surface acoustical wave type. See also ATTENUATOR, (as modified); TRANSFORMER, (as modified); and OSCILLATOR, PULSE DELAY.
Part Alternates: 001371507
Communication, Detection, and Coherent Radiation Equipment | Radar Equipment, Except Airborne
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 58 | 00-137-1507 | 06373 ( DELAY LINE ) |
Drawings & Photos | NSN 5840-00-137-1507
Demand History | NSN 5840-00-137-1507
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4790 | 2014-03-69 | 4 | TR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5840-00-137-1507
Technical Data | NSN 5840-00-137-1507
| Characteristic | Specifications |
|---|---|
| DELAY TIME VARIATION METHOD | ADJUSTABLE |
| INDIVIDUAL SECTION QUANTITY | 1 |
| ADJUSTMENT DEVICE DRIVE TYPE | SLOTTED SCREW |
| ADJUSTMENT DEVICE QUANTITY | 2 |

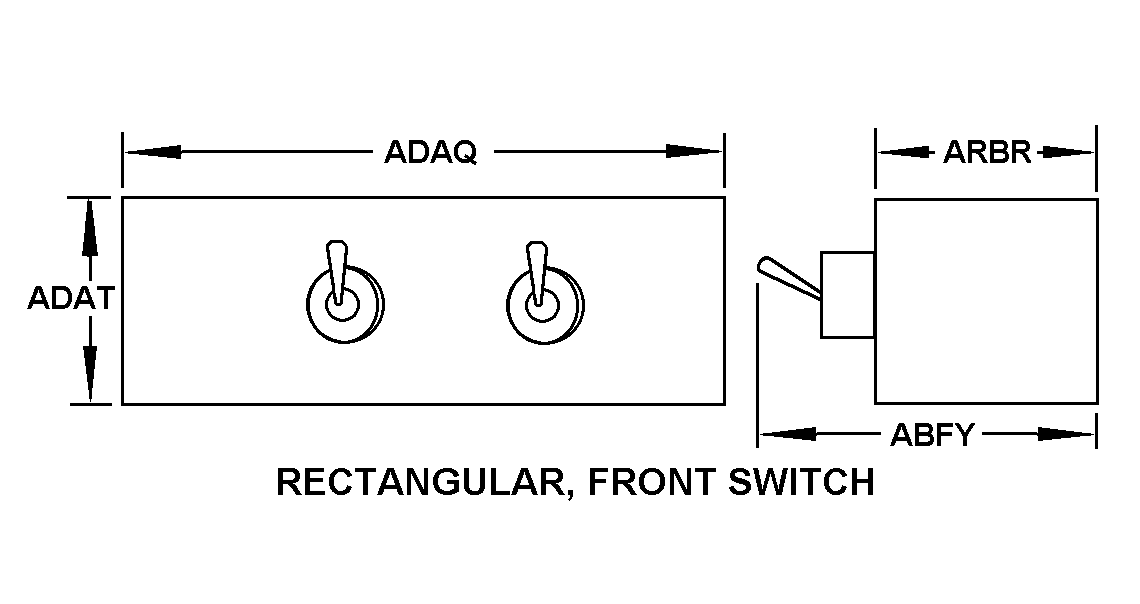

| BODY STYLE | 7 RECTANGULAR, FRONT SWITCH |
| OVERALL DEPTH | 5.380 INCHES MINIMUM AND 5.400 INCHES MAXIMUM |
| BODY LENGTH | 6.000 INCHES NOMINAL |
| BODY WIDTH | 2.500 INCHES NOMINAL |
| BODY DEPTH | 4.500 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 COAXIAL RECEPTACLE |
| MOUNTING FACILITY | THREADED HOLE |
| MOUNTING FACILITY QUANTITY | 4 |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.164-32 UNF |
| MOUNTING PROVISION ARRANGEMENT STYLE | 2 FOUR POSITION RECTANGULAR |
| LONGEST HORIZONTAL DISTANCE BETWEEN MOUNTING CENTERS | 2.100 INCHES NOMINAL |
| LONGEST VERTICAL DISTANCE BETWEEN MOUNTING CENTERS | 5.600 INCHES NOMINAL |
| MANUFACTURERS CODE | 97942 |
| MFR SOURCE CONTROLLING REFERENCE | 338D473G01 |
Restrictions/Controls & Freight Information | NSN 5840-00-137-1507
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
