NSN 5640-01-064-3315 AE10210, AE102-10, AEI10210
Product Details | THERMAL INSULATION SLEEVING
5640-01-064-3315 A rigid or flexible item composed of one or more materials, having uniform inside and outside diameters in the entire length. It may be furnished in segments or split-round or full-round sections, composed of one or more layers. It is specifically designed to cover pipe, tubing, and like surfaces, to restrict the transfer of heat from the high temperature surface to the low temperature surface. It may also include protective coatings, jackets, attaching cement, attaching bands, and/or accessories, (excluding prefabricated components used in aircraft applications). Excludes INSULATION PIPE COVERING, THERMAL, AIRCRAFT.
Part Alternates: AE10210, AE102-10, AEI10210, AEI102-10, AS 1072A-10-SIL-FG, AS1072A10SILFG, AS1072C10SILFG, AS1072C-10SIL-FG, TF107210, TF1072-10, 150161-003, 1FT AEROQUIP AEI02-10, 1FTAEROQUIPAEI0210, 5640-01-064-3315, 01-064-3315, 5640010643315, 150161003, 010643315
Construction and Building Materials | Wallboard, Building Paper, and Thermal Insulation Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 22 AUG 1978 | 01-064-3315 | 13289 ( INSULATION SLEEVING, THERMAL ) |

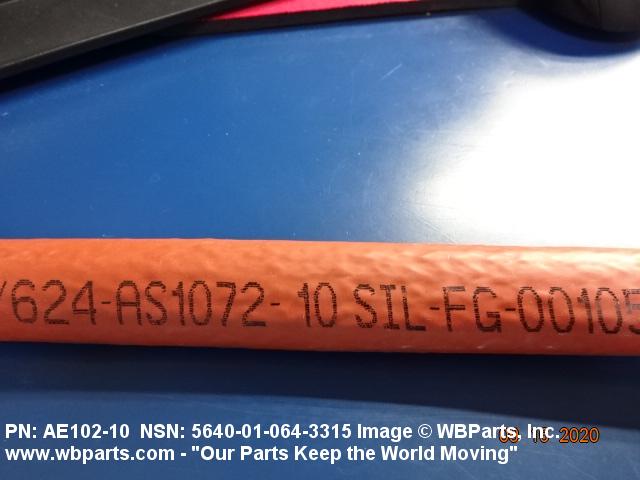

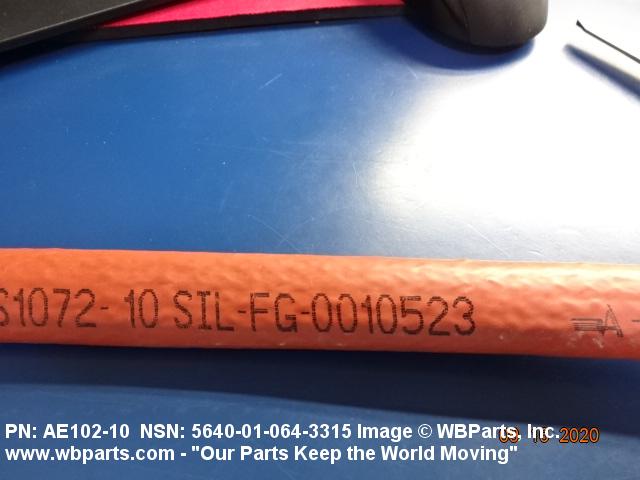

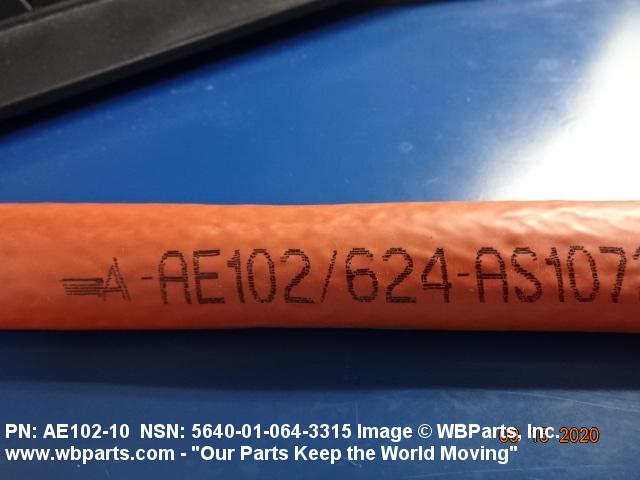

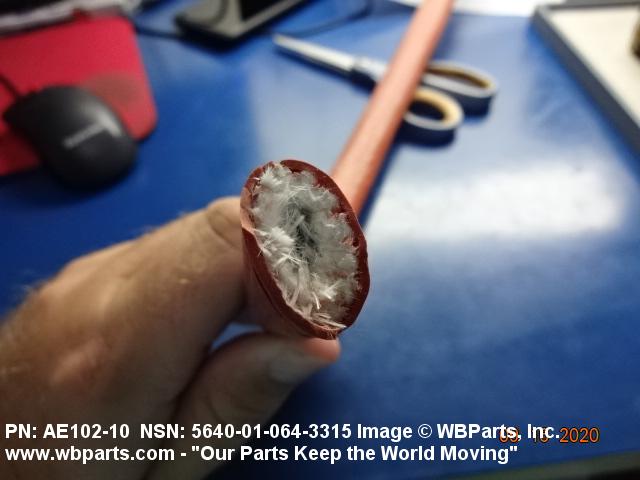

Drawings & Photos | NSN 5640-01-064-3315
Demand History | NSN 5640-01-064-3315
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE102-10 | 2023-11-312 | 4 | DIBBS |
Cross Reference | NSN 5640-01-064-3315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 150161-003 | 54933 | AERO SYSTEMS ENGINEERING, INC. DBA ASE |
| 1FT AEROQUIP AEI02-10 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AE102-10 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AEI102-10 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AS 1072A-10-SIL-FG | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS1072C-10SIL-FG | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| TF1072-10 | 78570 | SMITHS TUBULAR SYSTEMS-LACONIA, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5640-01-064-3315
Technical Data | NSN 5640-01-064-3315
| Characteristic | Specifications |
|---|---|
| FLEXIBILITY | FLEXIBLE |
| LAYER QUANTITY | 1 |
| MATERIAL | GLASS FIBER |
| FABRICATION METHOD | BRAIDED |
| MATERIAL DENSITY | 142.0 POUNDS PER CUBIC FOOT NOMINAL |
| FLAMMABILITY RATING | NOT RATED |
| SURFACE TREATMENT | RUBBER, SYNTHETIC |
| OUTER COVERING ENVIRONMENTAL PROTECTION | OIL RESISTANT |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 500.0 DEG FAHRENHEIT MAXIMUM |
| INSULATION THICKNESS | 0.125 INCHES NOMINAL |
| INSIDE DIAMETER | 0.620 INCHES NOMINAL |
| LENGTH | 12.000 INCHES NOMINAL |
| DESIGN FORM | FULL ROUND |
Restrictions/Controls & Freight Information | NSN 5640-01-064-3315
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5640-01-064-3315
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
