NSN 5640-00-568-4640 AE102/624-16, AE102/624-16-FG, AE10216

Product Details | THERMAL INSULATION SLEEVING

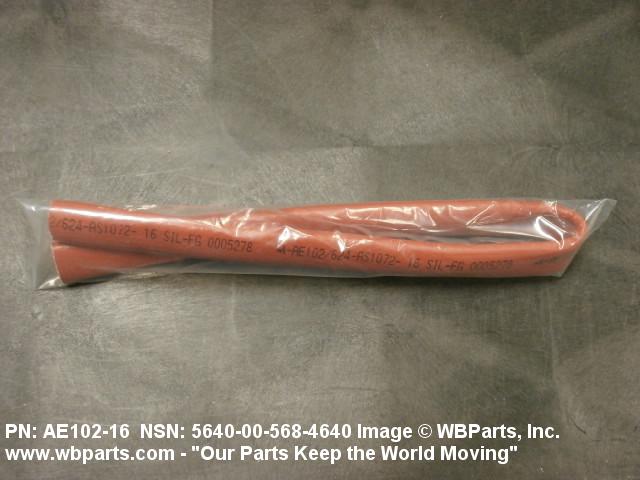

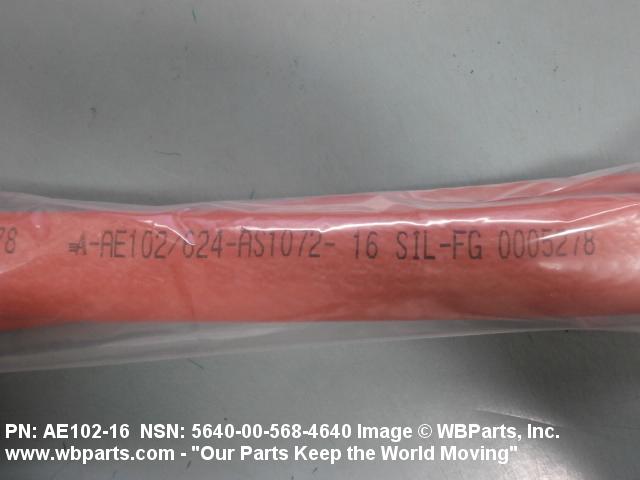

5640-00-568-4640 A rigid or flexible item composed of one or more materials, having uniform inside and outside diameters in the entire length. It may be furnished in segments or split-round or full-round sections, composed of one or more layers. It is specifically designed to cover pipe, tubing, and like surfaces, to restrict the transfer of heat from the high temperature surface to the low temperature surface. It may also include protective coatings, jackets, attaching cement, attaching bands, and/or accessories, (excluding prefabricated components used in aircraft applications). Excludes INSULATION PIPE COVERING, THERMAL, AIRCRAFT.

Part Alternates: AE102/624-16, AE102/624-16-FG, AE10216, AE102-16, AE10262416, AE10262416FG, AE102FG16, AS 1072C-16-SIL-FG, AS1072C16SILFG, ASNA0199024, ASNA0199-024, 640024, 8607021, 8-60-70-21, 5640-00-568-4640, 00-568-4640, 5640005684640, 005684640

Construction and Building Materials | Wallboard, Building Paper, and Thermal Insulation Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
56	28 NOV 1974	00-568-4640	13289 ( INSULATION SLEEVING, THERMAL )

Drawings & Photos | NSN 5640-00-568-4640

Part Number	Request Date	QTY	Origin
5640-00-568-4640	2015-10-294	50	United States
5640-00-568-4640	2015-10-294	50	US
5640005684640	2011-12-343	1	US
AE10216	2011-05-137	3	US
ASNA0199024	2010-02-44	6	US
5640-00-568-4640	2010-01-11	1	Japan
5640-00-568-4640	2009-06-180	1	United States
5640-00-568-4640	2009-06-180	1	United States
ASNA0199024	2009-04-112	2	Malaysia
AE10216	2009-04-100	3	United States
AE10216	2009-03-74	36	US
AE10216	2009-03-72	9	US
5640-00-568-4640	2008-12-343	1	US
5640-00-568-4640	2006-12-354	2	United States

Cross Reference | NSN 5640-00-568-4640

Part Number	Cage Code	Manufacturer
640024	F0215	ESPA
8-60-70-21	F6285	TECALEMIT AEROSPACE
AE102-16	00624	EATON CORPORATION DBA AEROSPACE DIV
AE102/624-16	00624	EATON CORPORATION DBA AEROSPACE DIV
AE102/624-16	K1016	EATON LIMITED
AE102/624-16-FG	00624	EATON CORPORATION DBA AEROSPACE DIV
AE102FG16	00624	EATON CORPORATION DBA AEROSPACE DIV
AS 1072C-16-SIL-FG	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
ASNA0199-024	F0210	AIRBUS HELICOPTERS (ETS DEMARIGNANE)

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5640-00-568-4640

Compare

Related Products | NSN 5640-00-568-4640

5640-00-568-4687, 5640-00-568-7154, 5640-00-571-7885, 5640-00-571-7892, 5640-00-571-8020

Technical Data | NSN 5640-00-568-4640

Characteristic	Specifications
FLEXIBILITY	FLEXIBLE
LAYER QUANTITY	1
MATERIAL	GLASS FIBER
FABRICATION METHOD	BRAIDED
MATERIAL DENSITY	NOT RATED
FLAMMABILITY RATING	INCOMBUSTIBLE
OUTER COVERING ENVIRONMENTAL PROTECTION	FIRE RETARDANT
TEMP RATING	-65.0 DEG FAHRENHEIT MINIMUM AND 500.0 DEG FAHRENHEIT MAXIMUM
INSULATION THICKNESS	0.125 INCHES NOMINAL
INSIDE DIAMETER	1.000 INCHES NOMINAL
DESIGN FORM	FULL ROUND
SPECIAL FEATURES	LENGTH SHALL BE AS SPECIFIED; NORMAL COMMERCIAL MAXIMUM LENGTH PER PIECE 20 FT
