NSN 5640-00-413-3387 GB100B24B36, 36T2640224B36, 36T26402-24B36
Product Details | THERMAL INSULATION SLEEVING
5640-00-413-3387 A rigid or flexible item composed of one or more materials, having uniform inside and outside diameters in the entire length. It may be furnished in segments or split-round or full-round sections, composed of one or more layers. It is specifically designed to cover pipe, tubing, and like surfaces, to restrict the transfer of heat from the high temperature surface to the low temperature surface. It may also include protective coatings, jackets, attaching cement, attaching bands, and/or accessories, (excluding prefabricated components used in aircraft applications). Excludes INSULATION PIPE COVERING, THERMAL, AIRCRAFT.
Part Alternates: GB100B24B36, 36T2640224B36, 36T26402-24B36, 5640-00-413-3387, 00-413-3387, 5640004133387, 004133387
Construction and Building Materials | Wallboard, Building Paper, and Thermal Insulation Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 56 | 01 MAY 1974 | 00-413-3387 | 13289 ( INSULATION SLEEVING, THERMAL ) |

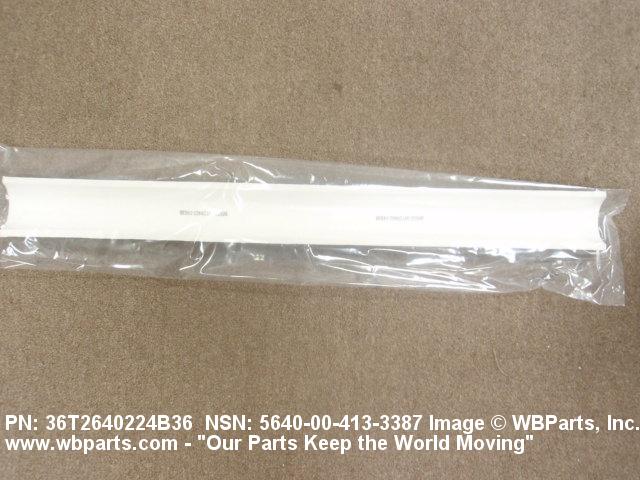

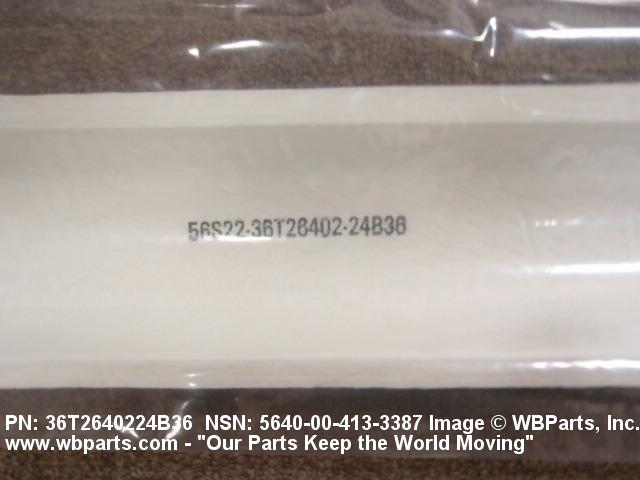

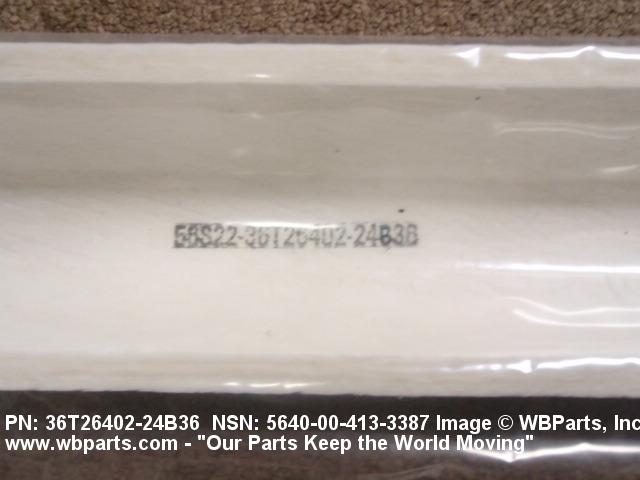

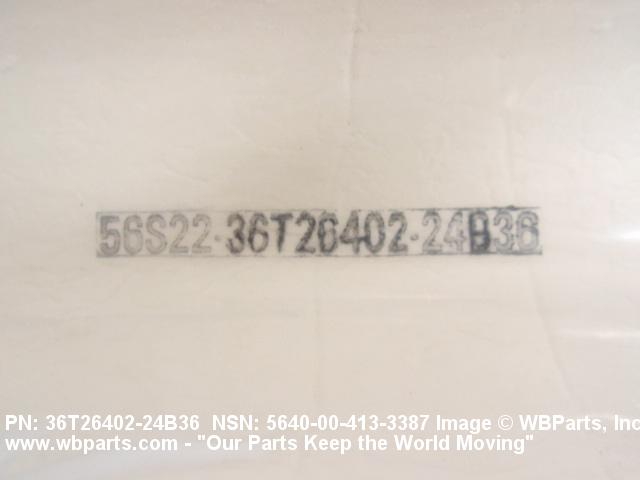

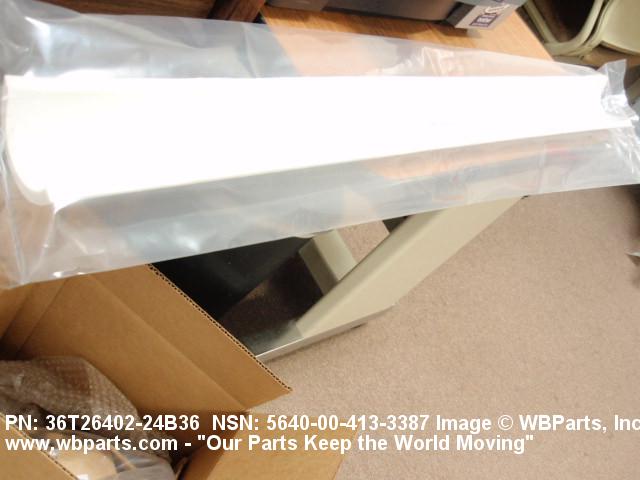

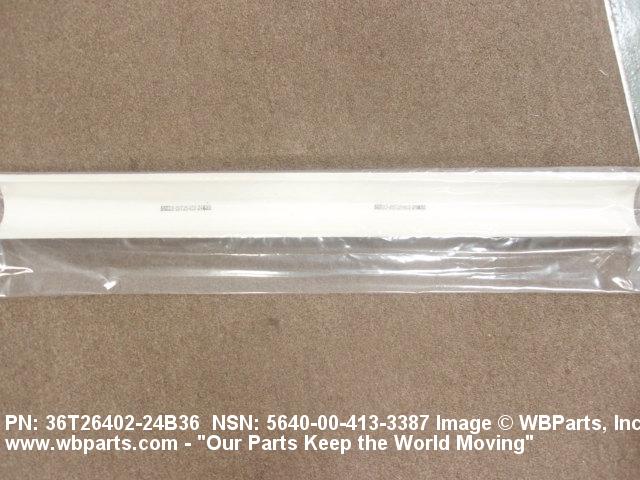

Drawings & Photos | NSN 5640-00-413-3387
Demand History | NSN 5640-00-413-3387
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 36T26402-24B36 | 2022-05-124 | 30 | DIBBS |
| GB100B24B36 | 2022-05-124 | 30 | DIBBS |
| 36T26402-24B36 | 2022-02-54 | 10 | DIBBS |
| GB100B24B36 | 2022-02-54 | 10 | DIBBS |
| 36T26402-24B36 | 2021-07-209 | 5 | DIBBS |
| GB100B24B36 | 2021-07-209 | 5 | DIBBS |
| 36T26402-24B36 | 2019-01-21 | 67 | DIBBS |
| GB100B24B36 | 2019-01-21 | 67 | DIBBS |
| 5640-00-413-3387 | 2017-11-306 | 69 | DIBBS |
| 5640-00-413-3387 | 2016-06-173 | 109 | DIBBS |
| 5640-00-413-3387 | 2015-03-78 | 74 | DIBBS |
| 5640-00-413-3387 | 2013-11-323 | 181 | DIBBS |
| 5640-00-413-3387 | 2012-11-333 | 102 | DIBBS |
| 5640-00-413-3387 | 2012-11-332 | 0 | DIBBS |
| 5640-00-413-3387 | 2012-11-309 | 33 | DIBBS |
| 5640-00-413-3387 | 2012-09-254 | 33 | DIBBS |
| 5640-00-413-3387 | 2012-06-165 | 57 | DIBBS |
| 36T2640224B36 | 2010-04-118 | 10 | US |
| 36T2640224B36 | 2010-04-104 | 10 | United States |
| 36T2640224B36 | 2010-04-104 | 10 | United States |
| GB100B24B36 | 2010-03-69 | 20 | United States |
| 5640-00-413-3387 | 2010-01-26 | 20 | United States |
| 36T2640224B36 | 2010-01-12 | 34 | United States |
| 5640-00-413-3387 | 2010-01-04 | 269 | DIBBS |
| 5640-00-413-3387 | 2009-11-313 | 4 | DIBBS |
| 5640-00-413-3387 | 2009-11-306 | 18 | DIBBS |
| 5640-00-413-3387 | 2009-10-283 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5640-00-413-3387
Related Products | NSN 5640-00-413-3387
Technical Data | NSN 5640-00-413-3387
| Characteristic | Specifications |
|---|---|
| FLEXIBILITY | FLEXIBLE |
| LAYER QUANTITY | 1 |
| MATERIAL | GLASS FIBER |
| FABRICATION METHOD | ANY ACCEPTABLE |
| MATERIAL DENSITY | 3.0 POUNDS PER CUBIC FOOT NOMINAL |
| FLAMMABILITY RATING | INCOMBUSTIBLE |
| SURFACE TREATMENT | SILICONE RESIN |
| OUTER COVERING ENVIRONMENTAL PROTECTION | MILDEW RESISTANT |
| TEMP RATING | -184.0 DEG CELSIUS MINIMUM AND 482.0 DEG CELSIUS MAXIMUM |
| INSULATION THICKNESS | 0.375 INCHES NOMINAL |
| INSIDE DIAMETER | 2.500 INCHES NOMINAL |
| LENGTH | 36.000 INCHES NOMINAL |
| DESIGN FORM | SPLIT ROUND |
| MANUFACTURERS CODE | 78741 |
| DESIGN CONTROL REFERENCE | 36T26402-24B36 |
Restrictions/Controls & Freight Information | NSN 5640-00-413-3387
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 561 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5640-00-413-3387
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | PF | FIGHTERAIRCRAFT(F14) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
