NSN 5365-00-899-9280 RZA108268, RZA10826-8, 00-899-9280
Product Details | SERRATED LOCK RING

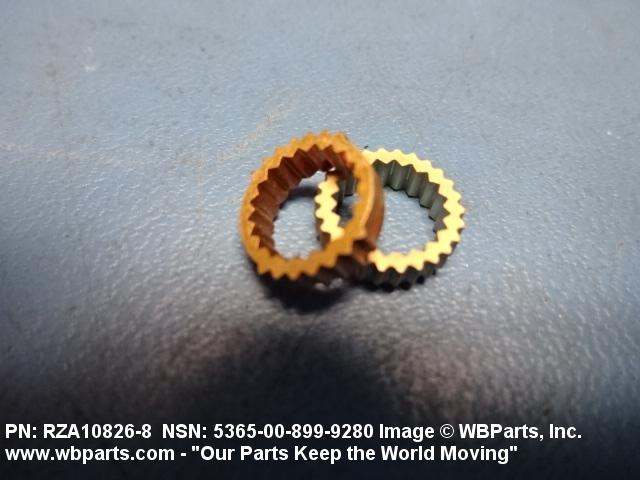

5365-00-899-9280 A locking device which is serrated on the inside and outside diameters. It may have outer serrations omitted on one or two sides for close edge installation. The inner serrations engage the mating serrations of bolts, inserts, nuts, studs or similar items to be locked in place. The outer serrations broach their way into parent material when driven or pressed into place.
Part Alternates: RZA108268, RZA10826-8, 5365-00-899-9280, 00-899-9280, 5365008999280, 008999280
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-899-9280 | 16013 ( RING, LOCK, SERRATED ) |

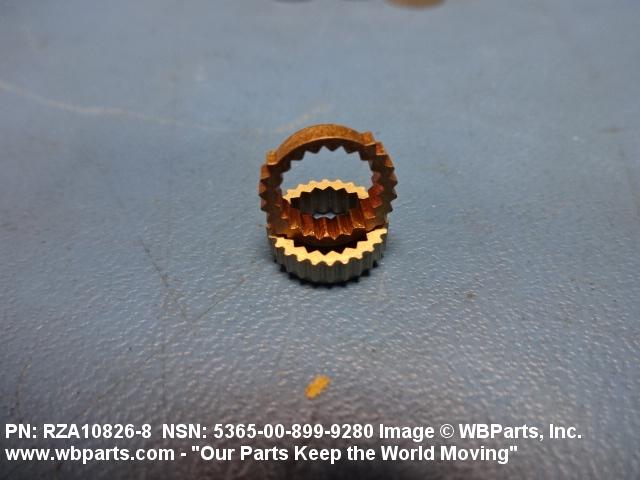

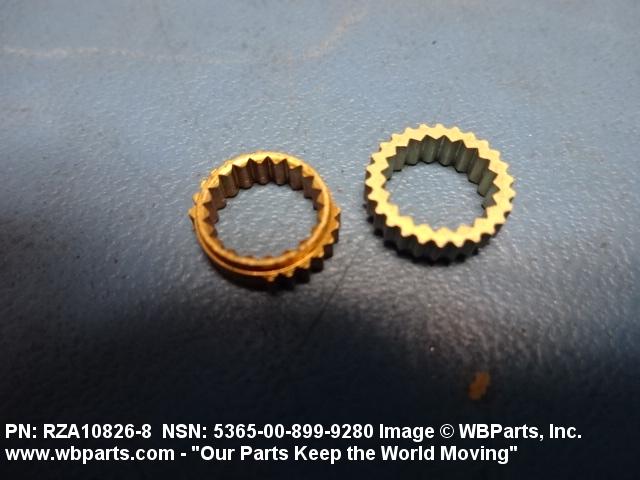

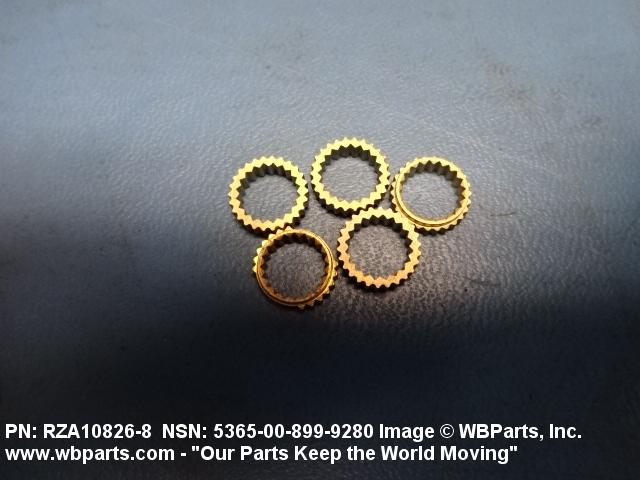

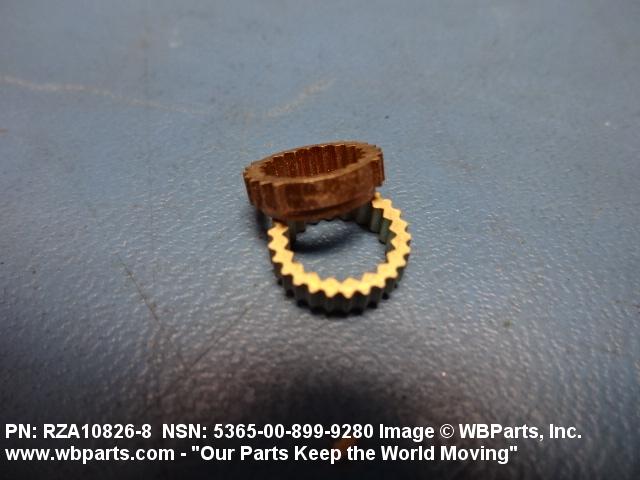

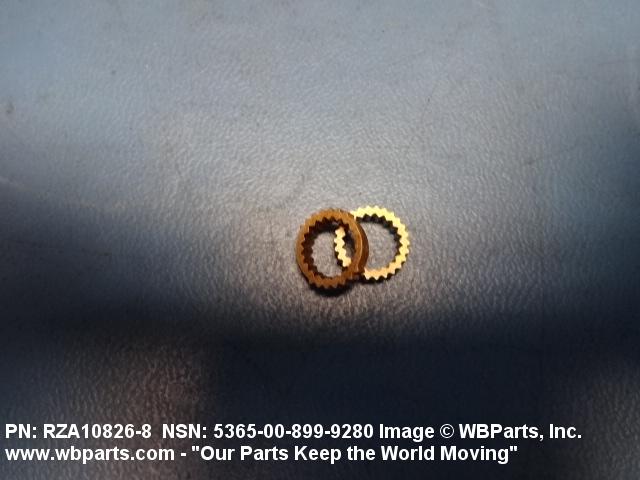

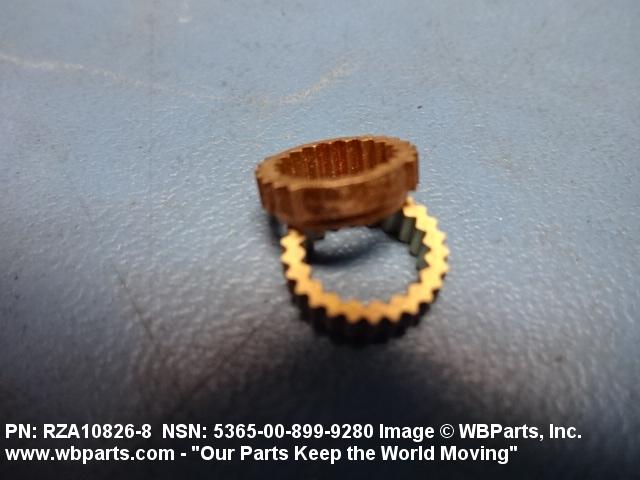

Drawings & Photos | NSN 5365-00-899-9280
Demand History | NSN 5365-00-899-9280
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| RZA108268 | 2024-07-207 | 50 | US |
| RZA108268 | 2024-07-190 | 50 | US |
| 5365-00-899-9280 | 2024-06-176 | 50 | United States |
| RZA10826-8 | 2023-03-75 | 5 | DIBBS |
| RZA108268 | 2023-02-54 | 50 | United States |
| RZA10826-8 | 2022-06-159 | 5 | DIBBS |
| RZA10826-8 | 2020-06-171 | 5 | DIBBS |
| RZA10826-8 | 2020-06-160 | 5 | DIBBS |
| RZA10826-8 | 2019-01-23 | 1 | DIBBS |
| 5365-00-899-9280 | 2016-08-225 | 5 | United States |
| 5365-00-899-9280 | 2016-07-196 | 5 | DIBBS |
| 5365-00-899-9280 | 2016-06-173 | 5 | DIBBS |
| 5365-00-899-9280 | 2016-05-147 | 5 | DIBBS |
| 5365-00-899-9280 | 2016-05-139 | 5 | DIBBS |
| 5365-00-899-9280 | 2013-12-360 | 3 | DIBBS |
Cross Reference | NSN 5365-00-899-9280
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RZA10826-8 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-899-9280
Related Products | NSN 5365-00-899-9280
Technical Data | NSN 5365-00-899-9280
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,FED QQ-S-633 TYPE C1117,COND |
| SURFACE TREATMENT | CADMIUM PLATED |

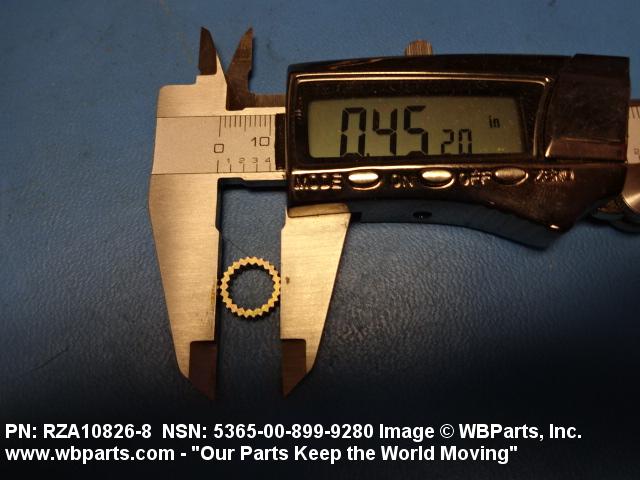

| OVERALL OUTSIDE DIAMETER | 0.452 INCHES NOMINAL |

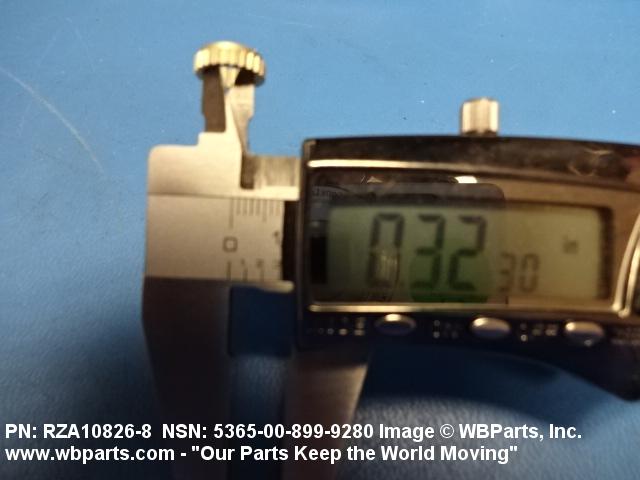

| INSIDE DIAMETER | 0.323 INCHES NOMINAL |

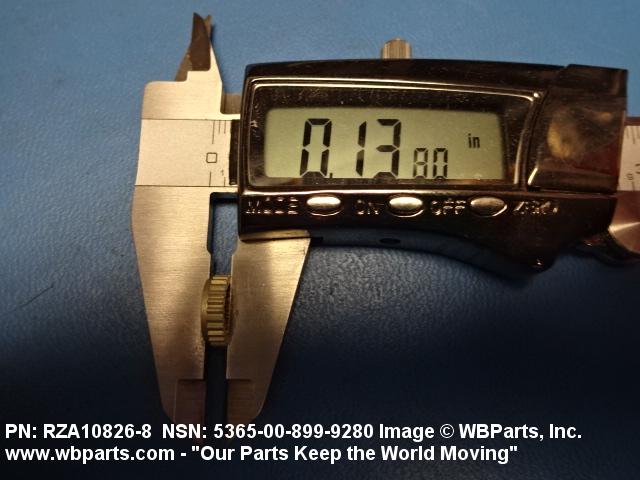

| OVERALL HEIGHT | 0.138 INCHES NOMINAL |

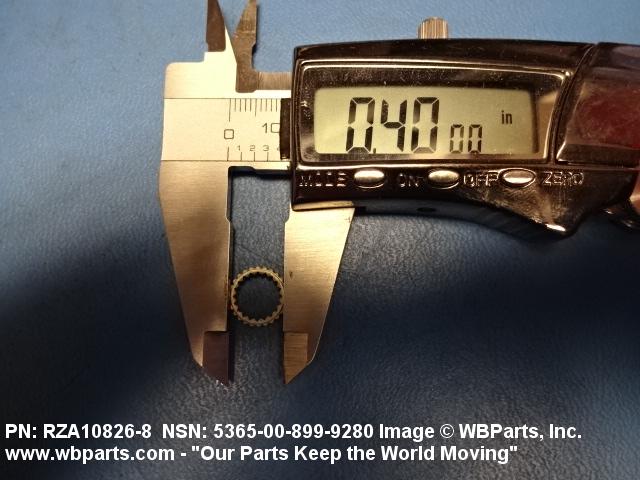

| PILOT DIAMETER | 0.400 INCHES NOMINAL |
| OUTER SERRATION QUANTITY | 26 |
| INNER SERRATION QUANTITY | 20 |
| MANUFACTURERS CODE | 83324 |
| DESIGN CONTROL REFERENCE | RZA10826-8 |
Restrictions/Controls & Freight Information | NSN 5365-00-899-9280
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-899-9280
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
