NSN 5365-01-032-7233 MS51990102P, MS51990-102P, AA59558
Product Details | SERRATED LOCK RING
5365-01-032-7233 A locking device which is serrated on the inside and outside diameters. It may have outer serrations omitted on one or two sides for close edge installation. The inner serrations engage the mating serrations of bolts, inserts, nuts, studs or similar items to be locked in place. The outer serrations broach their way into parent material when driven or pressed into place.
Part Alternates: MS51990102P, MS51990-102P, AA59558, A-A-59558, AA59558101, AA59558-101, RLRR16SB5, 5365-01-032-7233, 01-032-7233, 5365010327233, 010327233
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 DEC 1976 | 01-032-7233 | 16013 ( RING, LOCK, SERRATED ) |

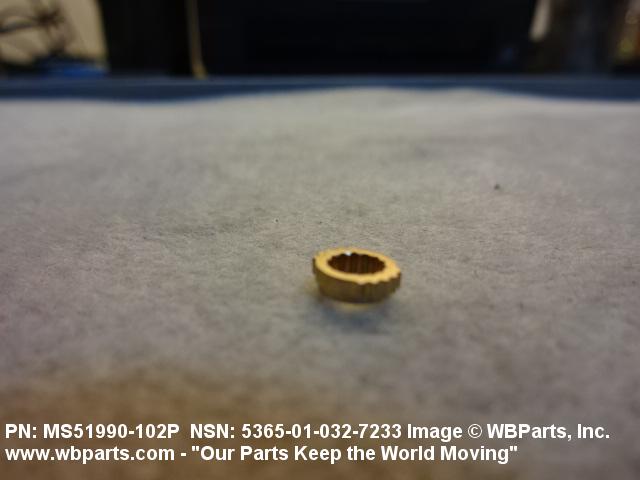

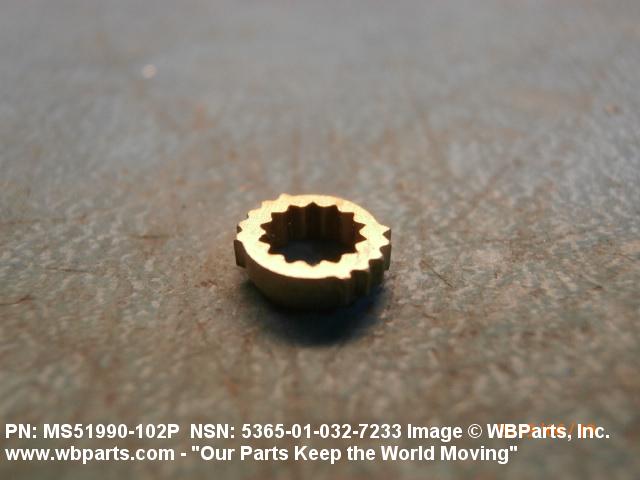

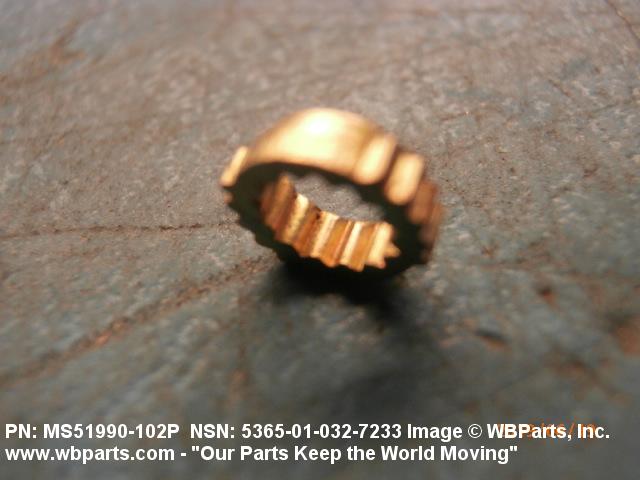

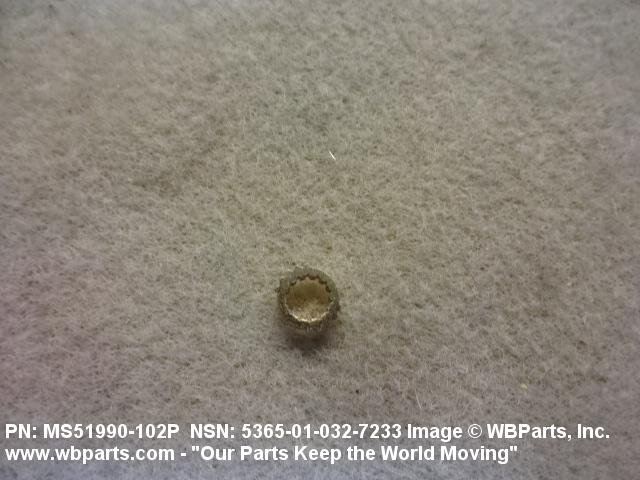

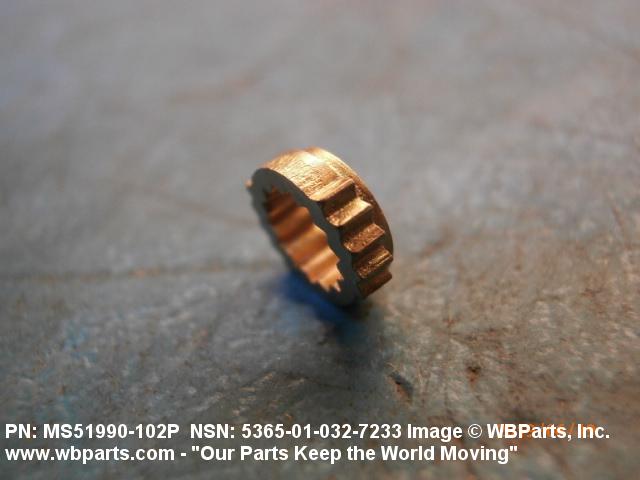

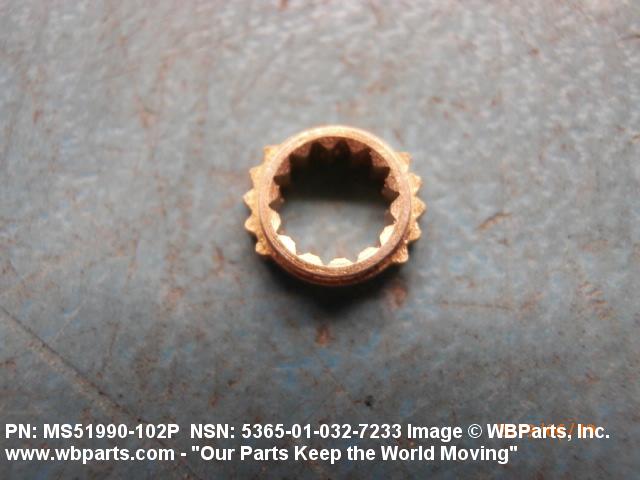

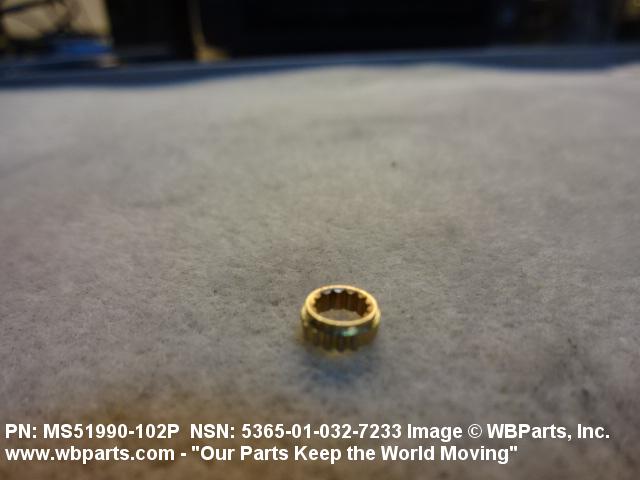

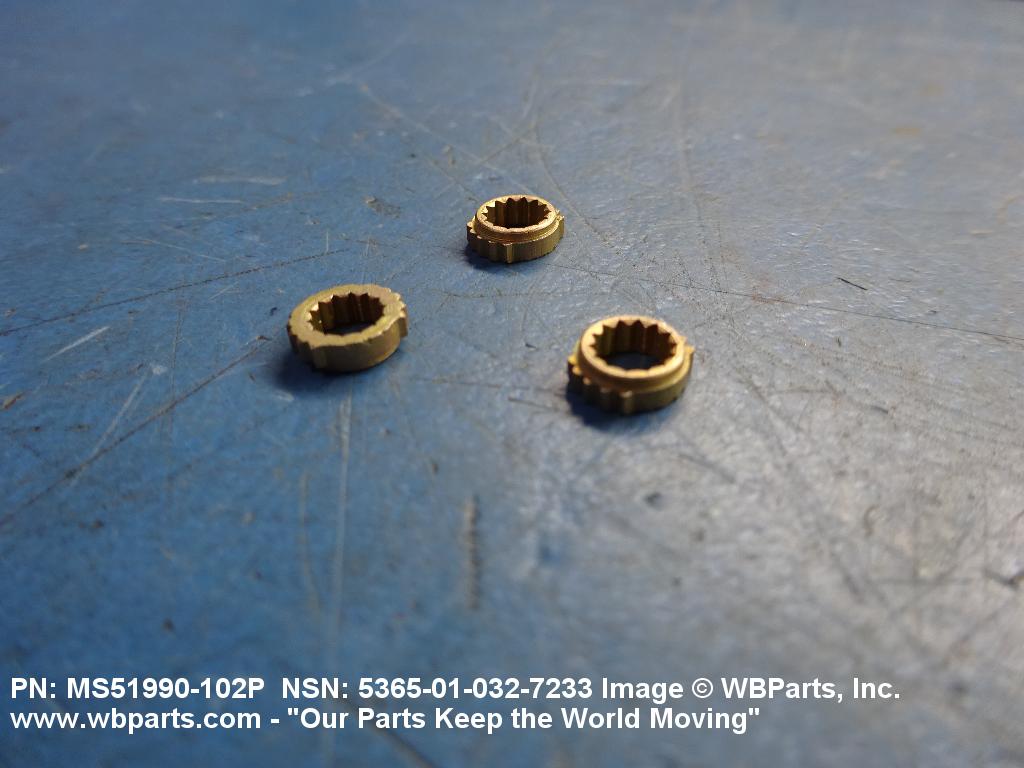

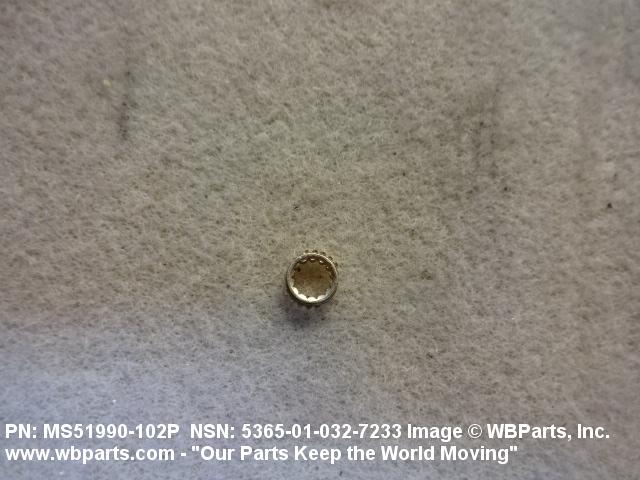

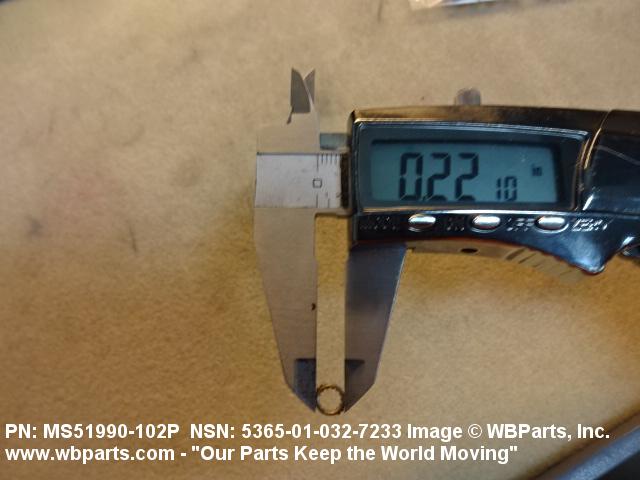

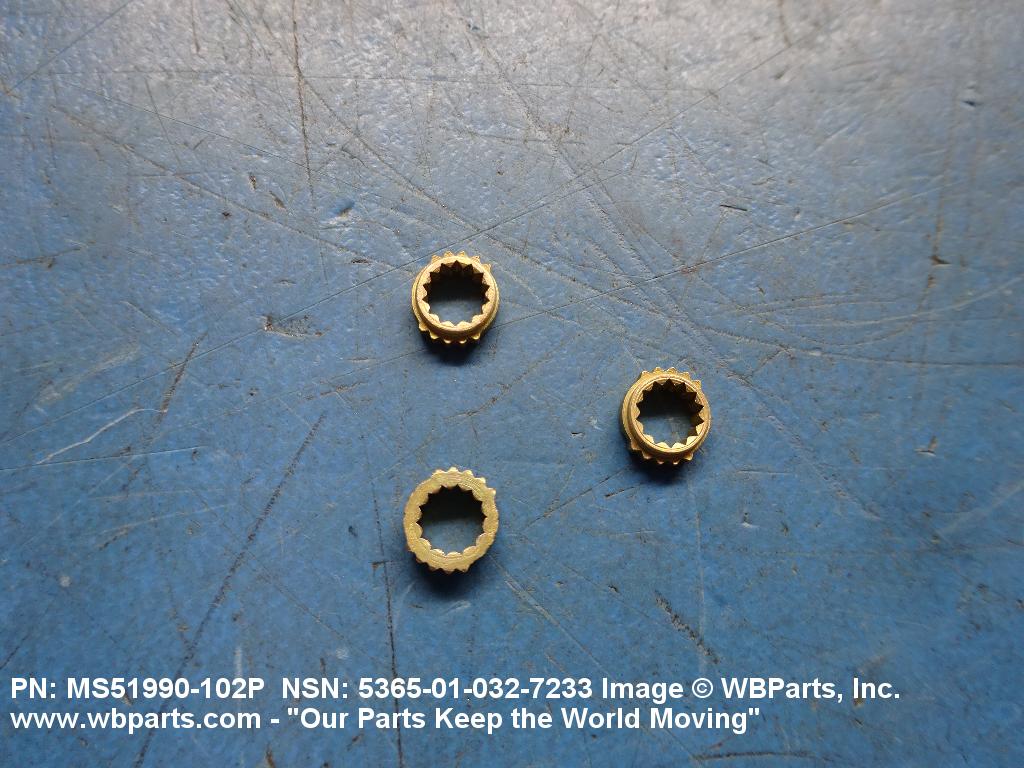

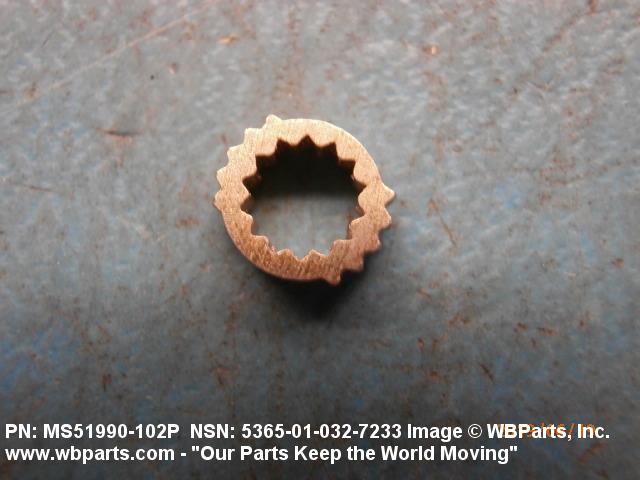

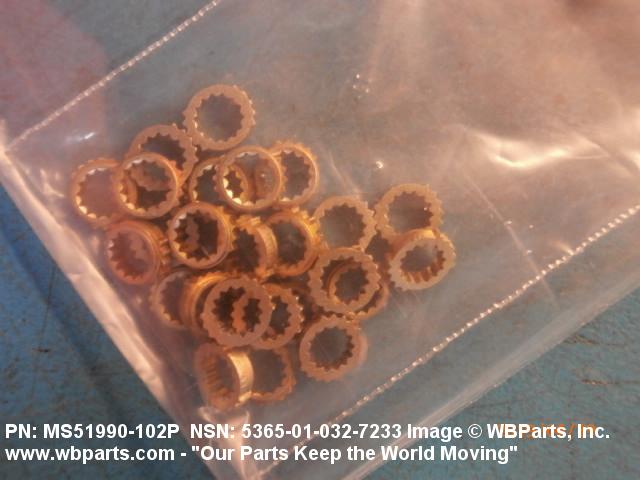

Drawings & Photos | NSN 5365-01-032-7233
Demand History | NSN 5365-01-032-7233
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS51990102P | 2023-10-289 | 100 | United States |
| MS51990102P | 2022-07-193 | 35 | United States |
| RLRR16SB5 | 2020-03-87 | 99 | DIBBS |
| RLRR16SB5 | 2020-03-79 | 99 | DIBBS |
| MS51990102P | 2019-07-204 | 100 | United States |
| MS51990102P | 2019-05-134 | 25 | United States |
| 5365-01-032-7233 | 2018-10-283 | 99 | DIBBS |
| 5365-01-032-7233 | 2018-03-81 | 69 | DIBBS |
| MS51990102P | 2018-03-67 | 65 | United States |
| 5365-01-032-7233 | 2015-08-243 | 334 | DIBBS |
| MS51990102P | 2013-10-291 | 100 | United States |
| MS51990102P | 2013-10-276 | 100 | United States |
| MS51990102P | 2010-08-216 | 310 | US |
| MS51990102P | 2010-04-119 | 780 | US |
Cross Reference | NSN 5365-01-032-7233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-A-59558 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AA59558-101 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| MS51990-102P | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RLRR16SB5 | 83324 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-01-032-7233
Related Products | NSN 5365-01-032-7233
Technical Data | NSN 5365-01-032-7233
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, QQ-S-637, COMP 1117 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |

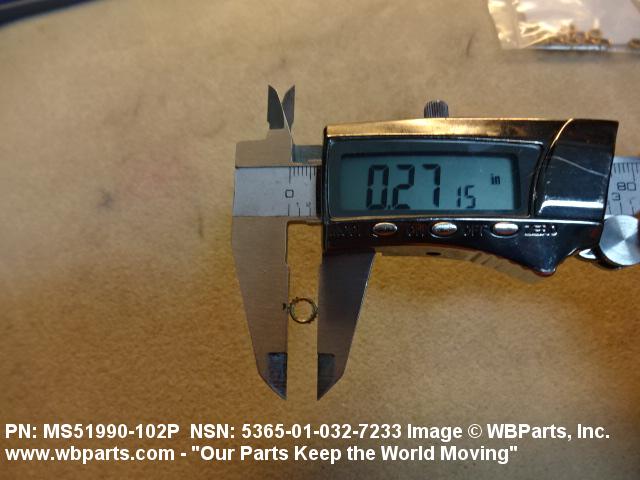

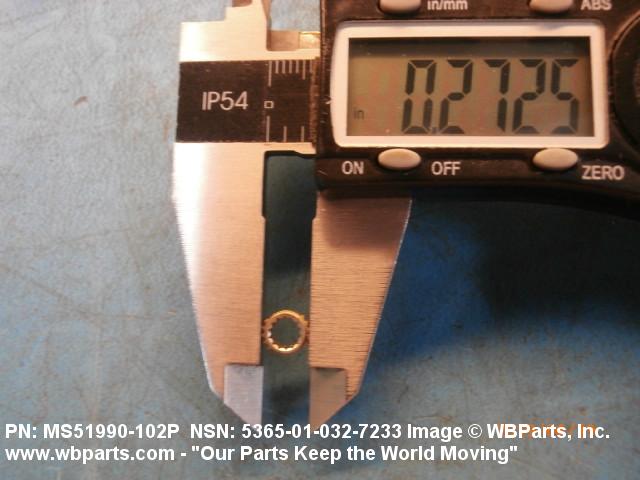

| OVERALL OUTSIDE DIAMETER | 0.269 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |

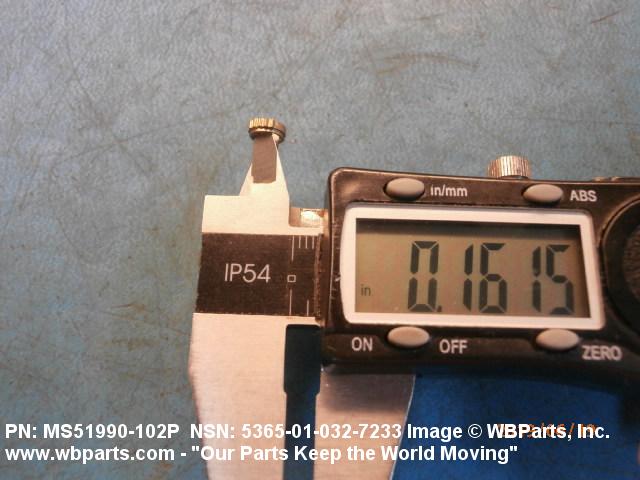

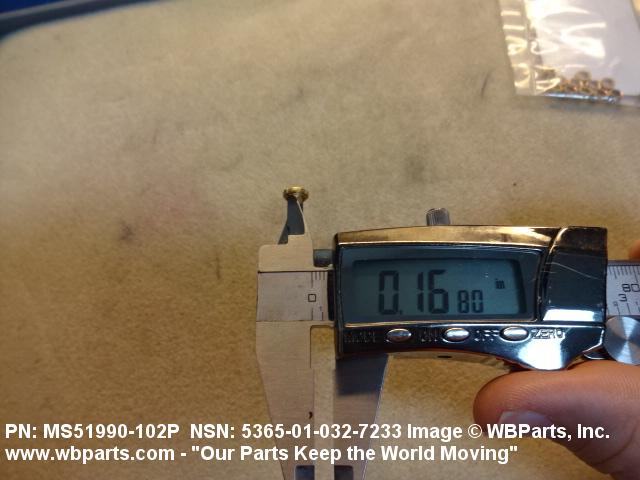

| INSIDE DIAMETER | 0.156 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |

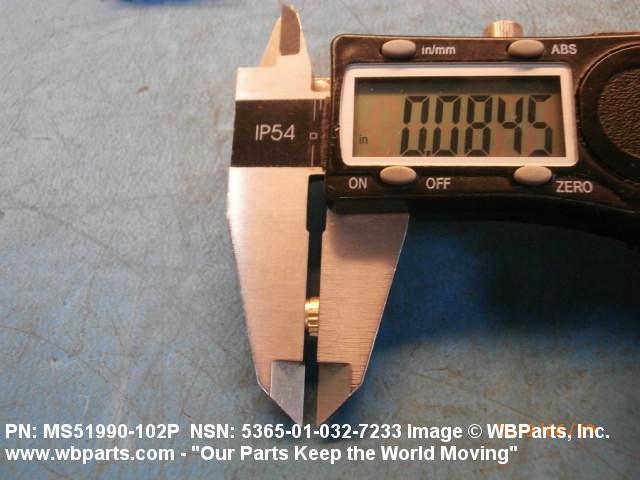

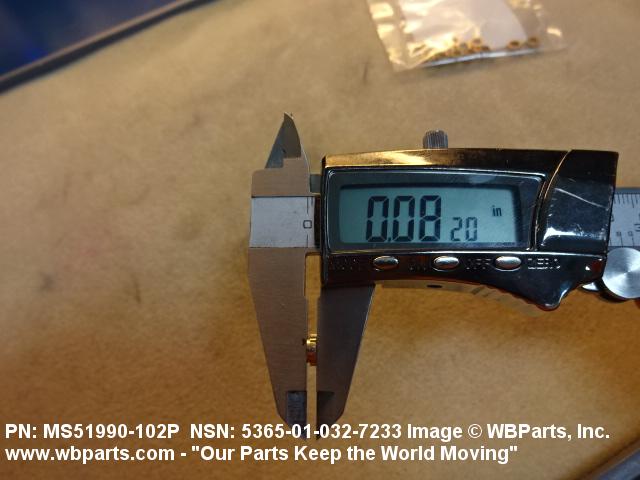

| OVERALL HEIGHT | 0.079 INCHES MINIMUM AND 0.089 INCHES MAXIMUM |

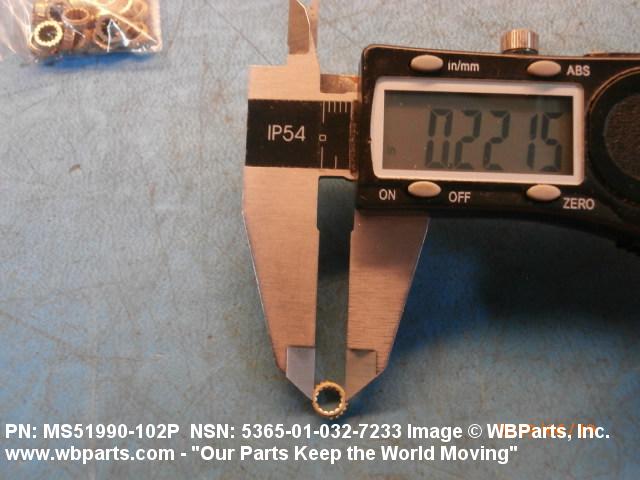

| PILOT DIAMETER | 0.218 INCHES MINIMUM AND 0.228 INCHES MAXIMUM |
| OUTER SERRATION QUANTITY | 20 |
| INNER SERRATION QUANTITY | 14 |
| SIDE OUTER SERRATIONS OMITTED FOR CLOSE EDGE INSTALLATION | TWO SIDES |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59558 |
| MANUFACTURERS CODE | 58536 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AA59558-101 |
Restrictions/Controls & Freight Information | NSN 5365-01-032-7233
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
