NSN 5365-00-833-2691 591570, 00-833-2691, 008332691
Product Details | SERRATED LOCK RING

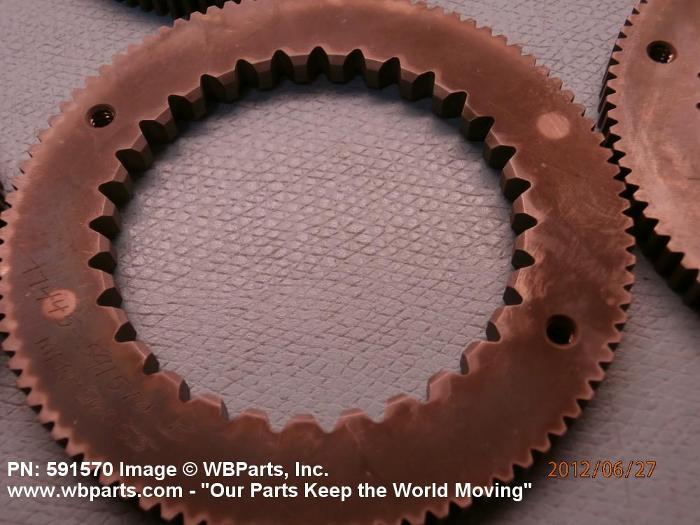

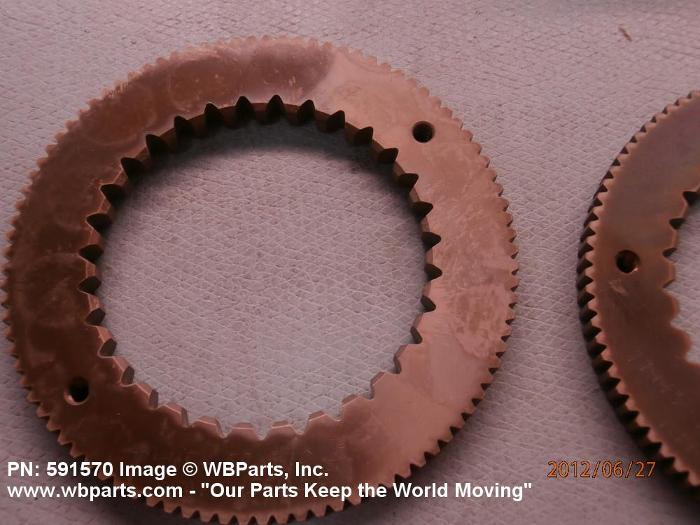

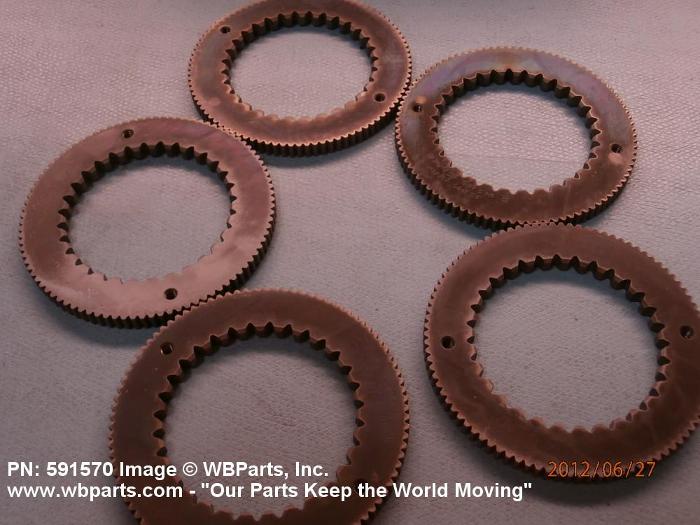

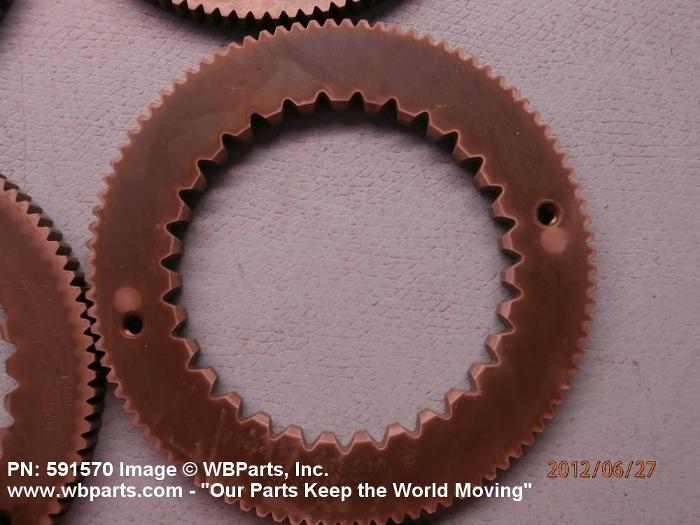

5365-00-833-2691 A locking device which is serrated on the inside and outside diameters. It may have outer serrations omitted on one or two sides for close edge installation. The inner serrations engage the mating serrations of bolts, inserts, nuts, studs or similar items to be locked in place. The outer serrations broach their way into parent material when driven or pressed into place.
Part Alternates: 591570, 5365-00-833-2691, 00-833-2691, 5365008332691, 008332691
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 SEP 1967 | 00-833-2691 | 16013 ( RING, LOCK, SERRATED ) |

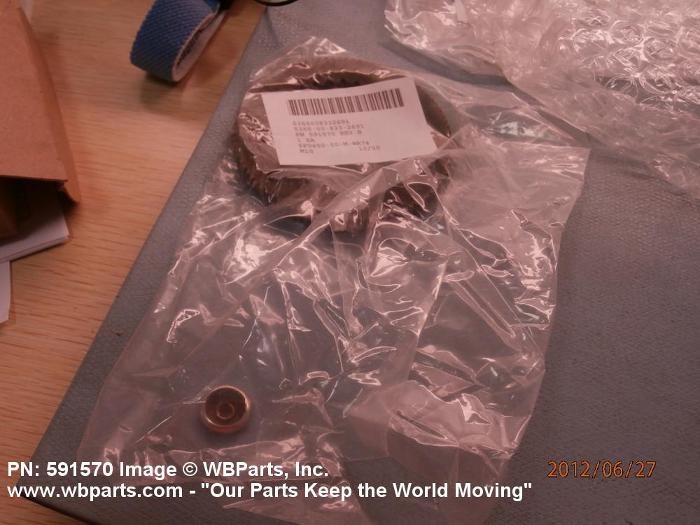

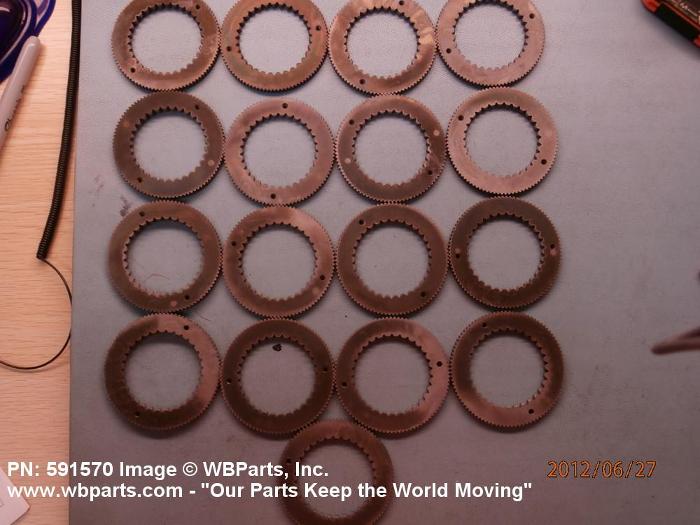

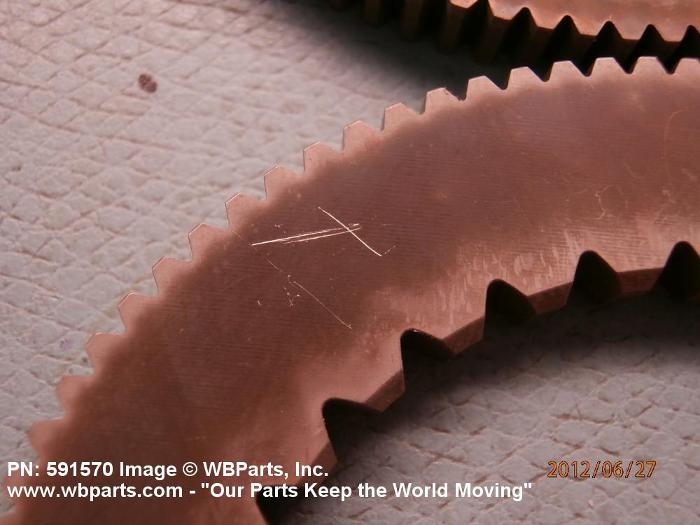

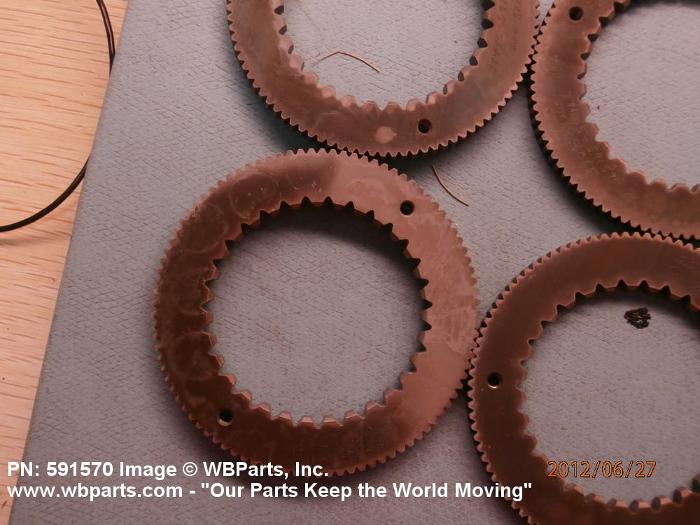

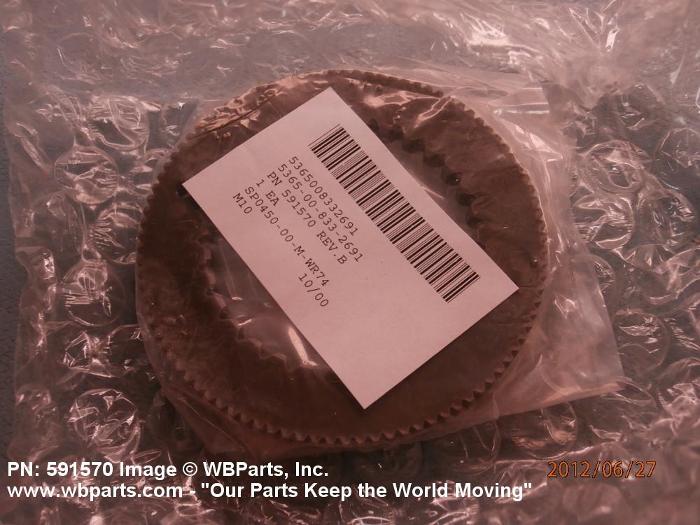

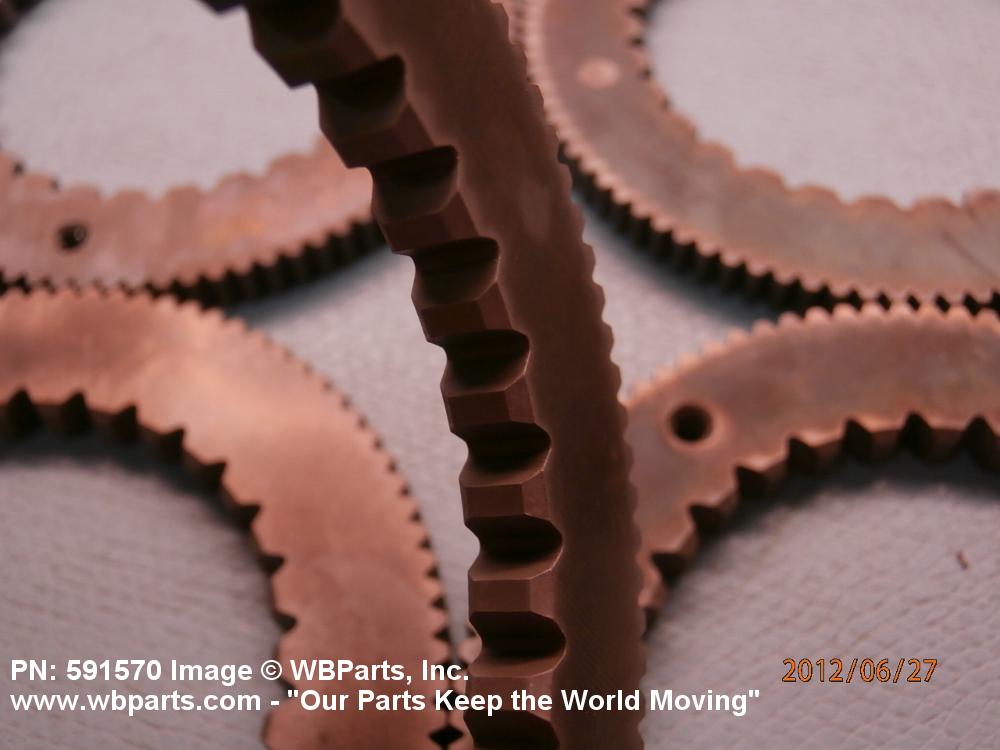

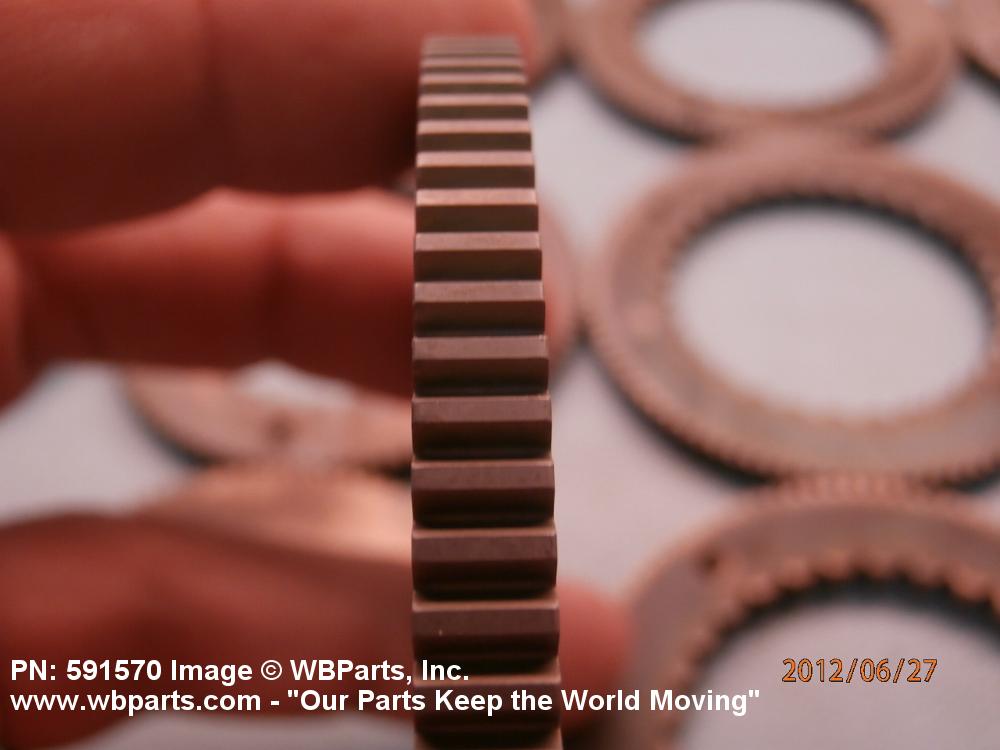

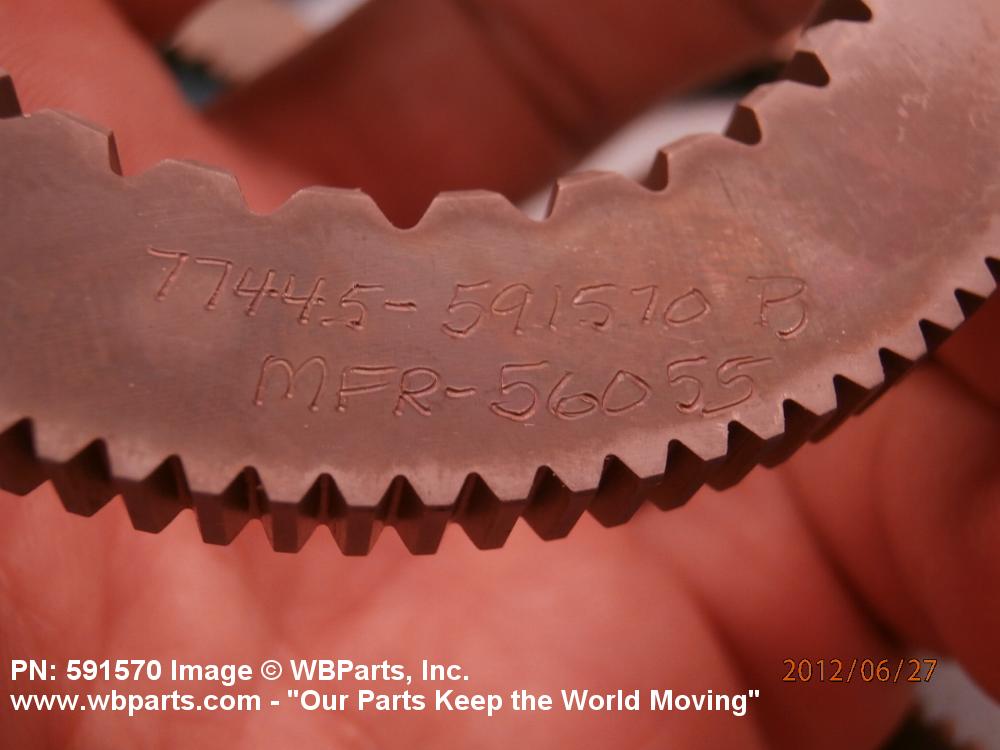

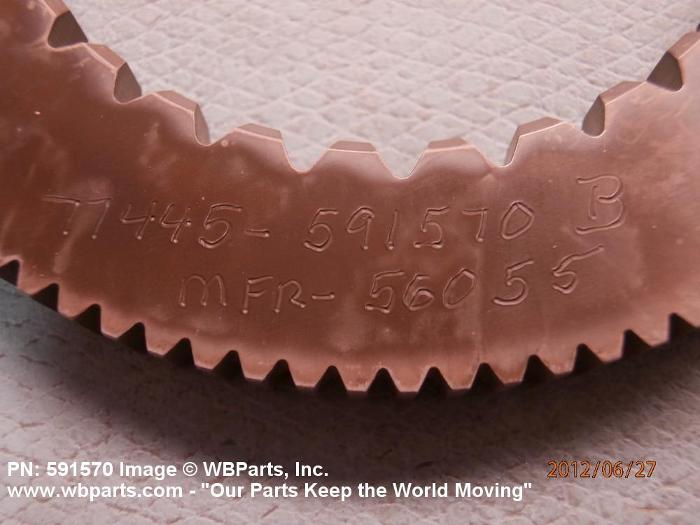

Drawings & Photos | NSN 5365-00-833-2691
Demand History | NSN 5365-00-833-2691
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5365-00-833-2691 | 2013-01-22 | 30 | United States |
| 5365-00-833-2691 | 2012-07-213 | 47 | DIBBS |
| 5365-00-833-2691 | 2012-07-187 | 47 | DIBBS |
| 5365-00-833-2691 | 2012-06-171 | 17 | United States |
| 5365-00-833-2691 | 2012-04-93 | 17 | DIBBS |
| 5365-00-833-2691 | 2012-01-13 | 51 | DIBBS |
| 5365-00-833-2691 | 2011-03-74 | 67 | DIBBS |
| 5365-00-833-2691 | 2011-01-13 | 5 | DIBBS |
| 5365-00-833-2691 | 2010-05-141 | 69 | DIBBS |
| 5365-00-833-2691 | 2010-03-68 | 32 | DIBBS |
| 5365-00-833-2691 | 2009-11-321 | 38 | DIBBS |
Cross Reference | NSN 5365-00-833-2691
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5365-00-833-2691
Related Products | NSN 5365-00-833-2691
Technical Data | NSN 5365-00-833-2691
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 6322 OR STEEL, AMS 6323 |
| OVERALL OUTSIDE DIAMETER | 2.925 INCHES MINIMUM AND 2.928 INCHES MAXIMUM |
| INSIDE DIAMETER | 1.875 INCHES MINIMUM AND 1.880 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.198 INCHES MINIMUM AND 0.202 INCHES MAXIMUM |
| PILOT DIAMETER | 0.138 INCHES MINIMUM AND 0.168 INCHES MAXIMUM |
| OUTER SERRATION QUANTITY | 93 |
| INNER SERRATION QUANTITY | 31 |
| SIDE OUTER SERRATIONS OMITTED FOR CLOSE EDGE INSTALLATION | ONE SIDE |

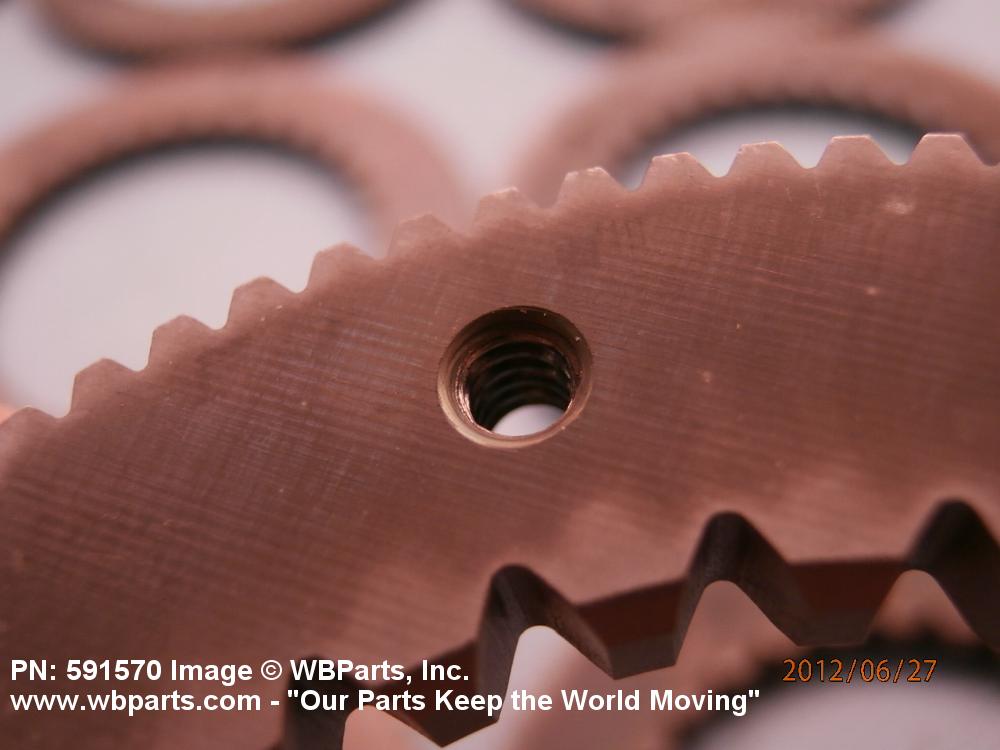

| SPECIAL FEATURES | 2 THREADED PILOT HOLES 0.138-32 UNC-2B,BOTH 1.226 IN. GROM CENTER |
Restrictions/Controls & Freight Information | NSN 5365-00-833-2691
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-833-2691
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
