NSN 5365-00-203-4338 93D46, 00-203-4338, 002034338
Product Details | MACHINE THREAD PLUG
5365-00-203-4338 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 93D46, 5365-00-203-4338, 00-203-4338, 5365002034338, 002034338
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-203-4338 | 03801 ( PLUG, MACHINE THREAD ) |
Drawings & Photos | NSN 5365-00-203-4338
Cross Reference | NSN 5365-00-203-4338
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 93D46 | 0AHP5 | CURTISS-WRIGHT CONTROLS, INC DIV FLIGHT SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-203-4338
Technical Data | NSN 5365-00-203-4338
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 4120 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

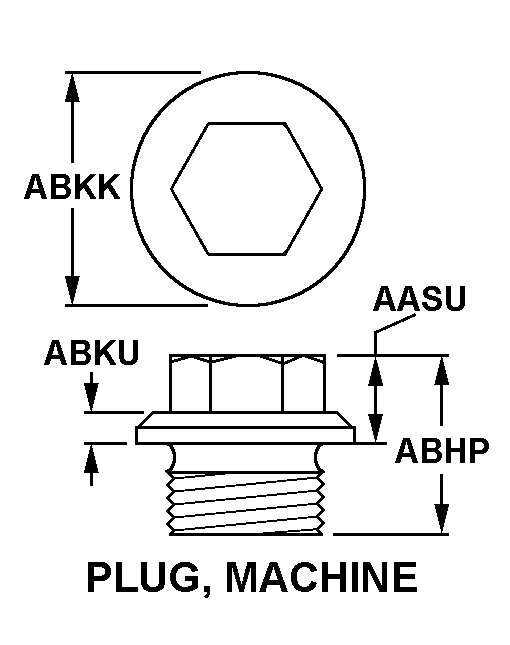

| STYLE DESIGNATOR | C24 PLUG, MACHINE |
| HEAD HEIGHT | 0.400 INCHES NOMINAL |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| FLANGE DIAMETER | 1.293 INCHES MINIMUM AND 1.318 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.120 INCHES NOMINAL |

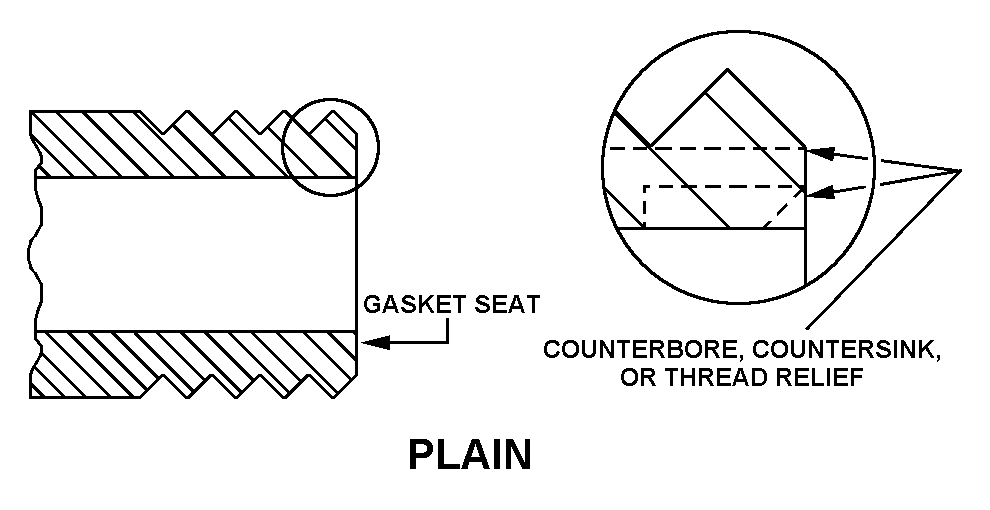

| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UN EXTERNAL |
| NOMINAL THREAD SIZE | 1.000 INCHES EXTERNAL |
| THREAD QUANTITY PER INCH | 16 EXTERNAL |
| THREAD PITCH IN MILLIMETERS | 24.2 NOMINAL EXTERNAL |
| THREAD PITCH DIAMETERS | 0.9562 TO 0.9589 INCHES EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.341 INCHES NOMINAL EXTERNAL |
| BODY CORE DIAMETER | 0.734 INCHES NOMINAL |
| CORE DEPTH | 0.470 INCHES MINIMUM AND 0.530 INCHES MAXIMUM |
| (NON-CORE DATA) SAFETY WIRE HOLE QUANTITY | 1 |
| MANUFACTURERS CODE | 0AHP5 |
| DESIGN CONTROL REFERENCE | 93D46 |
Restrictions/Controls & Freight Information | NSN 5365-00-203-4338
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5365-00-203-4338
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
