NSN 5365-00-203-4339 60025, 00-203-4339, 002034339
Product Details | MACHINE THREAD PLUG
5365-00-203-4339 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.
Part Alternates: 60025, 5365-00-203-4339, 00-203-4339, 5365002034339, 002034339
Hardware and Abrasives | Bushings, Rings, Shims, and Spacers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-203-4339 | 03801 ( PLUG, MACHINE THREAD ) |

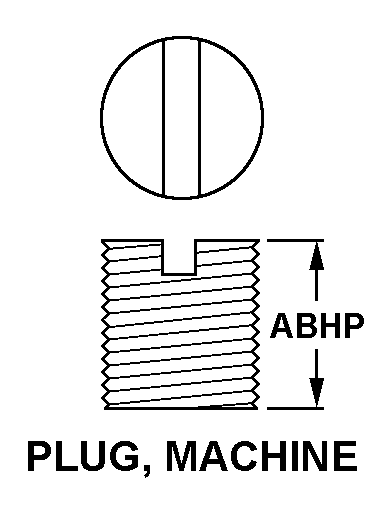

Drawings & Photos | NSN 5365-00-203-4339
Cross Reference | NSN 5365-00-203-4339
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60025 | 80254 | TEXTRON LYCOMING INC WILLIAMSPORT PLANT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5365-00-203-4339
Technical Data | NSN 5365-00-203-4339
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8615 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | C5 PLUG, MACHINE |
| OVERALL LENGTH | 0.660 INCHES NOMINAL |
| CONNECTION STYLE | J1 PLAIN |
| THREAD SERIES DESIGNATOR | UNF EXTERNAL |
| NOMINAL THREAD SIZE | 0.562 INCHES EXTERNAL |
| THREAD CLASS | 3A EXTERNAL |
| THREAD DIRECTION | RIGHT-HAND EXTERNAL |
| THREAD LENGTH | 0.660 INCHES NOMINAL EXTERNAL |
| BODY CORE DIAMETER | 0.325 INCHES NOMINAL |
| CORE DEPTH | 0.390 INCHES NOMINAL |
| MANUFACTURERS CODE | 80254 |
| DESIGN CONTROL REFERENCE | 60025 |
Restrictions/Controls & Freight Information | NSN 5365-00-203-4339
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093750 | BUNGS/PLUGS NOI IN PKGS |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
