NSN 5365-00-938-4050 PN8763494, 8763494, 10510905

Product Details | MACHINE THREAD PLUG

5365-00-938-4050 An item with a cylindrical shaped body having external threads other than pipe or hose series. It is desinged to mate into a preformed threaded component for the purpose of plugging a hole during equipment operation. It may have a head and/or internal drive and may contain a bleeder hole. See also PLUG, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL. Excludes PLUG, TUBE FITTING, THREADED.

Part Alternates: PN8763494, 8763494, 10510905, 10-510905 , 17284 , 00044 , 00085311018340, 5365-00-938-4050, 00-938-4050, 5365009384050, 009384050

Hardware and Abrasives | Bushings, Rings, Shims, and Spacers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	15 MAR 1967	00-938-4050	03801 ( PLUG, MACHINE THREAD )

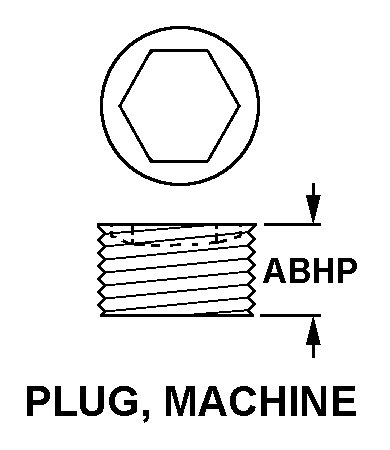

Drawings & Photos | NSN 5365-00-938-4050

Part Number	Request Date	QTY	Origin
5365-00-938-4050	2019-01-28	1	DIBBS-RFPs
5365-00-938-4050	2015-11-315	83	DIBBS
5365-00-938-4050	2015-10-279	83	DIBBS
5365-00-938-4050	2015-02-35	650	DIBBS
5365-00-938-4050	2015-01-11	357	DIBBS
5365-00-938-4050	2014-11-308	185	DIBBS
5365-00-938-4050	2014-03-90	1	DIBBS-RFPs
00044	2011-04-102	30	US
5365-00-938-4050	2010-08-222	301	DIBBS
5365-00-938-4050	2008-11-315	3838	DIBBS
5365-00-938-4050	2008-09-249	3838	DIBBS
5365-00-938-4050	2008-06-171	2103	DIBBS
5365-00-938-4050	2008-04-98	4298	DIBBS
5365-00-938-4050	2008-03-87	2839	DIBBS
5365-00-938-4050	2008-02-53	760	DIBBS

Cross Reference | NSN 5365-00-938-4050

Part Number	Cage Code	Manufacturer
5365009384050	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
8763494	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
PN8763494	8346B	SERVICIOS Y PROYECTOS AVANZADOS S.A

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5365-00-938-4050

Compare

Related Products | NSN 5365-00-938-4050

5365-00-985-3698, 5365-01-007-2447, 2510-01-605-5203, 2510-01-605-7811, 2510-01-605-9155

Technical Data | NSN 5365-00-938-4050

Characteristic	Specifications
MATERIAL	IRON AND STEEL OVERALL
STYLE DESIGNATOR	C16 PLUG, MACHINE
OVERALL LENGTH	0.812 INCHES NOMINAL
CONNECTION STYLE	J1 PLAIN
THREAD SERIES DESIGNATOR	UN EXTERNAL
NOMINAL THREAD SIZE	2.250 INCHES EXTERNAL
THREAD QUANTITY PER INCH	16 EXTERNAL
THREAD CLASS	2A EXTERNAL
THREAD LENGTH	0.812 INCHES NOMINAL EXTERNAL
SPECIAL FEATURES	2350-01-219-7577

Restrictions/Controls & Freight Information | NSN 5365-00-938-4050

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	194120	WASHERS/GASKETS/PCKG DVCS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5365-00-938-4050

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
