Product Details | WEAPON SYSTEM RESILIENT MOUNT

5342-01-534-2551 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for a weapon system component to be isolated. Excludes MOUNT, RESILIENT, UTILITY; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dash-pots, grommets, and shock pads.

Part Alternates: 5120200028, 512-02-00028, 64875K16-160 LB, 64875K16160LB, 5342-01-534-2551, 01-534-2551, 5342015342551, 015342551

Hardware and Abrasives | Hardware, Weapon System

Supply Group (FSG) NSN Assign. NIIN
53 14 OCT 2005 01-534-2551

Drawings & Photos | NSN 5342-01-534-2551


Demand History | NSN 5342-01-534-2551

Part Number Request Date QTY Origin
64875K16-160 LB 2019-11-317 311 DIBBS
5342-01-534-2551 2009-11-307 195 DIBBS
5342-01-534-2551 2008-12-364 140 DIBBS

Cross Reference | NSN 5342-01-534-2551

Part Number Cage Code Manufacturer
512-02-00028 98042 MARINETTE MARINE CORPORATION
64875K16-160 LB 39428 MCMASTER-CARR SUPPLY COMPANY
64875K16-160 LB 98042 MARINETTE MARINE CORPORATION

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5342-01-534-2551

Technical Data | NSN 5342-01-534-2551

Characteristic Specifications

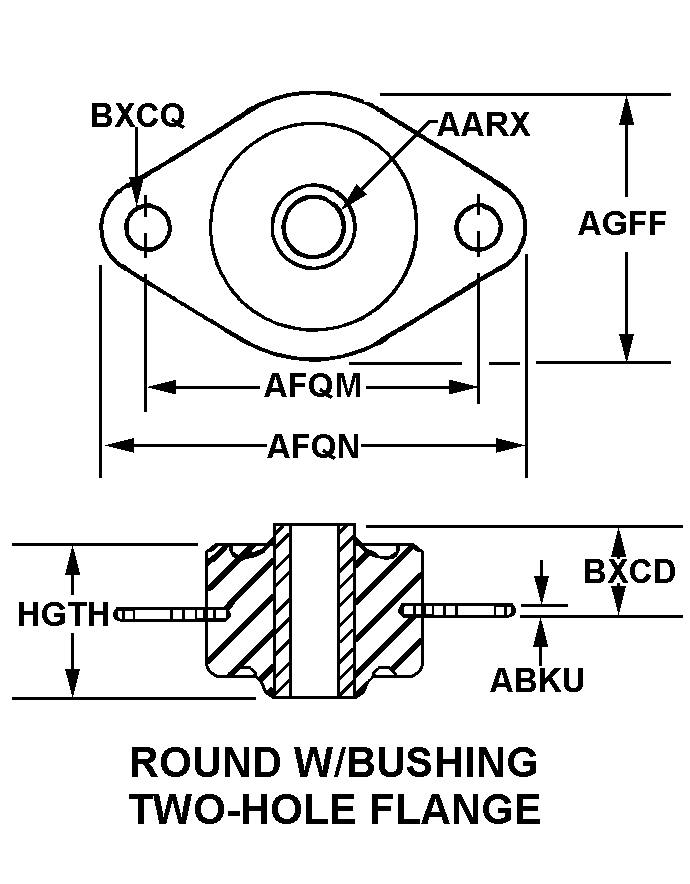

STYLE DESIGNATOR 30 ROUND W/BUSHING TWO-HOLE FLANGE
DISTANCE BETWEEN MOUNTING HOLE CENTERS 2.370 INCHES NOMINAL
FLANGE LENGTH 3.130 INCHES NOMINAL
HEIGHT 1.000 INCHES NOMINAL
SPECIAL FEATURES -25 TO +180 DEG F TEMP RANGE HAS 6 MOUNTS INTERLOCKING STEEL DESIGN TO KEEP MOUNT INTACT IN CASE OF RUBBER FAILURE
END ITEM IDENTIFICATION MISC PARTS AUXILIARY SYSTEMS INLS
(NON-CORE DATA) RESILIENT MEMBER MATERIAL RUBBER
